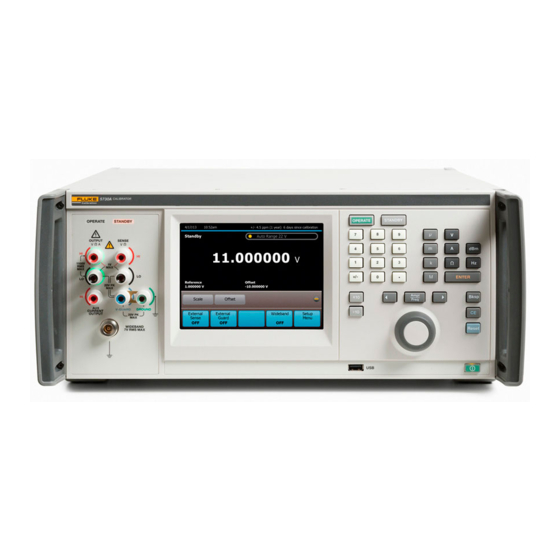

Fluke 5730A Getting Started Manual

Multifunction calibrator
Hide thumbs Also See for 5730A:
Table of Contents

Advertisement

Quick Links

5730A
Multifunction Calibrator
Getting Started Manual
PN 4290571
August 2013 Rev. 1, 6/15
© 2013-2015 Fluke Corporation. All rights reserved. Specifications are subject to change without notice.
All product names are trademarks of their respective companies.

Advertisement

Table of Contents
loading

Related Manuals for Fluke 5730A

Summary of Contents for Fluke 5730A

  • Page 1 5730A Multifunction Calibrator Getting Started Manual PN 4290571 August 2013 Rev. 1, 6/15 © 2013-2015 Fluke Corporation. All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies.
  • Page 2 Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers only but have no authority to extend a greater or different warranty on behalf of Fluke. Warranty support is available only if product is purchased through a Fluke authorized sales outlet or Buyer has paid the applicable international price.
  • Page 3 OPERATOR SAFETY SUMMARY WARNING HIGH VOLTAGE is used in the operation of this equipment LETHAL VOLTAGE may be present on the terminals, observe all safety precautions! To prevent electrical shock hazard, the operator should not electrically contact the output HI or sense HI terminals or circuits connected to these terminals. During operation, lethal voltages of up to 1100 V ac or dc may be present on these terminals.

  • Page 5: Table Of Contents

    Safety Information ..................... 3 Symbols ......................4 How to Contact Fluke Calibration ..............5 Instruction Manuals ................... 5 Wideband AC Voltage Module (Option 5730A/03 or 5730A/05)..... 5 Auxiliary Amplifiers ..................6 5725A Amplifier ................... 6 52120A Amplifier ..................7 Support Equipment and Services ............... 7 732B Direct Voltage Reference Standard .............
  • Page 6 52120A Specifications when Operated with the 5730A ........ 41 52120A Electrical Performance Limits ............42 Operated within 5730A Control Loop (all current ranges) ......42 Coverage factor k=2.58 (99 % confidence level) ........42 Coverage factor k=2.00 (95 % confidence level) ........43 52120A/COIL 3 kA 25-Turn Coil ..............
  • Page 7 List of Tables Table Title Page Symbols ........................4 Auxiliary Amplifier Data ..................6 Standard Equipment ....................11 Replacement Fuses ....................13 Front-Panel Features ....................16 Rear-Panel Features ....................20...
  • Page 8 5730A Getting Started Manual...
  • Page 9 List of Figures Figure Title Page Access the Fuse ...................... 13 Air Filter Access ....................14 Front-Panel Features ....................16 Rear-Panel Features ....................20...
  • Page 10 5730A Getting Started Manual...

  • Page 11: Introduction

    Introduction The Fluke Calibration 5730A Calibrator (the “Calibrator” or the “Product”) can calibrate a wide variety of electrical measurement instruments. The 5730A Calibrator maintains a high accuracy over a wide ambient temperature range. This accuracy lets the Calibrator test instruments in any environment, and eliminates the restrictions to calibrate only in a temperature-controlled standards laboratory.
  • Page 12 Offset and scaling modes that simplify linearity tests of multimeters. • Variable phase reference signal output and phase-lock input. • Interface for the Fluke Calibration 5725A Amplifier. • Interface for the Fluke Calibration 52120A Amplifier. • Standard IEEE-488 (GPIB) interface, that complies with ANSI/IEEE Standards 488.1-1987 and 488.2-1987.

  • Page 13: Safety Information

    Multifunction Calibrator Safety Information Safety Information A Warning identifies conditions and procedures that are dangerous to the user. A Caution identifies conditions and procedures that can cause damage to the Product or the equipment under test. Warnings To prevent possible electrical shock, fire, or personal injury: •...

  • Page 14: Symbols

    5730A Getting Started Manual • Do not touch exposed metal on banana plugs, they can have voltages that could cause death. • Do not touch voltages >30 V ac rms, 42 V ac peak, or 60 V dc. • Use the Product only as specified, or the protection supplied by the Product can be compromised.

  • Page 15: How To Contact Fluke Calibration

    RF voltmeters, with a frequency range of 10 Hz to 30 MHz (5730A/03) or 50 MHz (5730A/05). Output is in seven ranges from 300 μV (-57 dBm) to 3.5 V (+24 dBm) through a Type-N coaxial connector into a 50 Ω load. The output level is selected in volts or dBm through either the front panel controls or under remote control.

  • Page 16: Auxiliary Amplifiers

    The Fluke Calibration 5725A Amplifier is an external unit that operates under calibrator control. It extends ac voltage drive capabilities and both ac and dc current output range. The amplifier adds these capabilities to the 1100 V ac range of the 5730A Calibrator with no compromise in accuracy: •...

  • Page 17: 52120A Amplifier

    It maintains full specified stability over a temperature span of 18 °C to 28 °C. The 5730A Calibrator uses a 10 V reference standard such as the Fluke Calibration 732B in its semi-automated calibration procedure to establish external voltage traceability.

  • Page 18: 732B-200 Direct Volt Maintenance Program (Usa Only)

    NIST legal volt and sends a report of calibration. 742A Series Resistance Standards The 5730A Calibrator uses 1 Ω and 10 kΩ resistor standards such as the 742A Series in its semi-automated calibration procedure to establish external traceability of resistance and current.

  • Page 19: 5730A Calibration

    Multifunction Calibrator 5730A Calibration The Calibrator achieves its exceptional ac voltage accuracy by the use of a patented Fluke Calibration rms sensor to make real-time ac/dc comparison measurements. The Fluke Calibration rms sensor is similar in principle to the traditional thermal voltage converter, but has a shorter time constant, virtually no reversal error, higher signal-to-noise ratio, and better frequency response.

  • Page 20: Establish Traceability

    Calibration Reports The 5730A Calibrator stores two sets of calibration constants: the set currently in use and the old set from the previous calibration. This gives the Calibrator the ability at any time to produce a calibration report of the differences between the present settings and the settings that were in effect before the last calibration.

  • Page 21: Unpack And Inspect The Calibrator

    No part number Placement and Rack Mounting Put the 5730A Calibrator on top of a bench or mount in a standard-width, 24-inch (61-cm) deep equipment rack. For bench-top use, the Calibrator has non-slipping, non-marring feet. To mount the Calibrator in an equipment rack, use the Rack Mount Kit (Model Y5737) or the Rack Ear Kit (Model Y5738).

  • Page 22: Cooling Considerations

    Damage caused by overheating can occur if the area around the air intake is restricted, the intake air is too warm, or the air filter becomes clogged. Adhere to these rules to lengthen the life of the 5730A Calibrator and enhance its performance: •...

  • Page 23: Replacement Fuses

    Multifunction Calibrator Fuse Replacement Table 4. Replacement Fuses Line Voltage Range Fuse Description Fluke Part Number  100 V – 120 V T 3 A 250 V 109280  220 V – 240 V T 1.5 A 250 V 109231 hhp003.eps...

  • Page 24: Clean The Air Filter

    5730A Getting Started Manual Clean the Air Filter Caution Damage caused by overheating can occur if the area around the fan is restricted, the intake air is too warm, or the air filter becomes clogged. To prevent Product damage, make sure that the filter is completely dry before reinstallation.

  • Page 25: Clean The Exterior

    Clean the Exterior Clean the Exterior To keep the 5730A Calibrator looking new, clean the case, front panel keys, and display with a soft cloth slightly dampened with either water or a non-abrasive mild cleaning solution that is not harmful to plastics.

  • Page 26: Front-Panel Features

    5730A Getting Started Manual hhp006.eps Figure 3. Front-Panel Features Table 5. Front-Panel Features Item Description The color touch-sensitive display shows the output amplitude, frequency, and other active conditions and messages. The display provides controls not available with  the keys alone. The Calibrator interface is made up of multiple menus, described in Chapter 4 of the Operators Manual.
  • Page 27 Multifunction Calibrator Front-Panel Features Table 5. Front-Panel Features (cont.) Item Description  deactivates the programmed output. The output automatically changes to STANDBY if: • is pushed  • The output voltage is changed from <22 V to >22 V  •...
  • Page 28 Manual for details. The WIDEBAND connector is a Type "N" connector that provides a connection point for output from the Option 5730A/03 or 5730A/05 Wideband AC Module.  Wideband output specifications are stated for output levels present at the end of its WIDEBAND 3-foot 50 Ω...
  • Page 29 Connection points for ac and dc current and voltage output, and resistance. The function of each OUTPUT binding post is defined below: The common binding post for all output functions including 5725A amplified voltage output, but not Option 5730A/03 or 5730A/05 Wideband AC or other auxiliary amplifier output. ...

  • Page 30: Rear-Panel Features

    Refer to "Auxiliary Amplifier Use" in Chapter 4 of Amplifier Connector the Operators Manual for details. Provides the analog and digital interface for the Fluke 5725A Amplifier.  After the 5725A is connected to the 5725A AMPLIFIER connector, control 5725A Amplifier the 5725A from the Calibrator front panel or by remote commands.
  • Page 31 Multifunction Calibrator Rear-Panel Features Table 6. Rear-Panel Features (cont.) Item Description Provides the input for an external signal onto which the Calibrator can be phase locked. (1 V rms to 10 V rms, 10 kΩ input impedance.) The  connector shell is not connected directly to chassis ground. It is connected PHASE LOCK IN internally to the OUTPUT LO binding post.

  • Page 32: General Specifications

    Line Power Line Voltage 5730A ............. 100 V-120 V, 220 V- 240 V ±10 % 5725A ............. 100 V, 110 V, 115 V, 120 V, 200 V, 220 V, 230 V, 240 V, ±10 % Line Frequency ..........47 Hz-63 Hz Maximum Power 5730A .............
  • Page 33 Figure 5. Product Dimensions Artifact Calibration Standards Requirements The following external standards are necessary to calibrate the 5730A to the listed specification. Each external standard used must have an uncertainty equal to or less than the listed uncertainty limit. Traceable...

  • Page 34: Electrical Specifications

    The product specifications are provided at a 99 %, k=2.58, normally distributed and a 95 %, k=2, normally distributed level of confidence. Fluke Calibration guarantees product performance to the 99 % level of confidence.

  • Page 35: Ac Voltage Specifications

    Common Mode Rejection ........140 dB, DC to 400 Hz Remote Sensing ..........Available 0 V to ±1100 V, on 2.2 V through 1100 V ranges AC Voltage Specifications 5730A AC Voltage Specifications: 99 % Confidence Level Absolute / ±5 °C from calibration temperature Relative ±1 °C...
  • Page 36 5730A Getting Started Manual Absolute / ±5 °C from calibration temperature Relative ±1 °C Frequency Range Resolution 24 Hours 90 Days 180 Days 1 Year 24 Hours 90 Days (Hz) ±(ppm output + μV) 10 - 20 250 + 500...
  • Page 37 Multifunction Calibrator Electrical Specifications 5730A AC Voltage Specifications: 95 % Confidence Level Absolute / ±5 °C from calibration temperature Relative ±1 °C Frequency Range Resolution 24 Hours 90 Days 180 Days 1 Year 24 Hours 90 Days (Hz) ±(ppm output + μV)
  • Page 38 5730A Getting Started Manual Absolute / ±5 °C from calibration temperature Relative ±1 °C Frequency Range Resolution 24 Hours 90 Days 180 Days 1 Year 24 Hours 90 Days (Hz) ±(ppm output + μV) ±(ppm output + mV) 10 - 20...
  • Page 39 Multifunction Calibrator Electrical Specifications Temperature Coefficient Maximum Stability ±1 °C Distortion 0 - 10 °C and Output Impedance Frequency 10 - 40 °C 24 Hours Bandwidth 10 Hz- Range 40 - 50 °C (Hz) (Ω) 10 MHz ±μV ±μV / °C ±(% output + μV) Load Regulation ±(ppm output + μV)
  • Page 40 Output Display Formats ........Voltage or dBm, dBm reference 600 Ω. Minimum Output ........... 10 % on each range External Sense ............Applicable for 2.2 V, 22 V, 220 V, and 1100 V ranges; 5730A <100 kHz, 5725A <30 kHz. Specifications are the same as internal sense.

  • Page 41: Resistance Specifications

    Output Level ............2.5 V rms ±0.2 V Frequency Range ..........50 Hz to 1 kHz, usable 10 Hz to 1.1999 MHz Resistance Specifications 5730A Resistance Specifications Absolute Specification of Characterized Value Relative ±1 °C ±5 °C from calibration temperature Nominal Value (Ω)
  • Page 42 5730A Getting Started Manual Absolute Specification of Characterized Value Relative ±1 °C ±5 °C from calibration temperature Nominal Value (Ω) 24 Hours 90 Days 180 Days 1 Year 24 Hours 90 Days ±ppm 95 % Confidence Level 40 μΩ 40 μΩ...
  • Page 43 Multifunction Calibrator Electrical Specifications Two-Wire Maximum Temperature Coefficient Adder Active Difference of Maximum Adder Compensation Characterized Stability Nominal Peak Full Spec Load ±1 °C to Nominal Value Current Range 0 - 10 °C Value Lead Resistance 24 Hours (mA) (Ω) 10 - 40 °C 0.1 Ω...
  • Page 44 ⎯ 100 M Notes: For I < I L, errors occur due to thermally generated voltages within the 5730A. Use the following equation to determine the error, and add this error to the corresponding specifications. Error = K(I - I)/( I x I) Where: Error is in mΩ...

  • Page 45: Dc Current Specifications

    Multifunction Calibrator Electrical Specifications DC Current Specifications 5730A DC Current Specifications Absolute / ±5 °C from calibration temperature Relative ±1 °C Resolution Range 24 Hours 90 Days 180 Days 1 Year 24 Hours 90 Days ±(ppm output + nA) 99 % Confidence Level...
  • Page 46 5730A Getting Started Manual DC Current Secondary Performance Specifications and Operating Characteristics Temperature Noise Coefficient Maximum Stability Burden Load for ±1 °C 0 - 10 °C Bandwidth Bandwidth Voltage Published Compliance 10 - 40 °C 0.1-10 Hz 10 Hz-10 kHz...

  • Page 47: Ac Current Specifications

    Multifunction Calibrator Electrical Specifications AC Current Specifications 5730A AC Current Specifications: 99 % Confidence Level Absolute / ±5 °C from calibration temperature Relative ±1 °C Frequency Range Resolution 24 Hours 90 Days 180 Days 1 Year 24 Hours 90 Days (Hz) ±(ppm output + nA)
  • Page 48 5730A Getting Started Manual 5730A AC Current Specifications: 95 % Confidence Level Absolute / ±5 °C from calibration temperature Relative ±1 °C Frequency Range Resolution 24 Hours 90 Days 180 Days 1 Year 24 Hours 90 Days (Hz) ±(ppm output + nA)
  • Page 49 Notes: Maximum output from 5730A terminals is 2.2 A. Specifications for 220 μA and 2.2 mA ranges are increased by a factor of 1.3, plus 2 μA when supplied through 5725A terminals. Specifications are otherwise identical for all output locations.

  • Page 50: Wideband Ac Voltage (Option 5730A/03 And 5730A/05) Specifications (99 % Confidence Level)

    Range (Hz) ............10.000 - 11.999, 12.00 - 119.99, 120.0 - 1199.9, 1.200 k - 10.000 k Specification ..........±0.01 % of output Resolution ............. 11,999 counts Settling Time ............5 seconds for 5730A ranges; 6 seconds for 5725A 11 A range; +1 second for amplitude or frequency range change. Overshoot ............<10 %...

  • Page 51: 52120A Specifications When Operated With The 5730A

    Overload Protection ..........A short circuit on the wideband output will not result in damage. After settling time, normal operation is restored upon removal. 52120A Specifications when Operated with the 5730A Line Power Voltage range ............. 100 V to 240 V Frequency ............

  • Page 52: 52120A Electrical Performance Limits

    Operated within 5730A Control Loop (all current ranges) The current specification of the 52120A, when controlled by a single 5730A, applies to the parallel output of up to three 52120As connected as slaves.

  • Page 53: Coverage Factor K=2.00 (95 % Confidence Level)

    Multifunction Calibrator Electrical Specifications Coverage factor k=2.00 (95 % confidence level) Current Specification ±5 °C ±(% of output + % of range) 1-year, tcal Frequency 5730A % of output % of range 0.012 0.008 10 Hz to 850 Hz 0.009 0.002...

  • Page 54: 52120A/Coil 3 Ka 25-Turn Coil

    5730A Getting Started Manual 52120A/COIL 3 kA 25-Turn Coil Number of Turns ........... 25 Minimum internal jaw dimension to clear wires 26 mm (width) x 36 mm (length) Maximum Input Current ........120 A continuous with built-in 12 V fan on Maximum Voltage ..........
  • Page 55 Multifunction Calibrator Electrical Specifications Note The specifications for these coils are at 99 % confidence level and are the combined specification of the coil and a 52120A. If the coils are used with other current sources the calibration specification of the coils alone is 0.65 % (99 % confidence level) from 0 Hz to 10 kHz.
  • Page 56 5730A Getting Started Manual...
