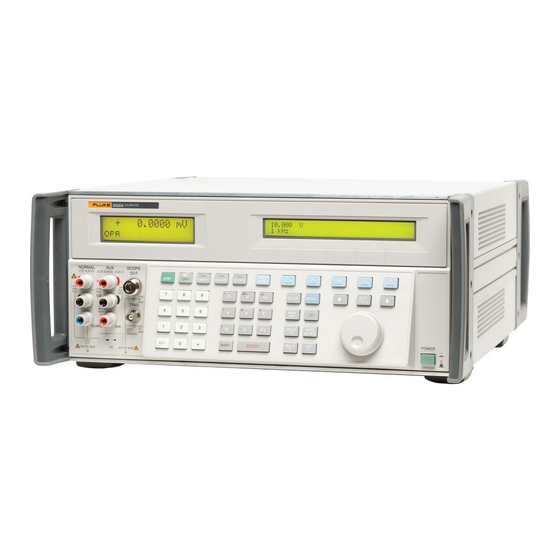

Fluke 5520A Manual

Hide thumbs Also See for 5520A:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Operator's Manual
Manual Title:
Print Date:
Revision/Date:
This supplement contains information necessary to ensure the accuracy of the
above manual. This manual is distributed as an electronic manual on the
following CD-ROM:
© 2004-2011 Fluke Corporation. All rights reserved.
Manual Supplement
5520A Operators
August 1998
6, 1/03
CD Title:
CD Rev. & Date:
CD PN:
Supplement Issue:
Issue Date:
Page Count:
5500A/5520A
2, 6/2006
1627768
8
7/11
28

Advertisement

Table of Contents
loading

Related Manuals for Fluke 5520A

Summary of Contents for Fluke 5520A

  • Page 1 This supplement contains information necessary to ensure the accuracy of the above manual. This manual is distributed as an electronic manual on the following CD-ROM: CD Title: 5500A/5520A CD Rev. & Date: 2, 6/2006 CD PN: 1627768 © 2004-2011 Fluke Corporation. All rights reserved.

  • Page 2: Specifications

    The following tables list the 5520A specifications. All specifications are valid after allowing a warm-up period of 30 minutes, or twice the time the 5520A has been turned off. (For example, if the 5520A has been turned off for 5 minutes, the warm-up period is 10 minutes.) ±5 °C (t...

  • Page 3: General Specifications

    For optimal performance at full dual outputs (e.g. 1000 V, 20 A) choose a line voltage setting that is ± 7.5 % from nominal. The DC Current ranges 0 to 1.09999 A and 1.1 to 2.99999 A are sensitive to storage temperatures above 50 °C. If the 5520A is stored above 50 °C for greater than 30 minutes, these ranges must be re-calibrated.

  • Page 4: Electrical Specifications

    Manual Supplement 5520A Operator Electrical Specifications DC Voltage Specifications Absolute Uncertainty, tcal ±5 °C Stability Resolution ±(ppm of output + μV) Range μV Burden 24 hours, ±1 °C 90 days 1 year ±(ppm output + μV) 0 to 329.9999 mV...

  • Page 5: Dc Current Specifications

    5 and 11 amps for long periods, the internal self-heating reduces the duty cycle. Under those conditions, the allowable "on" time indicated by the formula and Figure B is achieved only after the 5520A is outputting currents <5 A for the "off"...
  • Page 6 Manual Supplement 5520A Operator Ambient 0 °C 10 °C 20 °C 30 °C 40 °C Current (Amps) nn326f.eps Figure B. Allowable Duration of Current > 11 A 7/11...

  • Page 7: Resistance Specifications

    Manual Supplement 5520A Operator Resistance Specifications Absolute Uncertainty, tcal ±5 °C ±(ppm of output + floor) Resolution Range Floor Allowable Current Ω ppm of output Time & temp since ohms zero cal 12 hrs ±1 °C 7 days ±5 °C...

  • Page 8: Ac Voltage (Sine Wave) Specifications

    Manual Supplement 5520A Operator AC Voltage (Sine Wave) Specifications NORMAL (Normal Output) Absolute Uncertainty, Max Distortion and tcal ±5 °C Noise 10 Hz to 5 MHz ±(ppm of output + μV) Range Frequency Resolution Burden Bandwidth 90 days 1 year ±(% of output + floor)
  • Page 9 Manual Supplement 5520A Operator AC Voltage (Sine Wave) Specifications (cont.) AUX (Auxiliary Output) [dual output mode only] Absolute Uncertainty, Max Distortion and tcal ±5 °C Noise 10 Hz to 100 kHz ±(% of output + μV) Range Frequency Resolution Burden...

  • Page 10: Ac Current (Sine Wave) Specifications

    5 and 11 amps for long periods, the internal self-heating reduces the duty cycle. Under those conditions, the allowable "on" time indicated by the formula and Figure B is achieved only after the 5520A is outputting currents <5 A for the "off"...
  • Page 11 5 and 11 amps for long periods, the internal self-heating reduces the duty cycle. Under those conditions, the allowable "on" time indicated by the formula and Figure B is achieved only after the 5520A is outputting currents <5 A for the "off"...

  • Page 12: Capacitance Specifications

    Manual Supplement 5520A Operator Capacitance Specifications Absolute Uncertainty, tcal Allowed Frequency or ±5 °C Charge-Discharge Rate ±(% of output + floor) Range Resolution Typical Typical Min and Max 90 days 1 year to Meet Max for Max for < 0.5 % Error <...

  • Page 13: Temperature Calibration (Thermocouple) Specifications

    Manual Supplement 5520A Operator Temperature Calibration (Thermocouple) Specifications Absolute Uncertainty Absolute Uncertainty Source/Measure Source/Measure Range Range tcal ±5 °C tcal ±5 °C Type Type °C °C ± °C ± °C 90 days 1 year 90 days 1 year 600 to 800 0.42...

  • Page 14: Temperature Calibration (Rtd) Specifications

    0.13 400 to 600 0.12 0.14 600 to 630 0.14 0.16 Resolution is 0.003 °C Applies for COMP OFF (to the 5520A Calibrator front panel NORMAL terminals) and 2-wire and 4-wire compensation. Based on MINCO Application Aid No. 18 7/11...

  • Page 15: Dc Power Specification Summary

    Manual Supplement 5520A Operator DC Power Specification Summary Current Range 0.33 to 0.33 to 3 to Voltage Range 329.99 mA 2.9999 A 20.5 A Absolute Uncertainty, tcal ±5 °C, ± (% of watts output) 90 days 33 mV to 1020 V 0.021...

  • Page 16: Phase Specifications

    Manual Supplement 5520A Operator Phase Specifications 1-Year Absolute Uncertainty, tcal ±5 °C, (Δ Φ °) 10 to 65 to 500 Hz to 1 to 5 to 10 to 65 Hz 500 Hz 1 kHz 5 kHz 10 kHz 30 kHz 0.10 °...
  • Page 17 Manual Supplement 5520A Operator Calculating Power Uncertainty Overall uncertainty for power output in Watts (or VARs) is based on the root sum square (rss) of the individual uncertainties in percent for the selected voltage, current, and power factor parameters: Watts uncertainty...

  • Page 18: Additional Specifications

    The following paragraphs provide additional specifications for the 5520A Calibrator ac voltage and ac current functions. These specifications are valid after allowing a warm-up period of 30 minutes, or twice the time the 5520A has been turned off. All extended range specifications are based on performing the internal zero-cal function at weekly intervals, or when the ambient temperature changes by more than 5 °C.

  • Page 19: Ac Voltage (Sine Wave) Extended Bandwidth Specifications

    Manual Supplement 5520A Operator AC Voltage (Sine Wave) Extended Bandwidth Specifications 1-Year Absolute Uncertainty Max Voltage Range Frequency tcal ±5 °C Resolution Normal Channel (Single Output Mode) 1.0 to 33 mV Two digits, e.g., 25 mV ±(5.0 % of output + 34 to 330 mV 0.01 to 9.99 Hz...
  • Page 20 Manual Supplement 5520A Operator AC Voltage (Non-Sine Wave) Specifications (cont.) 1-Year Absolute Uncertainty, Square Wave Max Voltage tcal ±5 °C Frequency Range Resolution (p-p) ±(% of output + % of range) Normal Channel (Single Output Mode) 0.01 to 10 Hz 5.0 + 0.5...

  • Page 21: Ac Voltage, Dc Offset Specifications

    Manual Supplement 5520A Operator AC Voltage, DC Offset Specifications 1-Year Absolute Offset Range Uncertainty, tcal ±5 °C Peak Offset Range (Normal Channel) ±(% of dc output + floor) Signal Sine Waves (rms) 3.3 to 32.999 mV 0 to 50 mV 80 mV 0.1 + 33 μV...

  • Page 22: Ac Current (Non-Sine Wave) Specifications

    Manual Supplement 5520A Operator AC Current (Non-Sine Wave) Specifications Triangle Wave & 1-Year Absolute Uncertainty tcal ±5 °C Truncated Sine Wave Max Current Frequency Range ±(% of output + % of range) Resolution 0.25 + 0.5 10 to 45 Hz 0.047 to...

  • Page 23: Ac Current, Square Wave Characteristics (Typical)

    Manual Supplement 5520A Operator AC Current, Square Wave Characteristics (typical) Range LCOMP Risetime Settling Time Overshoot I < 6 A @ 400 Hz 25 μs 40 μs to 1 % of final value < 10 % for < 1 V Compliance 3 A &...
  • Page 24 Manual Supplement 5520A Operator Change #2 On page 4-7, following the first sentence, add the following note: Note ± If the 5500A is operated outside the range of t 5 ºC, then the temperature coefficient defined in the General Specifications, Chapter 1 of this manual, must be calculated and added to the absolute uncertainties.

  • Page 25: Trigger Signal Specifications (Time Marker Function)

    Manual Supplement 5520A Operator On page 8-18, replace steps 2 and 3, with the following: 2. Key in the voltage level that is recommended for your oscilloscope. For example to enter 30 mV, press 30gV, then press E. See “Keying in a Value” earlier in this chapter.

  • Page 26: Trigger Signal Specifications (Edge Function)

    Manual Supplement 5520A Operator Trigger Signal Specifications (Edge Function) Edge Signal Typical Amplitude into Division Ratio Typical Rise Time Typical Lead Time Frequency 50 Ω (p-p) 900 Hz to 1.1 MHz off/1 ≥1 V ≤2 ns 40 ns On page 8-66, in graphic gl021i.eps: Change: DC <...
  • Page 27 Manual Supplement 5520A Operator On page 8-75, in graphic gl030i.eps: Change: Rate fast Rate 1 MHz Change: fast slow 100 kHz 1 MHz 10 MHz Under RATE, replace the first paragraph with the following: • RATE Used when FREQ CHANGE is set to “sweep” to select a the sweep speed of 100 kHz, 1 MHz or 10 MHz.
  • Page 28 Manual Supplement 5520A Operator • SHAPE Indicates the type of waveform. Depending on frequency setting, possible selections are sine, spike, square (50% duty cycle square wave), and sq20% (20% duty cycle square wave.) Note that selections available under SHAPE depend on the selected marker period (frequency), as follows:...
  • Page 29 Manual Supplement 5520A Operator Change #4 On page 6-18, replace EXTGUARD and EXTGUARD?, with the following: IEEE-488 RS-232 Sequential Overlapped Coupled EXTGUARD (External guard command) Connects or disconnects the internal guard shield from the LO binding post. Parameter: (external guard is on, i.e. disconnected from LO) (external guard is off, i.e.
