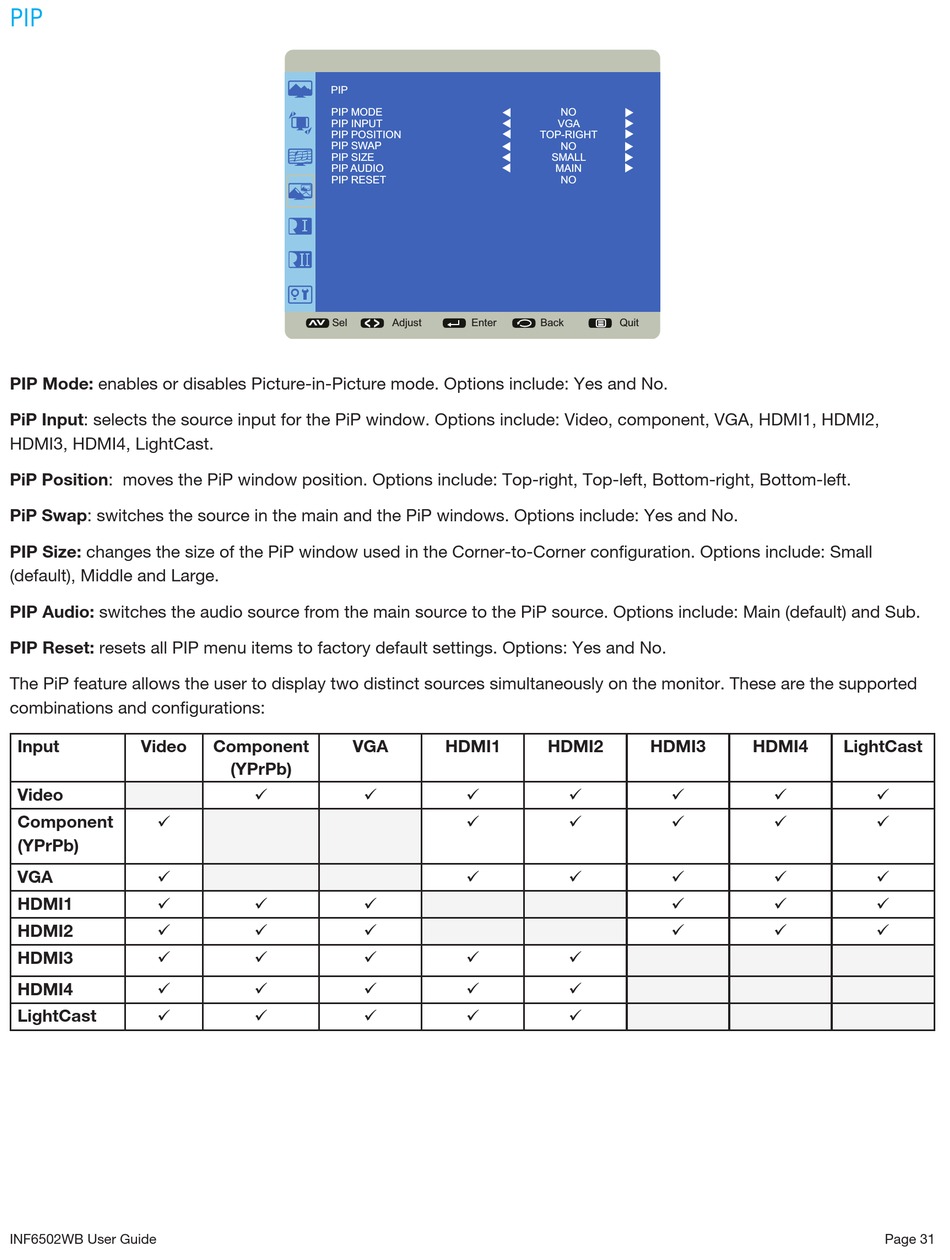

PIP

PIP Mode: enables or disables Picture-in-Picture mode. Options include: Yes and No.
PiP Input: selects the source input for the PiP window. Options include: Video, component, VGA, HDMI1, HDMI2,
HDMI3, HDMI4, LightCast.
PiP Position: moves the PiP window position. Options include: Top-right, Top-left, Bottom-right, Bottom-left.
PiP Swap: switches the source in the main and the PiP windows. Options include: Yes and No.
PIP Size: changes the size of the PiP window used in the Corner-to-Corner configuration. Options include: Small
(default), Middle and Large.
PIP Audio: switches the audio source from the main source to the PiP source. Options include: Main (default) and Sub.
PIP Reset: resets all PIP menu items to factory default settings. Options: Yes and No.
The PiP feature allows the user to display two distinct sources simultaneously on the monitor. These are the supported
combinations and configurations:
Input Video
Video
Component

(YPrPb)
VGA

HDMI1

HDMI2

HDMI3

HDMI4

LightCast

INF6502WB User Guide
PIP
PIP MODE
PIP INPUT
PIP POSITION
PIP SWAP
PIP SIZE
PIP AUDIO
PIP RESET
< >
Sel
Component VGA
(YPrPb)
 
 
 
 
 
 
NO
VGA
TOP-RIGHT
NO
SMALL
MAIN
NO
Adjust Enter Back
HDMI1 HDMI2
 
 
 
 
 
 
Quit
HDMI3 HDMI4
 
 
 
 
 
LightCast





