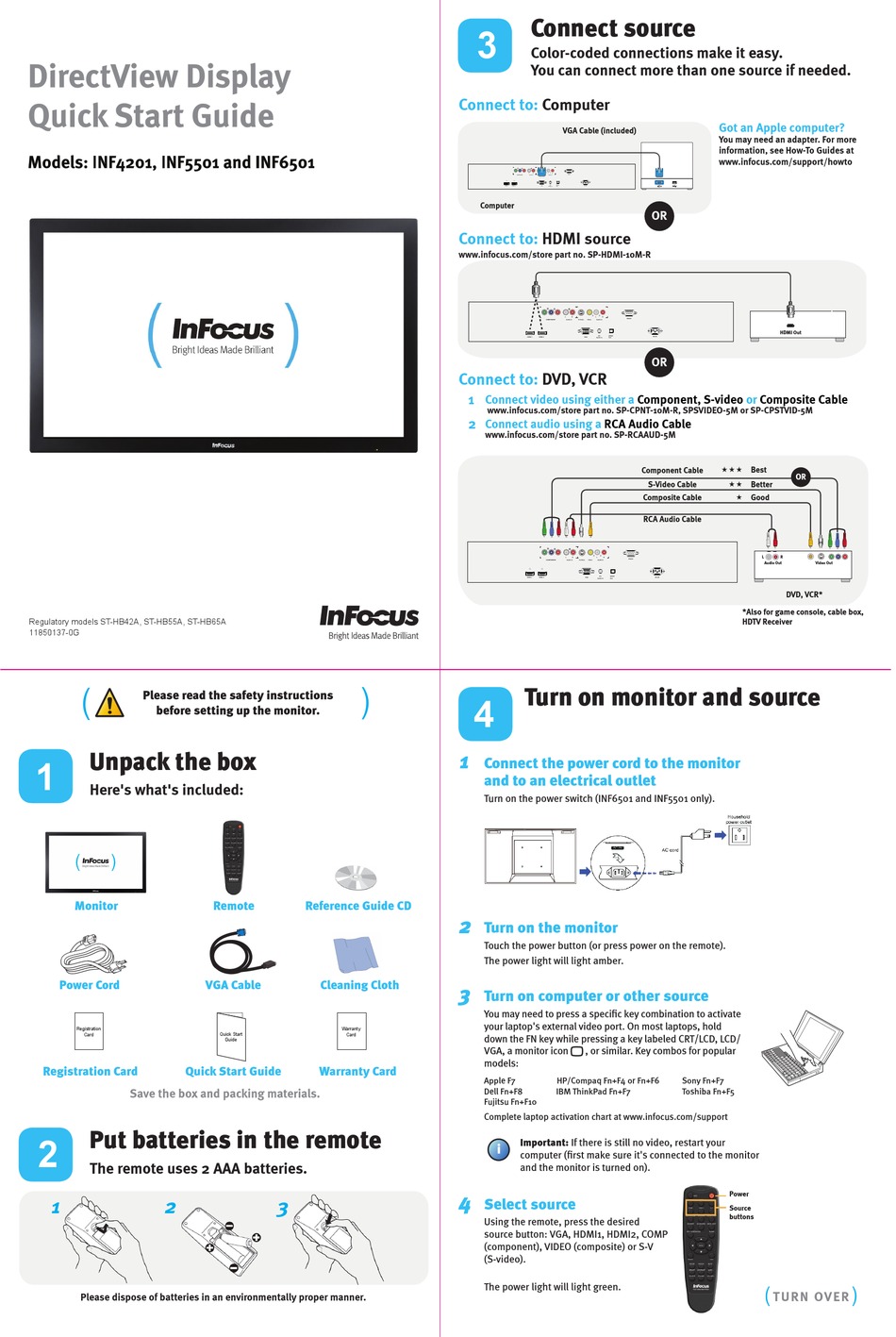

InFocus INF4201 Quick Start Manual

Regulatory models ST-HB42A, ST-HB55A, ST-HB65A
11850137-0G
Please read the safety instructions
before setting up the monitor.

Unpack the box

1
Here's what's included:
Monitor
Power Cord
Registration
Card
Registration Card Quick Start Guide
Save the box and packing materials.

Put batteries in the remote

2
The remote uses 2 AAA batteries.
1 2
Please dispose of batteries in an environmentally proper manner.
Remote Reference Guide CD
VGA Cable Cleaning Cloth
Warranty
Quick Start Card
Guide
Warranty Card
3
Connect source
3
Color-coded connections make it easy.
You can connect more than one source if needed.
Connect to: Computer
VGA Cable (included)
L R L R
RS232
COMPONENT Audio In S-Video Video Audio In
HDMI 1 HDMI 2 VGA PC SPDIF AC-IN
Audio In Out
Computer
Connect to: HDMI source
www.infocus.com/store part no. SP-HDMI-10M-R
L R L R
COMPONENT Audio In S-Video Video Audio In
PC SPDIF
HDMI 1 HDMI 2 VGA
Audio In Out
Connect to: DVD, VCR
1
Connect video using either a
www.infocus.com/store part no. SP-CPNT-10M-R, SPSVIDEO-5M or SP-CPSTVID-5M
2
Connect audio using a RCA Audio Cable
www.infocus.com/store part no. SP-RCAAUD-5M
L R L R
COMPONENT Audio In S-Video Video Audio In
PC SPDIF
HDMI 1 HDMI 2 VGA
Audio In Out
Turn on monitor and source
4
1
Connect the power cord to the monitor
and to an electrical outlet
Turn on the power switch (INF6501 and INF5501 only).
2
Turn on the monitor
Touch the power button (or press power on the remote).
The power light will light amber.
3
Turn on computer or other source
You may need to press a specific key combination to activate
your laptop's external video port. On most laptops, hold
down the FN key while pressing a key labeled CRT/LCD, LCD/
VGA, a monitor icon , or similar. Key combos for popular
models:
Apple F7 HP/Compaq Fn+F4 or Fn+F6
Dell Fn+F8 IBM ThinkPad Fn+F7
Fujitsu Fn+F10
Complete laptop activation chart at www.infocus.com/support
Important: If there is still no video, restart your
i
computer (first make sure it's connected to the monitor
and the monitor is turned on).
4
Select source
Using the remote, press the desired
source button: VGA, HDMI1, HDMI2, COMP
(component), VIDEO (composite) or S-V
(S-video).
The power light will light green.
Got an Apple computer?
You may need an adapter. For more
information, see How-To Guides at
www.infocus.com/support/howto
OR
RS232
HDMI Out
AC-IN
OR
Component, S-video or Composite Cable
 Best
Component Cable
S-Video Cable  Better
Composite Cable  Good
RCA Audio Cable
L R
RS232
Audio Out
AC-IN
DVD, VCR*
*Also for game console, cable box,
HDTV Receiver
Sony Fn+F7
Toshiba Fn+F5
Power
Source
buttons
T U R N OV ER
OR
Video Out
