Connecting to other devices

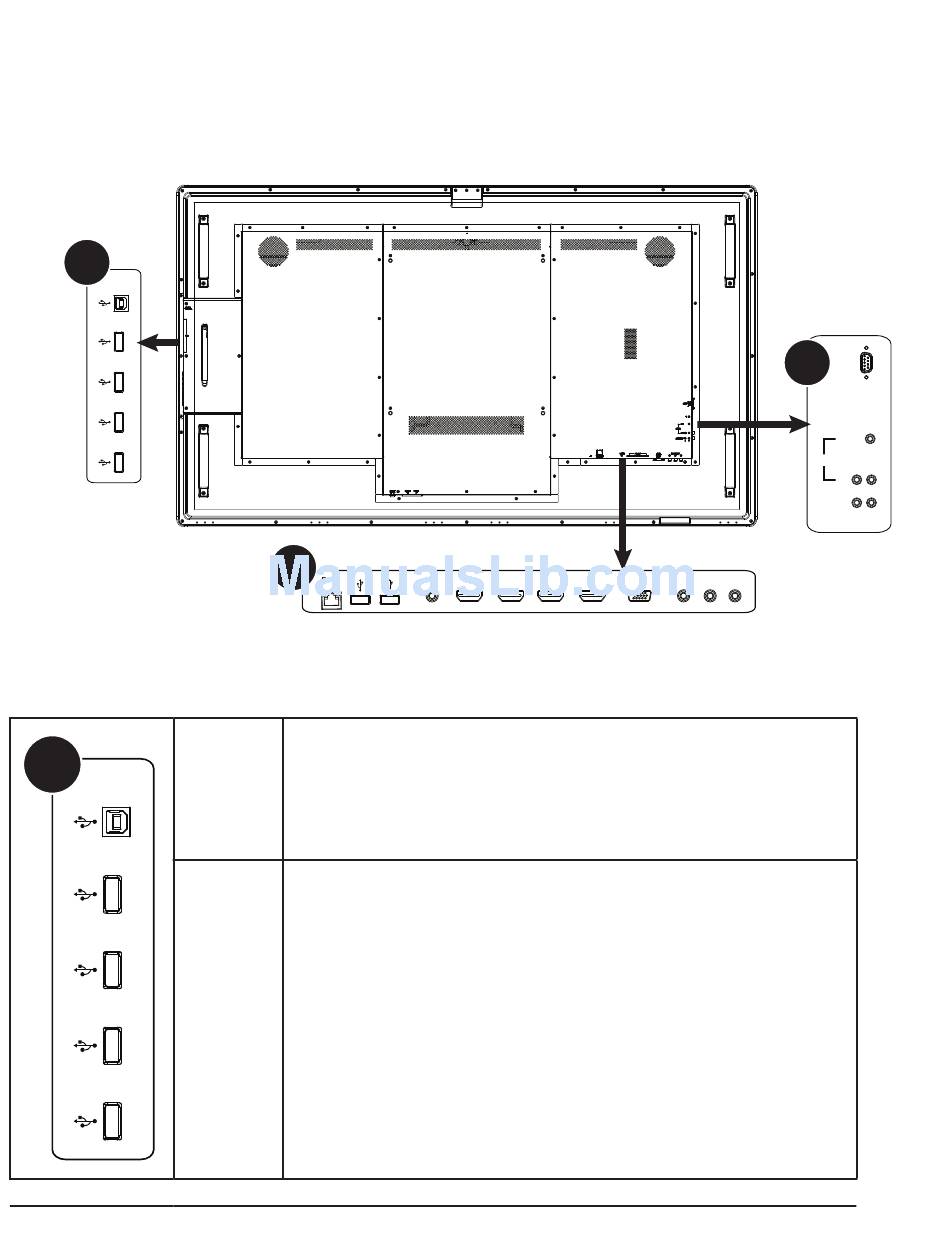

A full range of digital and analog video inputs and audio source devices can be connected to the connection panels on
the back and side of the monitor. Available jacks include: HDMI In (4), PC In (1), Composite Video (1), Component RCA
(1), RS232 (1), Audio In 3.5mm (1), Audio In RCA (1-R/L), USB-B for touch control (1), USB 2.0-A (4), and Audio Out RCA
(1-R/L).
A
TOUCH
CONTROL
USB
A
TOUCH
TOUCH
CONTROL
CONTROL
USB
USB 1-4
INF6502WB User Guide
B
VIDEO HDMI4
Connect a Type A to Type B USB cable from the monitor to an external
computer in order to use the touchscreen gestures on the monitor.
Connect a wireless mouse, USB thumb drive or other USB device to this
USB Type A 2.0 connector.
HDMI3 HDMI2 HDMI1 PC IN
C
RS232
IN 1
Audio
IN 2
Audio OUT
L
COMPONENT
R
