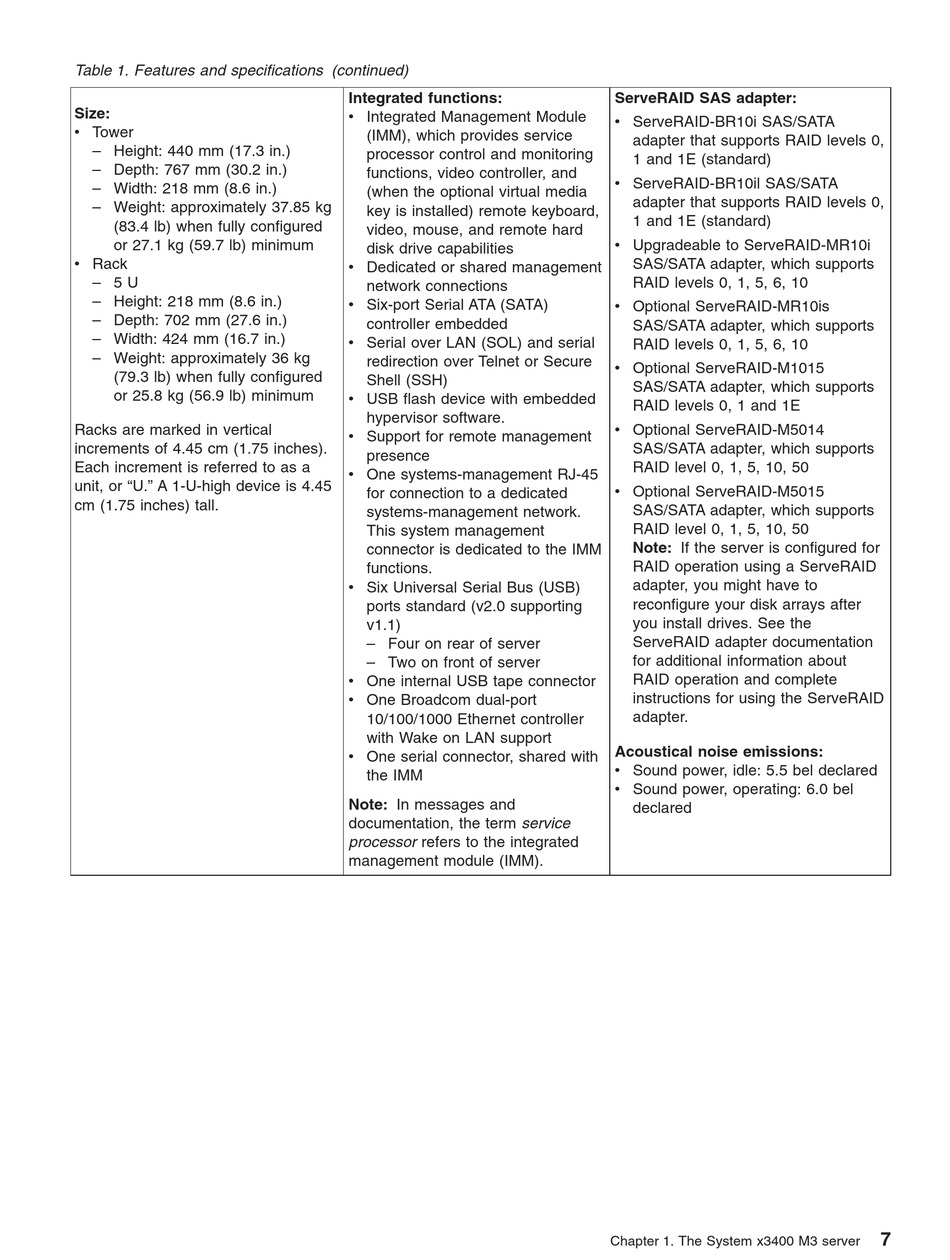

Table 1. Features and specifications (continued)
Size:
v Tower
– Height: 440 mm (17.3 in.)
– Depth: 767 mm (30.2 in.)
– Width: 218 mm (8.6 in.)
– Weight: approximately 37.85 kg
(83.4 lb) when fully configured
or 27.1 kg (59.7 lb) minimum
v Rack
– 5 U
– Height: 218 mm (8.6 in.)
– Depth: 702 mm (27.6 in.)
– Width: 424 mm (16.7 in.)
– Weight: approximately 36 kg
(79.3 lb) when fully configured
or 25.8 kg (56.9 lb) minimum
Racks are marked in vertical
increments of 4.45 cm (1.75 inches).
Each increment is referred to as a
unit, or "U." A 1-U-high device is 4.45
cm (1.75 inches) tall.
Integrated functions:
v Integrated Management Module
(IMM), which provides service
processor control and monitoring
functions, video controller, and
(when the optional virtual media
key is installed) remote keyboard,
video, mouse, and remote hard
disk drive capabilities
v Dedicated or shared management
network connections
v Six-port Serial ATA (SATA)
controller embedded
v Serial over LAN (SOL) and serial
redirection over Telnet or Secure
Shell (SSH)
v USB flash device with embedded
hypervisor software.
v Support for remote management
presence
v One systems-management RJ-45
for connection to a dedicated
systems-management network.
This system management
connector is dedicated to the IMM
functions.
v Six Universal Serial Bus (USB)
ports standard (v2.0 supporting
v1.1)
– Four on rear of server
– Two on front of server
v One internal USB tape connector
v One Broadcom dual-port
10/100/1000 Ethernet controller
with Wake on LAN support
v One serial connector, shared with
the IMM
Note: In messages and
documentation, the term service
processor refers to the integrated
management module (IMM).
ServeRAID SAS adapter:
v ServeRAID-BR10i SAS/SATA
adapter that supports RAID levels 0,
1 and 1E (standard)
v ServeRAID-BR10il SAS/SATA
adapter that supports RAID levels 0,
1 and 1E (standard)
v Upgradeable to ServeRAID-MR10i
SAS/SATA adapter, which supports
RAID levels 0, 1, 5, 6, 10
v Optional ServeRAID-MR10is
SAS/SATA adapter, which supports
RAID levels 0, 1, 5, 6, 10
v Optional ServeRAID-M1015
SAS/SATA adapter, which supports
RAID levels 0, 1 and 1E
v Optional ServeRAID-M5014
SAS/SATA adapter, which supports
RAID level 0, 1, 5, 10, 50
v Optional ServeRAID-M5015
SAS/SATA adapter, which supports
RAID level 0, 1, 5, 10, 50
Note: If the server is configured for
RAID operation using a ServeRAID
adapter, you might have to
reconfigure your disk arrays after
you install drives. See the
ServeRAID adapter documentation
for additional information about
RAID operation and complete
instructions for using the ServeRAID
adapter.
Acoustical noise emissions:
v Sound power, idle: 5.5 bel declared
v Sound power, operating: 6.0 bel
declared
