8. Use a torque wrench or a ratchet and a 10mm socket, or an adjustable wrench, to finish attaching the
Access Point bracket to the angle adapter bracket with the M6 hex flange screws in the open slot
connections and the top holes on the angle adapter bracket. Do not tighten the screws until all rotation
and tilt adjustments are complete.
9. To adjust the position of the Access Point, rotate the Access Point bracket (plus or minus 15 degrees) and
tilt the angle adapter bracket (up to 45 degrees).
10. Tighten all hex flange screws to 60 inch pounds (lbf-in).
For mounting with band clamps:

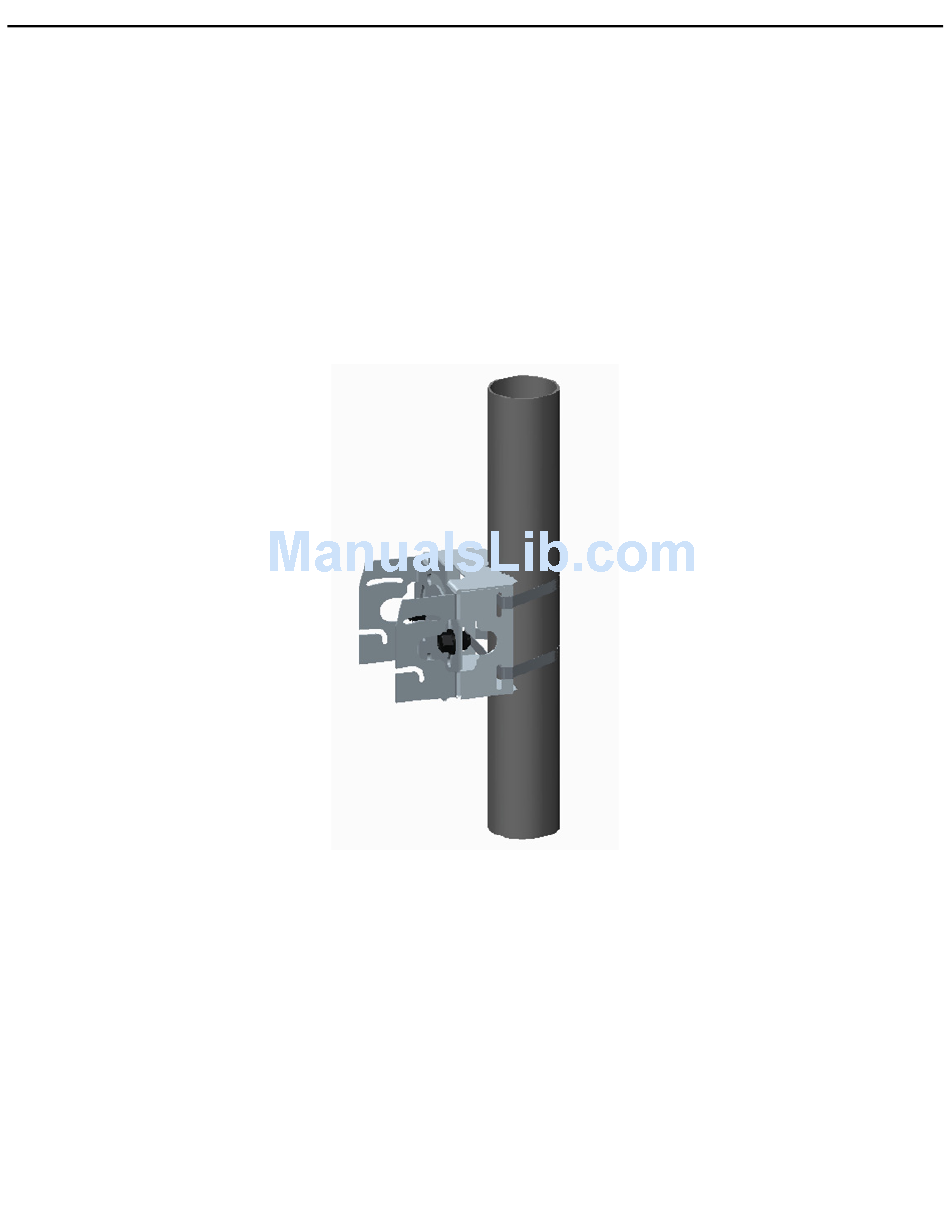

1. Attach the pole mount bracket at the desired mounting location using band clamps.
2. With the angle adapter bracket positioned so the open connector slots are on the bottom, attach the angle
adapter bracket to the pole mount bracket using two 1/2 inch bolts and nuts. Tighten the nuts to 300 inch
pounds (lbf-in).
3. Position the Access Point bracket so the bottom of the with the straight (not bevel cut) sides is oriented
toward the bottom side of the AP with the gore vent. Using a torque wrench or a ratchet and a 10mm
socket, or an adjustable wrench, attach (but don't tighten) the Access Point bracket to the AP-7562 with
the four M6 hex flange screws.
4. Insert two M6 hex flange screws into the bottom holes on the sides of the Access Point bracket.
5. With the Access Point positioned so the gore vent is facing down, insert the two M6 hex flange screws
in the bottom holes on the sides of the Access Point bracket into the open slot connections on the bottom
of the angle adapter bracket.
