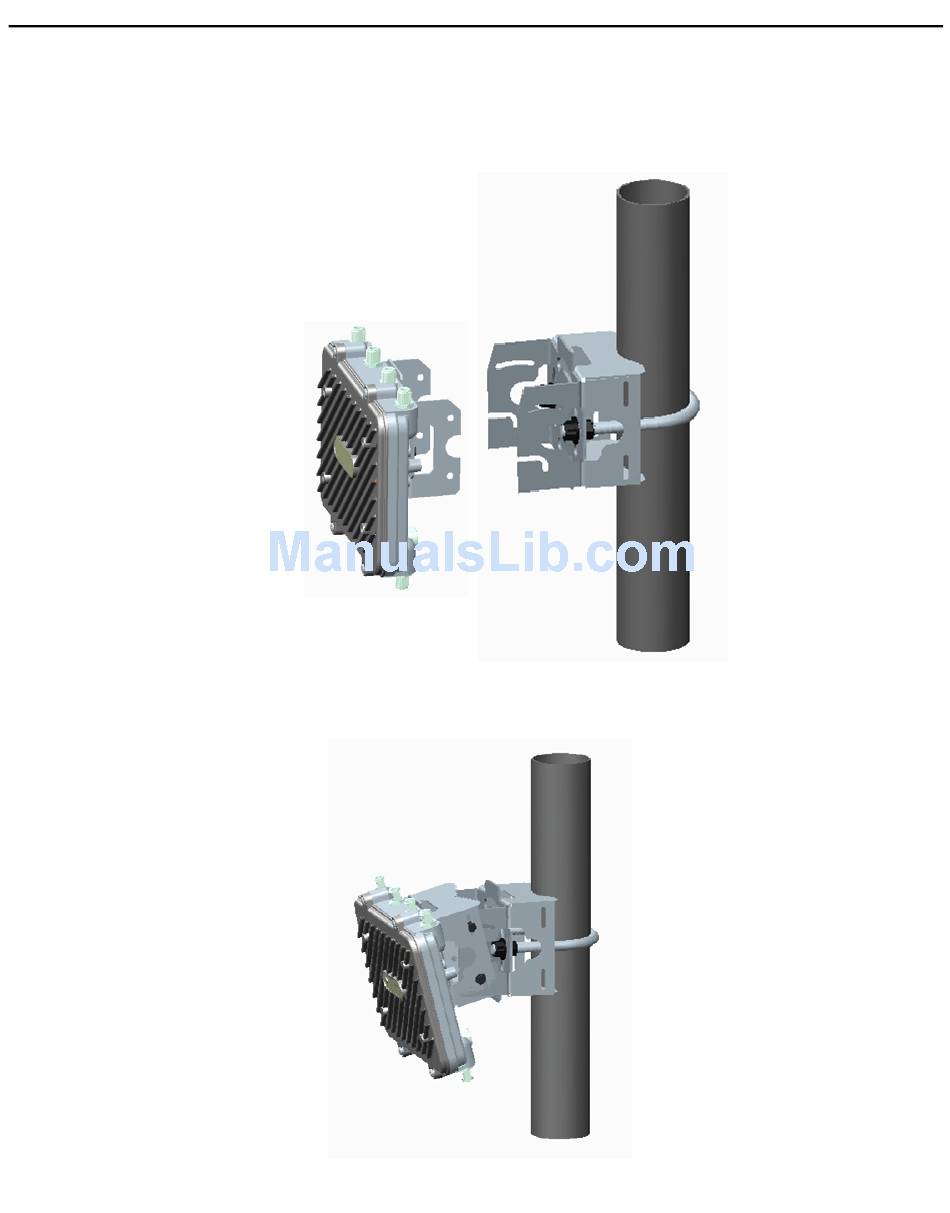

6. With the Access Point positioned so the gore vent is facing down, insert the two M6 hex flange screws
in the bottom holes on the sides of the Access Point bracket into the open slot connections on the bottom
of the angle adapter bracket.
7. Rotate the Access Point bracket upward and align the top holes on the sides with the top holes on the
angle adapter bracket. Insert two M6 hex flange screws into the top holes on the angle adapter bracket.
AP-7562 Access Point
