20
6. Using a 5mm allen wrench or box wrench, tighten the screws to 150 inch pounds (lbf-in).
7. Set the VMM and top bracket sub-assembly aside.
8. Locate the mount point position for the VMM in the vehicle. Ensure there is sufficient clearance for cables
and antennas. The surface should be metal (1.0 mm minimum thickness), hard plastic or plywood, and
capable of supporting the weight of the VMM and bracket assembly.
9. Attach the vehicle mount securely to the mount point with metal screws or bolts (not provided).

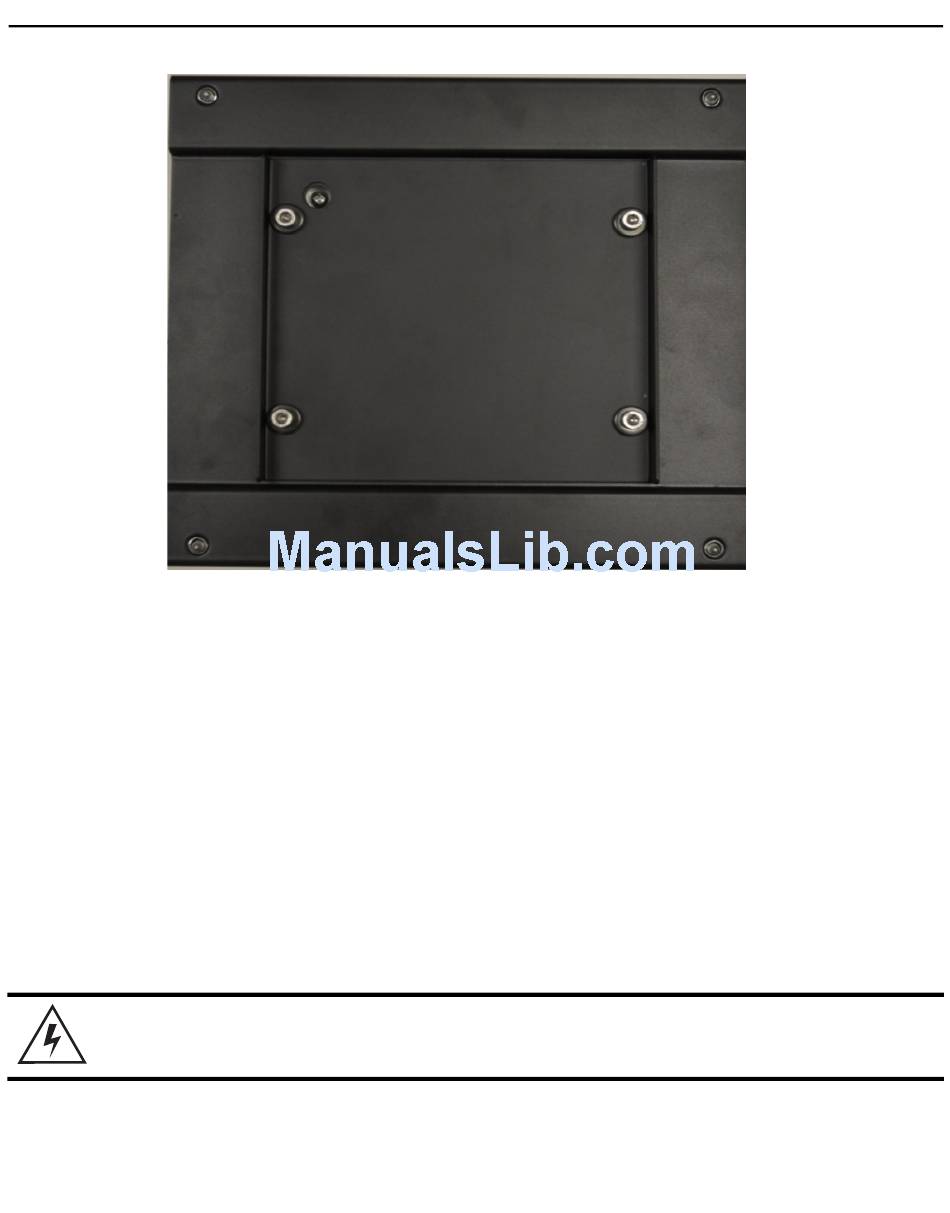

10. Securely attach the AP-7562 top bracket sub-assembly to the vehicle mount with the four pre-installed
thumb screws. Tighten the screws to 90 inch pounds (lbf-in) using a philips screwdriver or pliers.
11. Attach three RP-SMAF adapters (part number 25-90263-02R) to the N connectors on the active mobile
radio on the VMM. Radio 1 ports are labeled R1-A, R1-B, and R1-C. Radio 2 ports are labeled R2-A, R2-B,
and R2-C.
12. Attach the antennas to the adapters for each radio to be enabled.
13. Connect the CAT5E cable providing power to the RJ45 port labeled GE1/POE.
WARNING!
14. Select an Access Point Mode from the available options.
Connecting power to any other port could damage the unit.
AP-7562 Access Point
