14 ELECTRICAL SYSTEM
–

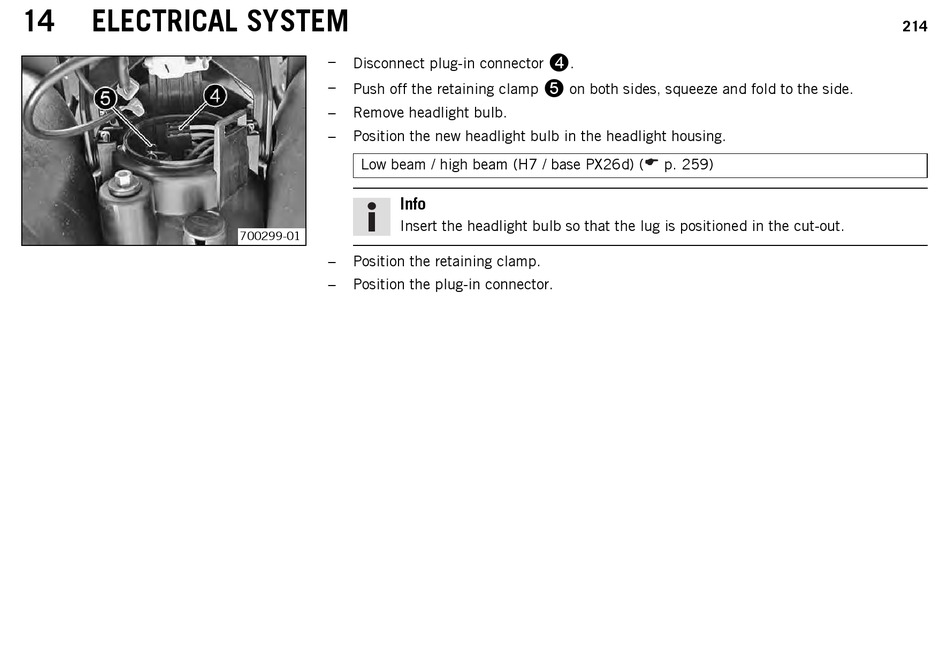

Disconnect plug-in connector
–
Push off the retaining clamp
–
Remove headlight bulb.
–
Position the new headlight bulb in the headlight housing.
Low beam / high beam (H7 / base PX26d) (
Info
Insert the headlight bulb so that the lug is positioned in the cut-out.
700299-01
–
Position the retaining clamp.
–
Position the plug-in connector.
4 .
5
on both sides, squeeze and fold to the side.
p. 259)
214
