10

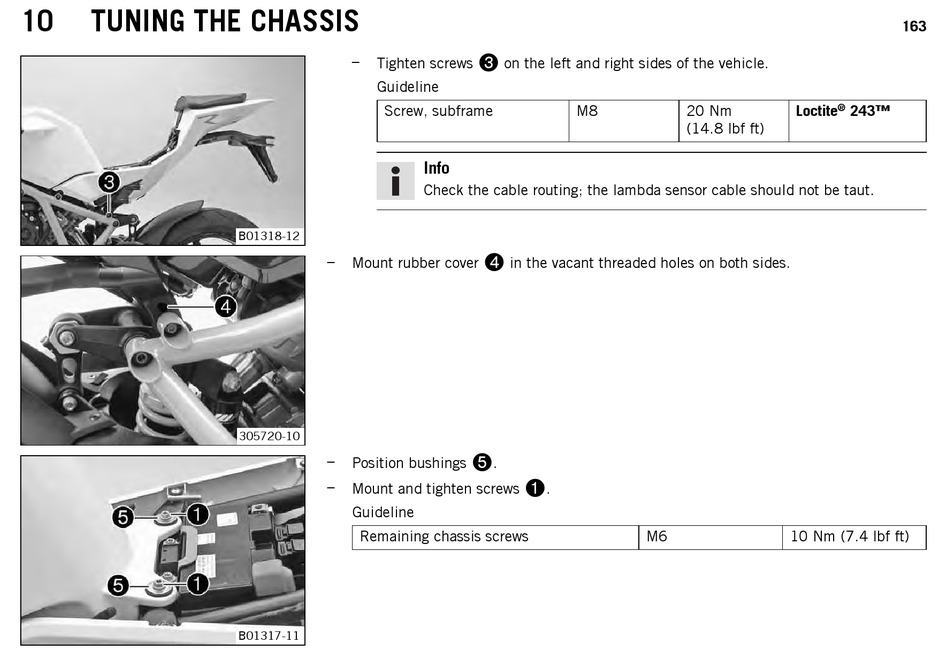

TUNING THE CHASSIS
–
Tighten screws
Guideline
Screw, subframe
B01318-12
–
Mount rubber cover
305720-10
–
Position bushings
–
Mount and tighten screws
Guideline
Remaining chassis screws
B01317-11
3
on the left and right sides of the vehicle.
M8
Info
Check the cable routing; the lambda sensor cable should not be taut.
4
in the vacant threaded holes on both sides.
5
.
1
.
20 Nm
Loctite
(14.8 lbf ft)
M6
10 Nm (7.4 lbf ft)
163
®
243™
