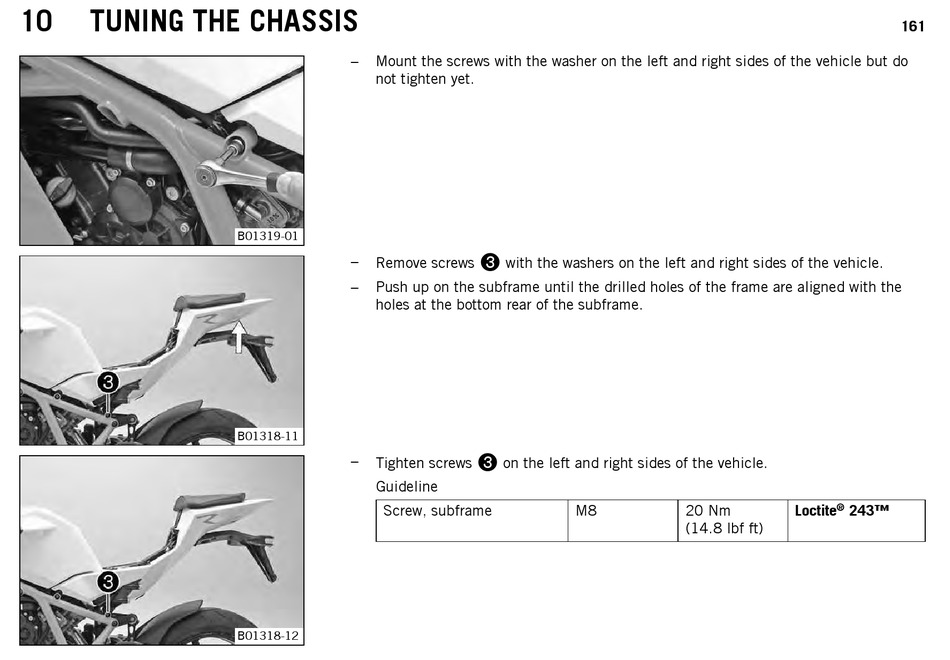

10 TUNING THE CHASSIS
–
Mount the screws with the washer on the left and right sides of the vehicle but do
not tighten yet.
B01319-01
–
Remove screws
–
Push up on the subframe until the drilled holes of the frame are aligned with the
holes at the bottom rear of the subframe.
B01318-11
–
Tighten screws
Guideline
Screw, subframe
B01318-12
3
with the washers on the left and right sides of the vehicle.
3
on the left and right sides of the vehicle.
M8 20 Nm Loctite ® 243™
(14.8 lbf ft)
161
