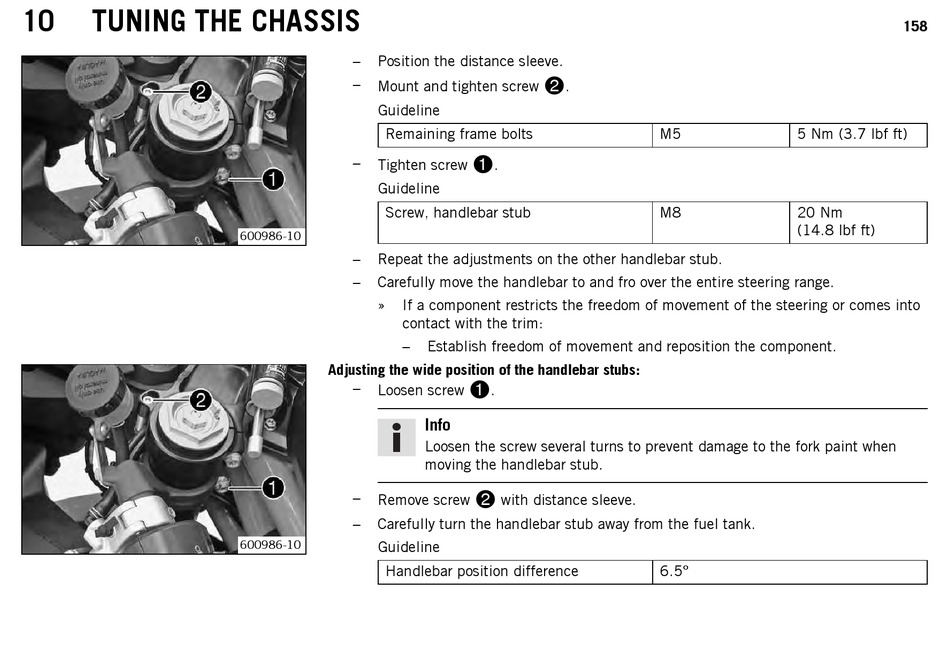

10 TUNING THE CHASSIS
–
Position the distance sleeve.
–
Mount and tighten screw
Guideline
Remaining frame bolts
–
Tighten screw
Guideline
Screw, handlebar stub
600986-10
–
Repeat the adjustments on the other handlebar stub.
–
Carefully move the handlebar to and fro over the entire steering range.
» If a component restricts the freedom of movement of the steering or comes into
contact with the trim:
–
Adjusting the wide position of the handlebar stubs:
–
Loosen screw
–
Remove screw
–
Carefully turn the handlebar stub away from the fuel tank.
600986-10 Guideline
Handlebar position difference
2
.
1
.
Establish freedom of movement and reposition the component.
1
.
Info
Loosen the screw several turns to prevent damage to the fork paint when
moving the handlebar stub.
2
with distance sleeve.
M5 5 Nm (3.7 lbf ft)
M8 20 Nm
(14.8 lbf ft)
6.5°
