11

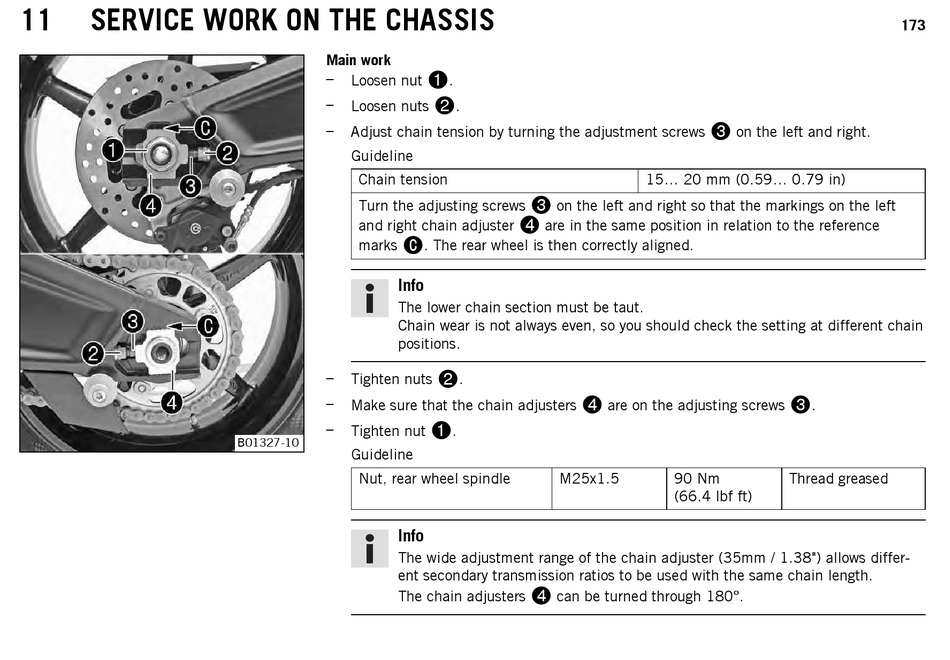

SERVICE WORK ON THE CHASSIS
Main work
–
Loosen nut
–
Loosen nuts
–
Adjust chain tension by turning the adjustment screws
Guideline
Chain tension
Turn the adjusting screws
and right chain adjuster
marks
C
Info
The lower chain section must be taut.
Chain wear is not always even, so you should check the setting at different chain
positions.
–
Tighten nuts
–
Make sure that the chain adjusters
–
Tighten nut
B01327-10
Guideline
Nut, rear wheel spindle
Info
The wide adjustment range of the chain adjuster (35mm / 1.38") allows differ-
ent secondary transmission ratios to be used with the same chain length.
The chain adjusters
1
.
2
.
3
on the left and right so that the markings on the left
4
are in the same position in relation to the reference
. The rear wheel is then correctly aligned.
2
.
4
1
.
M25x1.5
4
can be turned through 180°.
3
on the left and right.
15... 20 mm (0.59... 0.79 in)
are on the adjusting screws
90 Nm
(66.4 lbf ft)
173
3
.
Thread greased
