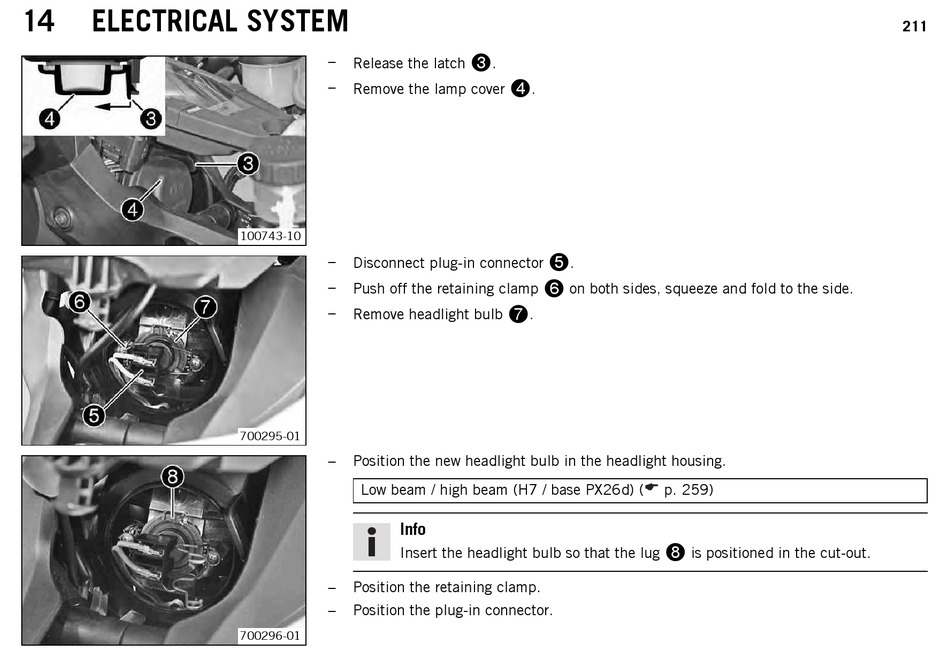

14 ELECTRICAL SYSTEM
–
Release the latch
–
Remove the lamp cover
100743-10
–
Disconnect plug-in connector
–
Push off the retaining clamp
–
Remove headlight bulb
700295-01
–
Position the new headlight bulb in the headlight housing.
Low beam / high beam (H7 / base PX26d) (
Info
Insert the headlight bulb so that the lug
–
Position the retaining clamp.
–
Position the plug-in connector.
700296-01
3 .
4
.
5
.
6
on both sides, squeeze and fold to the side.
7 .
p. 259)
8 is positioned in the cut-out.
211
