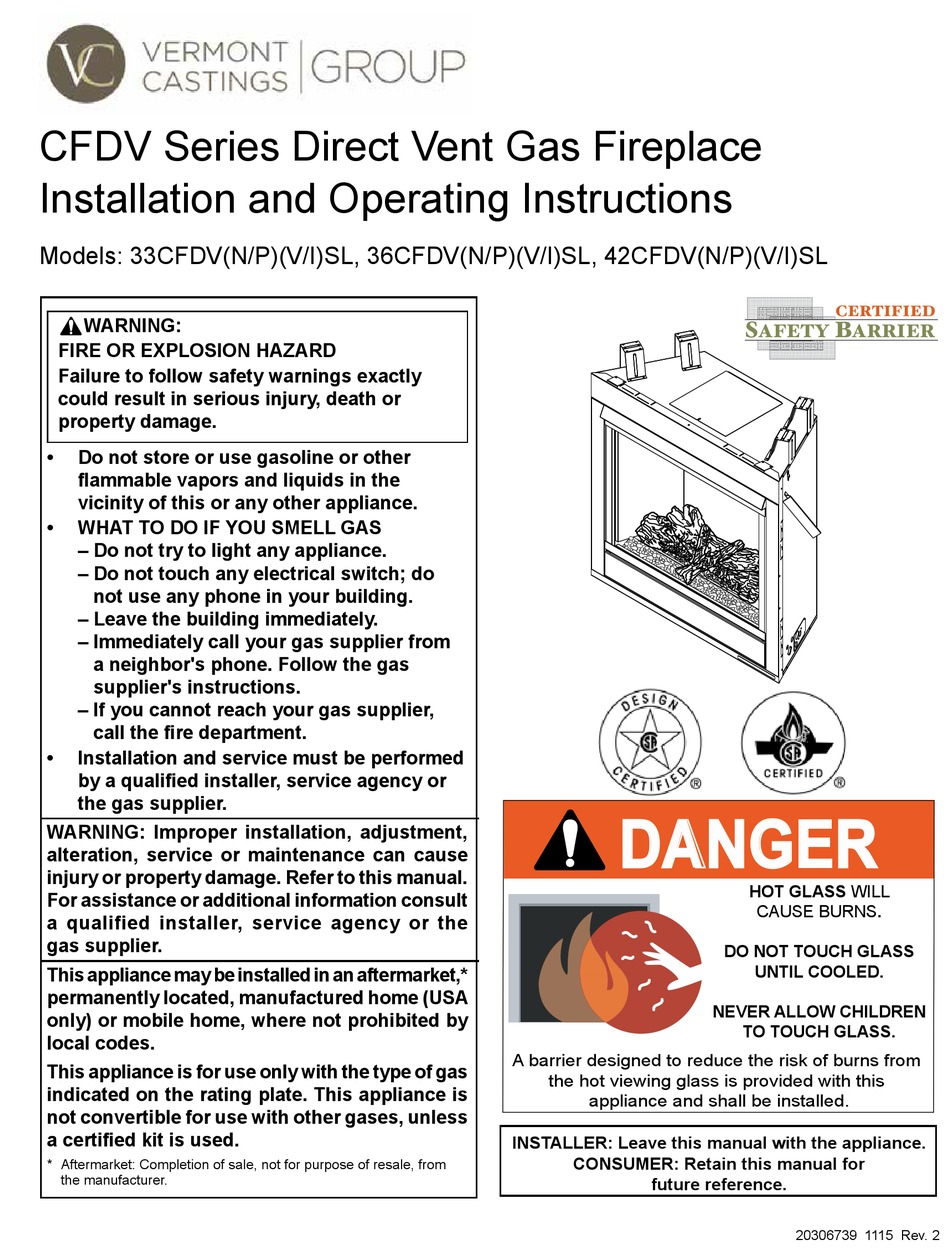

CFDV Series Direct Vent Gas Fireplace

Installation and Operating Instructions

Models: 33CFDV(N/P)(V/I)SL, 36CFDV(N/P)(V/I)SL, 42CFDV(N/P)(V/I)SL
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
– Do not try to light any appliance.
– Do not touch any electrical switch; do
not use any phone in your building.
– Leave the building immediately.
– Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
– If you cannot reach your gas supplier,
call the fire department.
Installation and service must be performed
by a qualified installer, service agency or
the gas supplier.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause
injury or property damage. Refer to this manual.
For assistance or additional information consult
a qualified installer, service agency or the
gas supplier.
This appliance may be installed in an aftermarket,*
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is for use only with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certified kit is used.
* Aftermarket: Completion of sale, not for purpose of resale, from
the manufacturer.
5832
36CFDV cover
DANGER
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this
appliance and shall be installed.
INSTALLER: Leave this manual with the appliance.
DANGER
CONSUMER: Retain this manual for
future reference.
CERTIFIED
S
B
AFETY
ARRIER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
Un panneau vitré chaud peut
20306739 1115 Rev. 2
causer des brûlures.
Laissez refroidir le panneau
vitré avant d'y toucher.

Advertisement

Table of Contents
loading

Summary of Contents for Vermont Castings 33CFDVNV

  • Page 1: Installation And Operating Instructions

    CFDV Series Direct Vent Gas Fireplace Installation and Operating Instructions Models: 33CFDV(N/P)(V/I)SL, 36CFDV(N/P)(V/I)SL, 42CFDV(N/P)(V/I)SL CERTIFIED WARNING: AFETY ARRIER FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death or property damage. • Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
  • Page 2: Table Of Contents

    CONTENTS PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING APPLIANCE. Thank you and congratulations on your purchase of a Vermont Castings Group fireplace. IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions fully may result in a possible fire hazard and will void the warranty.
  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION CFDV Series Gas Fireplace INSTALLER OWNER Please leave these instructions with the appliance. Please retain these instructions for future reference. WARNING: • Read this owner’s manual carefully and completely before trying to assemble, operate, or service this fireplace.
  • Page 4: Code Approval

    CFDV Series Gas Fireplace IMPORTANT SAFETY INFORMATION CODE APPROVAL 11. Do not modify fireplace under any circumstances. Any parts removed for servicing must be replaced prior to Direct Vent type appliances draw all combustion air from operating fireplace. outside of the dwelling through the vent pipe. 12.
  • Page 5: Product Features

    • This appliance is not for use with solid fuels. MODEL FUEL BTU/H BTU/H SIZE • The appliance is approved for bedroom or bedsitting room installations. 33CFDVNV NAT. 18,000 12,300 • The appliance must be installed in accordance with local 33CFDVPV 18,000 16,000 codes.
  • Page 6: Battery Back Up Kit

    PRODUCT FEATURES CFDV Series Gas Fireplace To activate the cold climate option, simply move the cold faster and more efficient. Operating your appliance in cold climate toggle switch located on the right side of the black climate (aka standing) pilot mode will prohibit the need for control center to the “On”...
  • Page 7: Pre-Installation Information

    PRE-INSTALLATION INFORMATION CFDV Series Gas Fireplace BEFORE YOU START Read this homeowner manual thoroughly and follow all instructions carefully. Inspect all contents for shipping damage and immediately inform your dealer if any damage is found. Do not install any unit with damaged, incomplete, or substitute parts.
  • Page 8: Fireplace & Framing Dimensions

    PRE-INSTALLATION INFORMATION CFDV Series Gas Fireplace REFERENCE 33CFDV 36CFDV 42CFDV FIREPLACE DIMENSIONS 33" (838 mm) 37" (940 mm) 41" (1042 mm) ⁄ " (905 mm) ⁄ " (978 mm) ⁄ " (978 mm) ⁄ " (810 mm) ⁄ " (883 mm) ⁄...
  • Page 9: Fireplace Location

    CLEARANCES CFDV Series Gas Fireplace FIREPLACE LOCATION CLEARANCES TO COMBUSTIBLES Plan for the installation of your appliance. This includes WARNING determining where the unit is to be installed, the vent con- figuration to be used, framing and finishing details, and Follow these instructions carefully to ensure safe whether any optional accessories (i.e.
  • Page 10: Mantel Clearances

    CFDV Series Gas Fireplace FIREPLACE INSTALLATION SECURE FIREPLACE TO FLOOR OR MANTEL CLEARANCES FRAMING NOTE: The combustible area above the facing must not protrude more than 3/4" (19 mm) from the facing. If it The fireplace must be secured to the floor and/or to framing does, it is considered a mantel and must meet the mantel studs as shown in Figure 10.
  • Page 11: Venting Installation Information

    VENTING INSTALLATION CFDV Series Gas Fireplace OPTIONAL TOP VENT APPLICATION 3. Remove the plate with the 4" collar and gasket by re- moving four (4) screws. Set aside. Figure 13 The appliance is shipped as a rear vent unit. If the installa- 4.
  • Page 12 VENTING INSTALLATION CFDV Series Gas Fireplace 6. Remove the large square plate and gasket by removing 8. Install the plate with the 4" collar and gaskets on top of the eight (8) screws. Set aside. Figure 15 the unit with screws previously removed. 9.
  • Page 13: Installation Precautions

    Failure to do so could result in serious injury, property damage or • Only Vermont Castings Group venting components loss of life. Operation of improperly installed and specifically approved and labeled for this fireplace maintained venting system could result in serious may be used.
  • Page 14: Termination Location

    † A vent shall not terminate directly above a sidewalk or paved clearances tested and approved by the listing agency. driveway which is located between two single family dwellings and 3. Vermont Castings Group assumes no responsibility for serves both dwellings the improper performance of the appliance when the venting  Only permitted if veranda, porch, deck or balcony is fully open on a system does not meet these requirements.
  • Page 15: Termination Clearances

    Figure 19 – Termination Clearances ASSEMBLING VENT PIPE Only venting components manufactured or approved by Vermont Castings Group may be used in Direct Vent sys- tems. USA Installations The venting system must conform to local codes and/or the current National Fuel Code ANSI Z223.1/NFPA 54.
  • Page 16: How To Use The Vent Graph

    VENTING INSTALLATION CFDV Series Gas Fireplace HOW TO USE THE VENT GRAPH SLP PIPE The Vent Graph should be read in conjunction with the When using SLP pipe it is not necessary to use sealant following vent installation instructions to determine the re- on the joints.
  • Page 17: Additional Assembly Instructions

    VENTING INSTALLATION CFDV Series Gas Fireplace ADDITIONAL ASSEMBLY INSTRUCTIONS 1. Assemble Slip Sections The outer flue of the slip section should slide over the outer flue of the pipe section and into the inner flue of the last pipe section (see Figure 22A). Slide together to the desired length, making sure that ⁄...
  • Page 18: Disassemble Vent Sections

    HOW TO USE THE VENT GRAPH CFDV Series Gas Fireplace VENT PIPE CLEARANCES WARNING All vertical sections of this vent system require a minimum of 1" (25 mm) clearance to combustibles on all sides of the pipe. WARNING Rear Wall Vent: Horizontal sections of this vent system require a minimum of 3"...
  • Page 19: Inner Flex Vent Pipe

    Clearance to the Top Is Required Along Horizontal • Only Vermont Castings Group approved venting com- Length until Flue Pipe ponents are approved to be used in these applications Penetrates Outside Wall. (Refer to ‘Venting Components’ listed for different in- 1 "...
  • Page 20: Slp-Rvtm - Horizontal Termination Kit

    CFDV Series Gas Fireplace VENTING INSTALLATION Installing the outer flex pipe. Figure 30 ing with trim or “J channel” and caulking to prevent wa- ter from leaking into the building. Figure 13 1. Slide the large gear clamp over the outer flexible vent pipe, and push out of the way.
  • Page 21: Rear Wall Vent Installation-Flex Vent Pipe

    VENTING INSTALLATION CFDV Series Gas Fireplace Finish Wall Vent Rise Termination Firestop FP1472 Figure 33 – There must be a 1/2" rise per foot length TOP VENT SIDE WALL APPLICATION Since it is very important that the venting system FP2294 Figure 31 –...
  • Page 22 VENTING INSTALLATION CFDV Series Gas Fireplace 3 x 90° 3 x 90° Elbows Elbows A + B = 17' (Max.) (5.2m) FP1176 7'6" Figure 34 – (2.3m) Maximum three (3) 90° elbows per installation 36" (914mm) Max. 36" (914mm) Figure 36 – Max.
  • Page 23: Vertical Side Wall Applications

    VENTING INSTALLATION CFDV Series Gas Fireplace VERTICAL SIDE WALL APPLICATIONS For all vertical Side wall installations, the supplied flue restrictors must be installed. Install the flue restrictor according to the settings shown in the Vertical Side wall Installation Flue Restrictor Chart in order to balance the airflow in and out of the unit and to maintain proper flame height.
  • Page 24 CFDV Series Gas Fireplace VENTING INSTALLATION Vent Opening for Combustible Walls 9" (244 mm) 9" (244 mm) Fireplace Hearth Framing Detail Opening for Noncombustible Wall 7" (190 mm) FP1182 Figure 44 – Horizontal Length Requirement Fireplace Hearth Figure 42 – to the wall with screws provided and caulk around the wall Locate Vent Opening on Wall plate to weatherproof.
  • Page 25: Slp-Hsftk - Horizontal Termination Kit

    VENTING INSTALLATION CFDV Series Gas Fireplace SLP-HSFTK – HORIZONTAL TERMINATION 12. Slide 4" inner flex pipe over the inner flex adapter on the slip section and secure it with one (1) small band clamp and three (3) self tapping #10 screws. Figure 46 13.
  • Page 26: Below Grade Installation

    CFDV Series Gas Fireplace VENTING INSTALLATION 5. Apply high temperature sealant caulking (supplied) Termination Cap with slip section around the 4" and 7" snorkel collars. 6. Slide the snorkel into the vent pipes and secure to the wall. SLP Inner Flex 7.
  • Page 27: Vertical Through-The-Roof Application

    VENTING INSTALLATION CFDV Series Gas Fireplace VERTICAL THROUGH-THE-ROOF APPLICATION This gas fireplace has been approved for: • Vertical installations up to 40' (12 m) in height. Up to For all vertical through-the-roof installations, the supplied a 10' (3 m) horizontal vent run can be installed within flue restrictors must be installed.
  • Page 28: Vertical Through-The-Roof Installation

    VENTING INSTALLATION CFDV Series Gas Fireplace 1 + 2 + 3 + 4 = 270° UL1777 Secure Screws Flex Vent (3 Places Equidistant Just Above Gear Clamp) 2" Flexible Pipe and Adapter Outer Collar Overlap Flex Adapter Gear Clamps Starter Appliance FP1179 Starting...
  • Page 29 VENTING INSTALLATION CFDV Series Gas Fireplace NOTE: Flex vent pipe spacers: Refer to manufacturer’s specifications for correct positioning of the spacer springs to maintain proper distance between inside and outside pipe. Attic Above Install the Ceiling Firestop • Frame an opening 9 in. x 9 in. (229 mm x 229 mm) whenever the vent system penetrates a ceiling/floor .
  • Page 30: Attic Shield Installation

    VENTING INSTALLATION CFDV Series Gas Fireplace Install Attic Insulation Shield • Bend remaining tabs inward on bottom of shield where it rests on the ceiling firestop to maintain the air space between the pipe and shield. Set the shield WARNING! Fire Risk. DO NOT allow loose ma- on the ceiling firestop.
  • Page 31 VENTING INSTALLATION CFDV Series Gas Fireplace Caulk the gap between the roof flashing and the outside 2 x 4 Framing diameter of the pipe. Caulk the perimeter of the flashing Screw Clamping Bolts where it contacts the roof surface. Pipe Leveling Caulk Bolts...
  • Page 32: Vertical Termination Kit Installation

    VENTING INSTALLATION CFDV Series Gas Fireplace Install Vertical Termination Cap Termination Cap To attach the vertical termination cap, slide the inner col- lar of the cap into the inner flue of the vent section and place the outer collar of the cap over the outer flue of the vent section.
  • Page 33: Gas Pipe Installation

    GAS PIPE INSTALLATION CFDV Series Gas Fireplace CHECK GAS TYPE Use proper gas type for the fireplace you are installing. If you have conflicting gas type, do not install fireplace. See dealer where you purchased the fireplace for proper fireplace for your gas type or conversion kit. 100 lb.
  • Page 34: Gas Pipe Installation

    GAS PIPE INSTALLATION CFDV Series Gas Fireplace GAS PIPE INSTALLATION CHECK GAS PRESSURE – MILLIVOLT 1. Check gas type. The gas supply must be the same as WARNING stated on the appliance’s rating decal. If the gas supply Only persons licensed to work with natural or is different from the fireplace, STOP! Do not install the liquid propane gas may make the necessary gas appliance.
  • Page 35: Electrical Installation - Millivolt

    ELECTRICAL INSTALLATION – MILLIVOLT CFDV Series Gas Fireplace JUNCTION BOX WIRING 4. To adjust flame height, turn HI/LO knob to HI to get maximum pressure to burner. Turn HI/LO knob to LO 1. This should be done before framing the fireplace. Wire to get minimum pressure.
  • Page 36: Remote Wall Mounted Switch

    ELECTRICAL INSTALLATION – MILLIVOLT CFDV Series Gas Fireplace REMOTE WALL MOUNTED SWITCH WARNING A remote wall switch and up to fifteen (15) feet of 18 Ga. Do NOT connect wall switch to 110V circuit. wire may be used with this appliance. Attach the wall switch in a junction box at the desired location on the wall.
  • Page 37: Optional Fan/Blower System Blot

    ELECTRICAL INSTALLATION – MILLIVOLT CFDV Series Gas Fireplace OPTIONAL FAN/BLOWER SYSTEMS – BLOT The junction box for the fan/blower systems has been factory installed. This system requires that 110-120 VAC to be wired to the factory installed junction box before the fireplace is permanently installed.
  • Page 38: Operating Instructions - Millivolt

    OPERATING INSTRUCTIONS – MILLIVOLT CFDV Series Gas Fireplace FOR YOUR SAFETY READ BEFORE LIGHTING WARNING If you do not follow these instructions exactly, a fire or explosion may result, causing property damage, personal injury or loss of life. A. This appliance is equipped with a pilot which must be lit with built-in piezo ignitor while following these instructions exactly.
  • Page 39: Lighting Pilot

    OPERATING INSTRUCTIONS – MILLIVOLT CFDV Series Gas Fireplace LIGHTING PILOT FOR THE FIRST TIME APPROVED LEAK TESTING METHOD You may check for gas leaks with the following methods only: • Soap and water solution • An approved leak testing spray •...
  • Page 40: Lighting Burner

    OPERATING INSTRUCTIONS – MILLIVOLT CFDV Series Gas Fireplace LIGHTING BURNER LIGHTING THE BURNER Depress and turn the knob counterclockwise to the “ON” position. It will take less than four (4) seconds for the burner to ignite. MAIN BURNER SWITCH This switch allows you to turn on and to turn off the main burner without using the gas valve knob.
  • Page 41: Check Gas Pressure And Electrical Installation - Ipi

    CHECK GAS PRESSURE and ELECTRICAL INSTALLATION – IPI CFDV Series Gas Fireplace ELECTRICAL WIRING CHECK GAS PRESSURE – IPI General 1. Check gas type. The gas supply must be the same as stated on the appliance’s rating decal. If the gas supply 1.
  • Page 42: Junction Box Wiring

    ELECTRICAL INSTALLATION – IPI CFDV Series Gas Fireplace WALL SWITCH INSTALLATION JUNCTION BOX WIRING 1. This should be done before framing the fireplace. Wire The wall switch wire connection is located off the wire the receptacle into an electrical circuit. Wire with mini- harness coming out of the IPI Control Board.
  • Page 43: Ipi System Wiring Diagram

    ELECTRICAL INSTALLATION – IPI CFDV Series Gas Fireplace IPI SYSTEM WIRING DIAGRAM Figure 76 – IPI System Wiring Diagram Electrical connections should only be performed by a qualified, licensed electrician. Main power supply must be turned off before connecting fans to the main electrical power supply or performing service.
  • Page 44: Operating Instructions - Ipi

    CFDV Series Gas Fireplace OPERATING INSTRUCTIONS – IPI FOR YOUR SAFETY READ BEFORE LIGHTING WARNING If you do not follow these instructions exactly, a fire or explosion may result, causing property damage, personal injury or loss of life. A. This appliance is equipped with an ignition device which automatically lights the pilot. Refer to the instructions.
  • Page 45: Operating Instructions

    OPERATING INSTRUCTIONS – IPI CFDV Series Gas Fireplace OPERATING INSTRUCTIONS 1. STOP! Read the safety information above. 2. This appliance is equipped with an ignition device which automatically lights the burner. Do not try to light the burner by hand. 3.
  • Page 46: Ecologic Control System Operation And Indications

    CFDV Series Gas Fireplace OPERATING INSTRUCTIONS – IPI ® OPERATIONS AND INDICATIONS Cold Climate Switch CONTROL BOARD Master Switch System Set Up Chart NOTE: When using ON/OFF wall switch, the master switch, located in bottom of fireplace must be in the ON position to perform all configuration setup operations.
  • Page 47: Final Installation

    FINAL INSTALLATION CFDV Series Gas Fireplace GLASS FRAME REMOVAL Each latch has a quick spring force. When NOTE: You must first remove the safety barrier before you reinstalling glass, keep fingers clear. remove the glass frame. To remove the barrier, simply lift up and pull out until the tabs are clear of their corresponding slots on the firebox.
  • Page 48: Pilot Flame

    CFDV Series Gas Fireplace FINAL INSTALLATION PILOT FLAME PILOT FLAME The flames from the pilot should be visually checked as Firebrick and porcelain liner kits are approved to be used soon as the heater is installed and periodically during with with your fireplace. Before you begin installation, en- normal operation.
  • Page 49: Installing Brick Liner Kit

    FINAL INSTALLATION CFDV Series Gas Fireplace Retainer Top Flange Bracket Left Panel Left Panel Rear Panel KT1892 Rear Panel KT1893 Right Panel Right Panel Figure 81 – Figure 82 – KT1892 Porcelain liner installation Firebrick liner installation porcelain panels KT1893 INSTALLING BRICK LINER KIT firebrick Kit contents:...
  • Page 50: Adjustable Baffle

    FINAL INSTALLATION CFDV Series Gas Fireplace LOG PLACEMENT WARNING 1. Place rear log (#1) on the two (2) brackets in the back The use of too much rock wool could cause flame of the firebox. The log should be placed between the to burn poorly and may cause sooting.
  • Page 51: Lava Rock And Ember Placement

    FINAL INSTALLATION CFDV Series Gas Fireplace LAVA ROCK PLACEMENT Sprinkle lava rock on the raised floor of the inner combus- tion chamber. Evenly distribute the rock. Figure 89 WARNING Do not sprinkle the lava rock on top of the burner. This may cause sooting, glass breakage and a fire hazard.
  • Page 52: Fireglass And Stone Placement

    FINAL INSTALLATION CFDV Series Gas Fireplace Pilot Shield WARNING Turn off gas before servicing fireplace. It is recommended that a qualified service technician perform these check-ups at the beginning of each heating season. FIREGLASS AND STONE PLACEMENT Your CFDV fireplace system is designed to be configured in a traditional format (with logs) or a contemporary design (using fireglass and stones).
  • Page 53: Fireglass Only Placement

    FINAL INSTALLATION CFDV Series Gas Fireplace FIREGLASS ONLY PLACEMENT DANGER Mix the fireglass and sprinkle over the burner, false bot- tom and on the inclined front edge of the false bottom. Build the glass up toward the top of the incline. HOT GLASS WILL NOTE: Do not allow glass down in the pilot area to elimi- CAUSE BURNS.
  • Page 54: Safety, Cleaning And Maintenance

    CLEANING AND MAINTENANCE CFDV Series Gas Fireplace BURNER, PILOT AND CONTROL LOGS COMPARTMENT Leave logs installed in the fireplace for cleaning. Vacuum surface of the logs with a brush attachment. If logs must Keep the control compartment, logs, and burner areas be removed for cleaning, handle carefully by holding gently surrounding the logs clean by vacuuming or brushing at at each end.
  • Page 55: Troubleshooting

    TROUBLESHOOTING CFDV Series Gas Fireplace MILLIVOLT STANDING PILOT IGNITION SYMPTOM POSSIBLE CAUSE ACTION 1. Spark ignitor will not light A. Wire disconnected. A. Open door and check to make sure wire is connected pilot after repeated trig- to ignitor. gering of piezo. B.
  • Page 56: Ipi System

    TROUBLESHOOTING CFDV Series Gas Fireplace IPI SYSTEM Flip the master switch to the ON position. Make sure control board is connected to battery pack Battery polarity wrong? Reinstall batteries correctly. No beep or flashing wire harness. green light after Make sure AC adaptor is 5 seconds.
  • Page 57: All Control/Pilot Systems

    OPTIONAL ACCESSORIES CFDV Series Gas Fireplace ALL PILOT/CONTROL SYSTEMS SYMPTOM POSSIBLE CAUSE ACTION Inner vent pipe leaiking exhaust Check for product leak. Replace defective gasses back into system pipe section. Check that horizontal venting pipe is The pilot and main burner Horizontal vent improperly pitched.
  • Page 58: Replacement Parts

    REPLACEMENT PARTS CFDV Series Gas Fireplace FIREBOX COMPONENTS DESCRIPTION QUANTITY 33CFDV 36CFDV 42CFDV Standard Features 5832 Junction Box Assembly 26D2128K 26D2128K 26D2128K 36cfdv log parts Face Frame 20305996 20306783 20306908 Canopy 20305551 20305998 20306094 Glass Frame Assembly 20305556K 20305406K 20305624K Safety Barrier (Post 2015) 33CFDVSB 36CSB...
  • Page 59: Standing Pilot-Millivolt Control

    14 Wall Switch Assembly 54D0691 54D0691 54D0691 54D0691 54D0691 54D0691 Fuel Conversion Kits – Millivolt Natural Gas to LP 33CFDVNV: Kit #33CFDVCKPV 36CFDVNV: Kit #36CFDVCKPV 42CFDVNV: Kit #42CFDVCKPV LP to Natural Gas 33CFDVPV: Kit #33CFDVCKNV 36CFDVPV: Kit #36CFDVCKNV 42CFDVPV: Kit #42CFDVCKNV 20306739...
  • Page 60: Ipi System

    REPLACEMENT PARTS CFDV Series Gas Fireplace IPI CONTROL DESCRIPTION QTY 33CFDVNI 33CFDVPI 36CFDVNI 36CFDVPI 42CFDVNI 42CFDVPI 1 Burner Assembly 20305595K 20305595K 20305899K 20305899K 20305809K 20305809K 2 Burner Tube 20306019K 20306019K 20306019K 20306019K 20306019K 20306019K 3 Gas Valve Assembly 95E0101 95E0102 95E0101 95E0102 95E0101...
  • Page 61: Venting Components

    VENTING COMPONENTS CFDV Series Gas Fireplace VERTICAL VENTING CATEGORY DESCRIPTION MODEL NUMBER Vertical Vent Termination Kits Vertical termination cap – high wind (includes storm collar) SLP-TVHW 0/12 – 6/12 roof flashing (multi-pack of 6) SLP-RF6M 7/12 – 12/12 roof flashing (multi-pack of 6) SLP-RF12M 3"...
  • Page 62: Horizontal Venting

    VENTING COMPONENTS CFDV Series Gas Fireplace HORIZONTAL VENTING CATEGORY DESCRIPTION MODEL NUMBER Horizontal Vent Termination Rear vent termination kit includes adjustable termination cap, SLP-RVTK Kits 1" firestop, 9" – 12" adjustable termination pipe Horizontal vent termination kit includes adjustable termination SLP-HVTK cap, 1"...
  • Page 63 OPTIONAL ACCESSORIES CFDV Series Gas Fireplace VENT ADAPTERS FOR 4" x 7" TWIST LOCK SLP PART NO. QTY/BOX DESCRIPTION SLP-DVFAM SLP flex adapter kit w/gear clamps (multi-pack of 4) SLPMP SLP unit and inline pipe adapter to 4" x 7" Twist Lock (carton of 8) MBSLP VCG fireplace unit adapter to SLP (Carton of 8) MPSLP...
  • Page 64: Massachusetts Requirements

    MASSACHUSETTS RESIDENTS ONLY CFDV Series Gas Fireplace Please read and follow these special requirements NOTE REGARDING VENTED PRODUCTS 2. Approved Carbon Monoxide Detectors. Each carbon This product must be installed by a licensed plumber or gas fitter monoxide detector as required in accordance with the above when installed within the Commonwealth of Massachusetts.
  • Page 65: Limited Lifetime Warranty Policy

    This warranty is expressly in lieu of other warranties, express or implied, including the warranty of merchant- ability of fitness for purpose and of all other obligations or liabilities. Vermont Castings Group does not assume for it any other obligations or liabilities in connection with sale or use of the appliance. In states that do not allow limitations on how long an implied warranty lasts, or do not allow exclusion of indirect damage, those limitations of exclusions may not apply to you.
  • Page 66 CFDV Series Gas Fireplace 20306739...
  • Page 67 CFDV Series Gas Fireplace 20306739...
  • Page 68: Efficiency Ratings

    Based on CSA P.4.1-09 EFFICIENCY RATINGS ENERGUIDE RATINGS FIREPLACE EFFICIENCY D.O.E. MODEL PERCENTAGE (AFUE PERCENTAGE) 33CFDVNV 40.7 59.70 33CFDVPV 42.3 63.83 33CFDVNI 40.4 59.70 33CFDVPI 47.0 63.83 Recherchez dans la brochure 36CFDVNV 59.4 62.01 les caractéristique de rendement 36CFDVPV 49.9 66.16...
