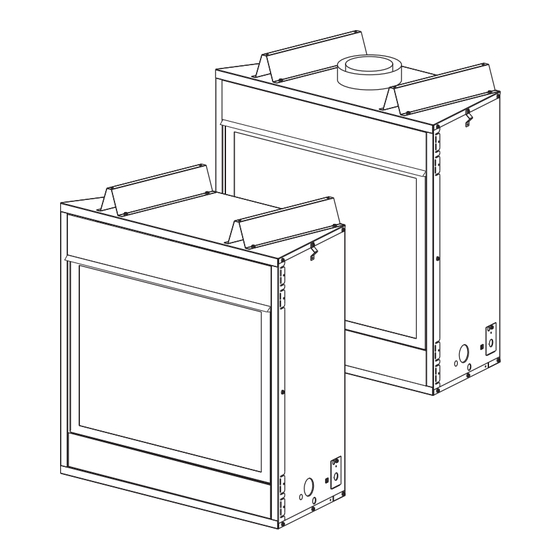

Builder Direct Vent
Models:
36CDVZRRN
36CDVZTRN
Installation Instructions and
Homeowner's Manual
14621
CDVRZ cover
4/09
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
(Rear Vent)
(Top Vent)
20014621 7/13 Rev. 9
