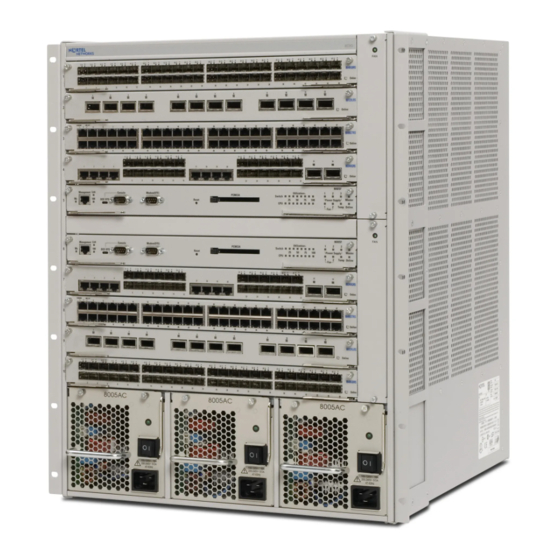

Nortel Ethernet Routing Switch 8600
Installation — AC Power Supply
Release: 5.0
Document Revision: 02.01
www.nortel.com
NN46205-306
312751-F Rev 01
.

Advertisement

Table of Contents
loading

Related Manuals for Nortel 8600

Summary of Contents for Nortel 8600

  • Page 1 Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply Release: 5.0 Document Revision: 02.01 www.nortel.com NN46205-306 312751-F Rev 01...
  • Page 2 ANY KIND, EITHER EXPRESS OR IMPLIED. The information and/or products described in this document are subject to change without notice. Nortel, the Nortel logo, the Globemark, and Passport are trademarks of Nortel Networks. All other trademarks are the property of their respective owners.

  • Page 3: Table Of Contents

    Replacing the 8010co chassis bottom bezel model 321325-A 50 Translations of safety messages Class A product caution statement 53 Electrostatic discharge caution statement 54 Copyright © 2008 Nortel Networks Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008...
  • Page 4 AC input power specifications 62 DC output power specifications 63 Power cord specifications for 8005AC and 8005DI AC power supplies Index Copyright © 2008 Nortel Networks Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008...

  • Page 5: Regulatory Information And Safety Precautions

    Copyright © 2008 Nortel Networks Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008...
  • Page 6 Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard...
  • Page 7 Class A requirements of the Republic of Korea Ministry of Information and Communications (MIC). This device may not be sold for use in a non-business application. Copyright © 2008 Nortel Networks Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008...
  • Page 8 Importer: Copyright © 2008 Nortel Networks Nortel Networks, Inc. 4655 Great America Parkway Santa Clara CA 95054 USA Nortel Networks de México, S.A. de C.V. Avenida Insurgentes Sur #1605 Piso 30, Oficina Col. San Jose Insurgentes Deleg-Benito Juarez Nortel Ethernet Routing Switch 8600 Installation —...
  • Page 9 200-240 VAC, 50-60 Hz, 9.3 A maximum for each power supply Nortel Networks, Inc. 4655 Great America Parkway Santa Clara, CA 95054 USA Nortel Networks de México, S.A. de C.V. Avenida Insurgentes Sur #1605 Piso 30, Oficina Col. San Jose Insurgentes Deleg-Benito Juarez México D.F.

  • Page 10: Safety Messages

    This section describes the different precautionary notices used in this document. This section also contains precautionary notices that you must read for safe operation of the Nortel Ethernet Routing Switch 8600. Notices Notice paragraphs alert you about issues that require your attention.
  • Page 11 Nortel. CAUTION Caution notices provide information about how to avoid possible service disruption or damage to Nortel products. Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008...
  • Page 12 Nortel. WARNING WARNUNG Warnhinweise bieten Informationen dazu, wie man Personenschäden bei der Arbeit mit Nortel-Produkten verhindert. Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008...
  • Page 13 Avisos de Perigo—Alta Tensão oferecem informações sobre como evitar uma situação ou condição que possa causar graves ferimentos ou morte devido a alta tensão ou choques elétricos. Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard...
  • Page 14 DANGER PERICOLO Le indicazioni di pericolo forniscono informazioni per evitare situazioni o condizioni che potrebbero causare gravi danni alle persone o il decesso. Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008...

  • Page 15: Software License

    30 days of purchase to obtain a credit for the full purchase price. "Software" is owned or licensed by Nortel Networks, its parent or one of its subsidiaries or affiliates, and is copyrighted and licensed, not sold. Software consists of machine-readable instructions, its components, data, audio-visual content (such as images, text, recordings or pictures) and related licensed materials including all whole or partial copies.
  • Page 16 Upon termination or breach of the license by Customer or in the event designated hardware or CFE is no longer in use, Customer will promptly return the Software to Nortel Networks or certify its destruction. Nortel Networks may audit by remote polling or other reasonable means to determine Customer’s Software activation or usage levels.
  • Page 17 Customer fails to comply with the terms and conditions of this license. In either event, upon termination, Customer must either return the Software to Nortel Networks or certify its destruction. Customer is responsible for payment of any taxes, including personal property taxes, resulting from Customer’s use of the Software.
  • Page 18 18 Software license Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008 Copyright © 2008 Nortel Networks...

  • Page 19: New In This Release

    The 8005DI AC power supply is a dual AC input, 1170/1492 watts (W) AC-DC power supply. This power supply is hot swappable. You can remove the power supply from the Ethernet Routing Switch 8600 without powering off the system. For more information about the 8005DI AC power supply functioning, see “8005DI AC power supply”...
  • Page 20 20 New in this release Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008 Copyright © 2008 Nortel Networks...

  • Page 21: Introduction

    Introduction This guide provides information about the following AC power supplies used in the Ethernet Routing Switch 8600 chassis: • 8003AC • 8004AC • 8005AC • 8005DI AC This guide also provides instructions for adding an AC power supply in the following Ethernet Routing Switch 8600 chassis models: •...

  • Page 22: Task And Estimated Time

    Task and estimated time The following table lists the estimated time to install an AC power supply for the Ethernet Routing Switch 8600. The installation time depends on the chassis model and the number of power supplies you are installing.

  • Page 23: Ac Power Supply Fundamentals

    AC power supply fundamentals This chapter provides basic information about the Ethernet Routing Switch 8600 AC power supplies of the Ethernet Routing Switch 8600 chassis. Navigation • “Minimum number of power supplies required” (page 23) • “Redundant power configuration” (page 23) •...
  • Page 24 The 8005DI AC power supply can receive AC input power from two different AC power sources. This allows the Ethernet Routing Switch 8600 to maintain full operation if you operate the 8005DI AC power supply from an A or B AC input feed alone.
  • Page 25 You can configure the Ethernet Routing Switch 8600 with any combination of 8005 AC and 8005DI AC input power supplies, depending on the system load and power system requirements for redundancy. For feed redundancy, you can install up to three 8005DI AC power supplies.

  • Page 26: 8003Ac Power Supply

    8003AC power supply The following figure shows the 8003AC power supply. Figure 4 8003AC power supply For information about the specifications of the 8003AC power supply, see “Specifications: 8003AC power supply” (page Copyright © 2008 Nortel Networks Nortel Ethernet Routing Switch 8600 Installation —...

  • Page 27: 8004Ac Power Supply

    For the 8003 chassis, the number of power supplies (one or two) that you need to install depends on whether you want an optional redundant power supply. The 8003 chassis with the Ethernet Routing Switch 8600 Software Release 5.0 does not support the following R or RS modules: •...

  • Page 28: 8005 Ac Power Supply

    For information about the specifications of 8004AC power supply, see “Specifications: 8004AC power supply” (page When you configure an Ethernet Routing Switch 8600 system, you must consider total power consumption to ensure proper system performance. The total input power consumption of the components (modules and fan trays or cooling modules) must not exceed the output power rating of the 8004AC power supply.

  • Page 29: 8005Di Ac Power Supply

    8005AC power supply. When you configure an Ethernet Routing Switch 8600 system, you must consider total power consumption to ensure proper system performance. For more information about the minimum number of power supplies to install for the Ethernet Routing Switch 8600 system, see of power supplies required”...
  • Page 30 For information about the 8005DI AC power supply specifications, see “Specifications: 8005DI AC power supply” (page On the 8005DI AC power supply, the two AC input sources can be out of synchronization with each other, having a different voltage, frequency,...

  • Page 31: Power Supply Models For Your Chassis

    For more information about the minimum number of power supplies to install for the Ethernet Routing Switch 8600 system, see of power supplies required” (page Power supply models for your chassis The 8006, 8010, and 8010co chassis have three bays for power supplies.

  • Page 32: Power Supply Leds

    32 AC power supply fundamentals The Ethernet Routing Switch 8600 chassis ships with no installed power supplies. Power supply bays are numbered 1, 2, and 3, left to right, as viewed from the front of the chassis for the 8006, 8010, and 8010co.
  • Page 33 AC-Input 1 < 176 VAC, AC-Input 2< 85 VAC or 132 VAC < AC-Input 2 < 176 VAC, output voltages within regulation, and internal fan operational Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008...
  • Page 34 34 AC power supply fundamentals Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008 Copyright © 2008 Nortel Networks...

  • Page 35: Ac Power Supply Installation

    AC power supply installation procedures This task flow shows you the sequence of procedures you perform to install the AC power supply in the Ethernet Routing Switch 8600. To link to any tasks, go to Copyright © 2008 Nortel Networks “Determining the minimum number of AC...
  • Page 36 “Removing the bottom bezel of the 8010co chassis” (page 37) • “Removing the power filler panel” (page 39) • “Installing the AC power supply” (page 41) Copyright © 2008 Nortel Networks Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008...

  • Page 37: Determining The Minimum Number Of Ac Power Supplies

    Determine the minimum number of AC power supplies required for the Ethernet Routing Switch 8600 system. For information about the power consumption of modules, fan trays and cooling modules, see Nortel Ethernet Routing Switch 8600 Installation — Chassis, NN46205-303. Procedure steps...
  • Page 38 Pull the top of the bezel forward and lift the bezel from the two tabs on the bottom of the chassis. Copyright © 2008 Nortel Networks --End-- Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008...

  • Page 39: Removing The Power Filler Panel

    CAUTION To maintain proper cooling, never operate the Ethernet Routing Switch 8600 with an empty power supply bay. If you are replacing a failed power supply and you do not have a power filler panel, leave the failed power supply installed until a replacement power supply is available.
  • Page 40 Removing a power filler panel: 8003 chassis Copyright © 2008 Nortel Networks 40). CAUTION Save the power filler panel in case you need to operate the Ethernet Routing Switch 8600 with a power supply removed. --End-- Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard...

  • Page 41: Installing The Ac Power Supply

    Figure 11 Removing a power filler panel: 8006 and 8010 chassis Installing the AC power supply Install the AC power supply to the input power source of the Ethernet Routing Switch 8600. Copyright © 2008 Nortel Networks Nortel Ethernet Routing Switch 8600 Installation —...

  • Page 42: Procedure Steps To Install 8003Ac, 8004Ac And 8005Ac Power Supplies

    42 AC power supply installation Prerequisites • If you are installing a power supply in the 8010co chassis with bezel model 312096-A installed, you must first remove the bottom front bezel. If you replaced bezel 312096-A with the modified bezel model 321325-A, you do not need to remove the bezel.

  • Page 43: Procedure Steps To Install 8005Di Ac Power Supply

    Use the Phillips screw driver to tighten the screw. Connect the power cord to an AC power outlet that is on a circuit with no other equipment connected to it. Connect each power supply in the chassis to a separate AC branch circuit. ATTENTION Nortel recommends that you install each power supply on its own dedicated branch circuit for electrical installation reasons.
  • Page 44 Installing the AC power supply: 8003 chassis Job aid: Tighten the retaining screws Figure 15 Tightening the retaining screws: 8010co chassis Copyright © 2008 Nortel Networks Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008...
  • Page 45 Tightening the retaining screws: 8003 chassis Job aid: Power cord connection The 8005DI AC AC power supply has two connectors for the power cord. Figure 18 "8005DI AC Power Supply cord" (page 46) cord connectors for the 8005DI AC power supply.
  • Page 46 46 AC power supply installation Figure 18 8005DI AC Power Supply cord Figure 19 Connecting the power cord: 8010co chassis Copyright © 2008 Nortel Networks Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008...
  • Page 47 Connecting the power cord: 8006 and 8010 chassis Figure 21 Connecting the power cord: 8003 chassis Copyright © 2008 Nortel Networks Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008 Installing the AC power supply 47...
  • Page 48 AC power supply power switch on: 8010co chassis Figure 23 AC power supply power switch on: 8006 and 8010 chassis Copyright © 2008 Nortel Networks Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008...

  • Page 49: Replacing The 8010Co Chassis Bottom Bezel Model 312096-A

    312096-A. ATTENTION The 8005AC and 8005DI AC power supply requires a modified air intake bezel. If you install Model 8005AC or 8005DI AC power supplies in the 8010co chassis and have an air intake bezel imprinted with 312096-A, or if you have difficulty installing the bezel over the 8005AC or 8005DI AC power supplies, you can order the modified bezel model 321325-A (Order Code DS1411027-E6).

  • Page 50: Replacing The 8010Co Chassis Bottom Bezel Model 321325-A

    Use the procedure in this section to replace the bottom front bezel for the model 312096-A. Copyright © 2008 Nortel Networks --End-- Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008...
  • Page 51 Align the captive screws with the holes on the front of the chassis. Copyright © 2008 Nortel Networks Replacing the 8010co chassis bottom bezel model 321325-A 51 Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008...
  • Page 52 52 AC power supply installation Use a Phillips screwdriver to tighten the two screws to secure the bezel to the chassis. Copyright © 2008 Nortel Networks --End-- Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008...

  • Page 53: Translations Of Safety Messages

    Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008...

  • Page 54: Electrostatic Discharge Caution Statement

    Entladung zu verhindern, tragen Sie bei der Instandhaltung dieses Produkts immer ein antistatisches Band am Handgelenk, welches mit einer ESD-Buchse verbunden ist. Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008...

  • Page 55: Nortel Ethernet Routing Switch

    Assurez-vous que le commutateur est correctement relié à la terre avant de mettre l’unité sous tension. Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008...
  • Page 56 Utilizzare esclusivamente cavi di alimentazione dotati di un percorso per il collegamento a terra. Prima di attivare l’alimentazione dell’unità, accertarsi che l’interruttore sia adeguatamente collegato alla messa a terra. Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008...

  • Page 57: Replacing Failed Power Supply Caution Statement

    CAUTION To maintain proper cooling, never operate the Ethernet Routing Switch 8600 with an empty power supply bay. If you are replacing a failed power supply and you do not have a power filler panel, leave the failed power supply installed until a replacement power supply is available.

  • Page 58: Power Filler Panel Caution Statement

    CAUTION ATTENZIONE Per mantenere un raffreddamento appropriato, non utilizzare mai il Ethernet Routing Switch 8600 con il vano di alimentazione vuoto. Se si sostituisce un alimentatore guasto e non si dispone di un pannello di riempimento, lasciare installato l’alimentatore guasto finché non sarà disponibile un alimentatore per la sostituzione.

  • Page 59: Electrical Specifications For Ac Power Supply

    Parameter Input voltage: Input current: Frequency: Input VA: Input power consumption: Copyright © 2008 Nortel Networks Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008 Specifications 100–240 volts alternating current (VAC) 9 amperes (A) 50–60 hertz (Hz)

  • Page 60: Dc Output Power Specifications

    60 Electrical specifications for AC power supply Table 4 AC input power specifications for the Model 8003AC power supply (cont’d.) Parameter Heat dissipation (thermal/output): Hold-up time: DC output power specifications The following table describes the technical specifications for DC output power for the Model 8003AC power supply.

  • Page 61: Specifications: 8005Ac Power Supply

    20 ms Specifications (100–120 VAC input voltage) 1140 W (1050 W + 90 W fans) Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008 Specifications 850 W (110–240 VAC) 780 W (100–109 VAC) 3.3 VDC @ 150 A...

  • Page 62: Specifications: 8005Di Ac Power Supply

    62 Electrical specifications for AC power supply Table 9 DC input power specifications for the Model 8005AC power supply (cont’d.) Parameter Modules: Fans: MTBF: ATTENTION The maximum steady-state output power is limited to a total of 1140 W for any combination of output voltages/currents at low-line 100–120 VAC nominal input...

  • Page 63: Dc Output Power Specifications

    DC output power specifications The following table describes the technical specifications for DC output power for the Model 8005DI AC power supply. Table 11 DC input power specifications for the Model 8005DI AC power supply Parameter Output power (maximum): Modules:...
  • Page 64 64 Electrical specifications for AC power supply Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008 Copyright © 2008 Nortel Networks...

  • Page 65: Power Cord Specifications For 8005Ac And 8005Di Ac Power Supplies

    8005AC power supply. ATTENTION If you use the NEMA5-20 male plug power cord AA0020049, which is rated for lower input voltage conditions, the power supply output power is limited to 1140 watts (W). Table 12 International power cord specifications for the 8005AC and 8005DI AC power supply...
  • Page 66 66 Power cord specifications for 8005AC and 8005DI AC power supplies Table 12 International power cord specifications for the 8005AC and 8005DI AC power supply (cont’d.) Nortel order Country number Plug/Receptacle description AA0020056 North America: • NEMA6-20 twist-lock male plug...
  • Page 67 Table 12 International power cord specifications for the 8005AC and 8005DI AC power supply (cont’d.) Nortel order Country number Plug/Receptacle description AA0020053 Israel: • SI-32 male plug AA0020054 India/South Africa: • BS-546 male plug AA0020057 Australia: • AS/NZ5 3112 male plug...
  • Page 68 68 Power cord specifications for 8005AC and 8005DI AC power supplies Table 12 International power cord specifications for the 8005AC and 8005DI AC power supply (cont’d.) Nortel order Country number Plug/Receptacle description Copyright © 2008 Nortel Networks Specifications Nortel Ethernet Routing Switch 8600 Installation —...

  • Page 69: Index

    AC power supplies 37 minimum number of power supplies 23 NCDS 19 new feature 19 power cord for 8005DI AC power supply 65 power cords 65 Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008...

  • Page 70: Nn46205-306 02.01 Standard 30 May

    8005DI AC power supply 62 power cord for 8005DI AC 65 statements of compliance 5, 8 statements of conformity 5 tasks 22 Copyright © 2008 Nortel Networks Nortel Ethernet Routing Switch 8600 Installation — AC Power Supply NN46205-306 02.01 Standard 30 May 2008...
  • Page 72 NORTEL PROVIDES THIS DOCUMENT "AS IS" WITHOUT WARRANTY OR CONDITION OF ANY KIND, EITHER EXPRESS OR IMPLIED. The information and/or products described in this document are subject to change without notice. Nortel, the Nortel logo, the Globemark, and Passport are trademarks of Nortel Networks. All other trademarks are the property of their respective owners.
