14" TILTING ARBOR SAW
Model 72A
Instruction Manual & Parts List

Advertisement

Table of Contents
loading

Related Manuals for Powermatic 72A

Summary of Contents for Powermatic 72A

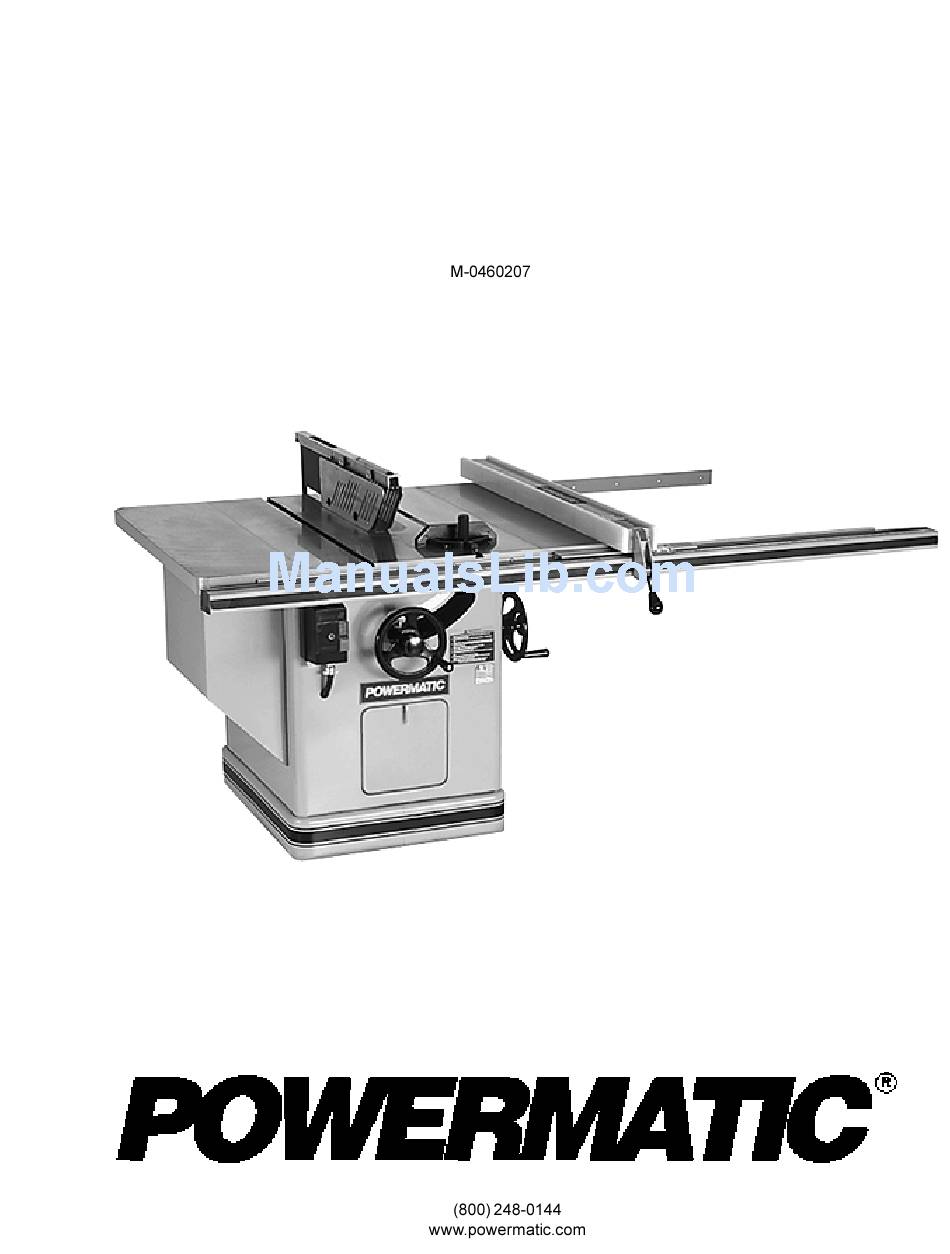

  • Page 1 14" TILTING ARBOR SAW Model 72A Instruction Manual & Parts List...
  • Page 2 This manual has been prepared for the owner and operators of a Powermatic Model 72A Table Saw. Its purpose, aside from machine operation, is to promote safety through the use of ac- cepted correct operating and maintenance procedures. Completely read the safety and mainte- nance instructions before operating or servicing the machine.

  • Page 3: Specifications

    TABLE OF CONTENTS SPECIFICATIONS...

  • Page 4: General Safety Rules

    GENERAL SAFETY RULES...

  • Page 5: Safety Decals

    SAFETY DECALS...

  • Page 6: Installation And Assembly

    RECEIVING INSTALLATION & ASSEMBLY CAST IRON EXTENSIONS MOUNTING BLADE MITER GAUGE RAILS & ACCU-FENCE SPLITTER & GUARD ASSEMBLY ADJUSTMENTS MITER SLOT ALIGNMENT left...
  • Page 7 TILT STOP ADJUSTMENT BELT TENSIONING FENCE ALIGNMENT MITRE GAUGE ADJUSTMENT...

  • Page 8: Arbor And Arbor Bearing Removal

    ARBOR AND ARBOR BEARING SPLITTER ALIGNMENT REMOVAL BLADE RAISING MECHANISM ADJUSTMENT...

  • Page 9: Maintenance

    INSERT ADJUSTMENT MAINTENANCE CHANGING SAW BLADES TILTING MECHANISM ADJUSTMENT...
  • Page 10 INSTRUCTIONS & PROCEDURES FOR CIRCULAR SAW OPERATIONS...

  • Page 11: Rip Sawing

    RIP SAWING...
  • Page 13 Trouble-Shooting for Model 72A Table Saw...

  • Page 14: Feather Board Construction

    FEATHER BOARD CONSTRUCTION The Feather Board is to be made of straight grain hardwood approximately 1" thick and 4" to 8" wide according to the size of the machine. The length should be developed in accordance with its intended use. Feather Boards can be fastened to the table or rip fence by the use of "C" clamps. Drilled and tapped holes in the table top allow for the use of wing nuts and washers as a method of clamping.
  • Page 15 PARTS LIST: Mitre Gauge Assembly 2471015 NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION...
  • Page 16 PARTS LIST: Stand Assembly NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION...
  • Page 17 EXPLODED VIEW: Stand Assembly...
  • Page 18 PARTS LIST: Arbor NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION...
  • Page 19 EXPLODED VIEW: ARBOR...
  • Page 20 PARTS LIST: Arbor NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION...
  • Page 21 EXPLODED VIEW: Arbor...
  • Page 22 PARTS LIST: Splitter & Guard Assembly NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION...
  • Page 23 PARTS LIST: Optional Table Extensions 2389002 NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION...
  • Page 24 ELECTRICAL SCHEMATIC - Model 72A...
  • Page 25 ELECTRICAL SCHEMATIC - Model 72A...
  • Page 26 ELECTRICAL SCHEMATIC - Model 72A...
  • Page 28 POWERMATIC ALL RIGHTS RESERVED...
