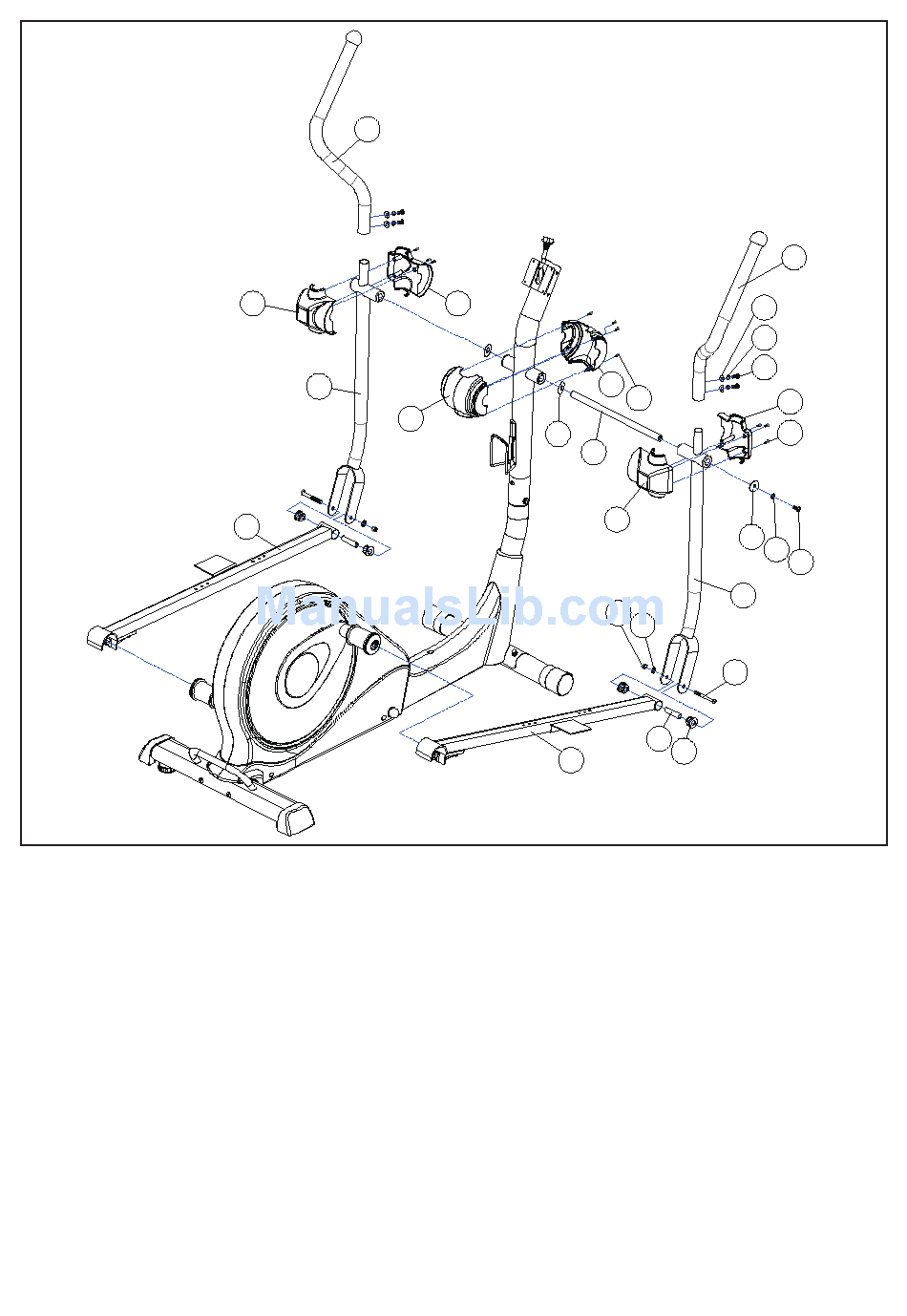

STEP 3
Slide the lower swing bar Left and Right (21) onto the Rotation Rod (24) and secure using 2 Allen Bolts
(18), 2 spring (14), 2 washers (19) and 2 black washers (25) tighten fully.
Fit the upper swing bar Left and Right (11) by slotting them onto the top of the lower swing bar Left and
Right (21) and secure in place using 4 Allen bolts (15), 4 spring (14) and 4 curved washers (13), tighten
fully.
Fasten footplate support bars(51L+R) to the lower swing bars(21) with Allen bolts (46) and secure it with
washers (49) and nuts (50).
Secure plastic cover (16L+R) and (27F+R)onto swing bar and handlebar post with screws (17) separately.
11L
16F
21L
27F
51L
16R
27R
25
24
16F
50
51R
7
11R
13
14
15
17
16R
17
19
14
18
21R
49
46
48
47
