SYSTEM CONFIGURATIONS

All NavNet products incorporate a "network circuit board" to integrate each NavNet product
on board through an optional LAN cable (Ethernet 10BASE-T). Each NavNet product is
assigned an IP address to enable transfer of images between other NavNet products. For
example, video plotter pictures can be transferred to a radar and vice versa. Pictures
received via the NavNet may be adjusted at the receiving end.
The number of display units which may be installed depends on the number of network
sounders connected. For a system incorporating three or more NavNet products, a "hub" is
required to process data.
For one network sounder: one radar and three plotters, or four plotters
For two network sounders: one radar and two plotters, or four plotters
Antenna Unit
MODEL
1954C
: Standard
: Option
: Local supply
100/110/115/220/230 VAC
1φ, 50/60 Hz*
*: The power for the power supply unit
and display unit must be drawn from
the same power source.

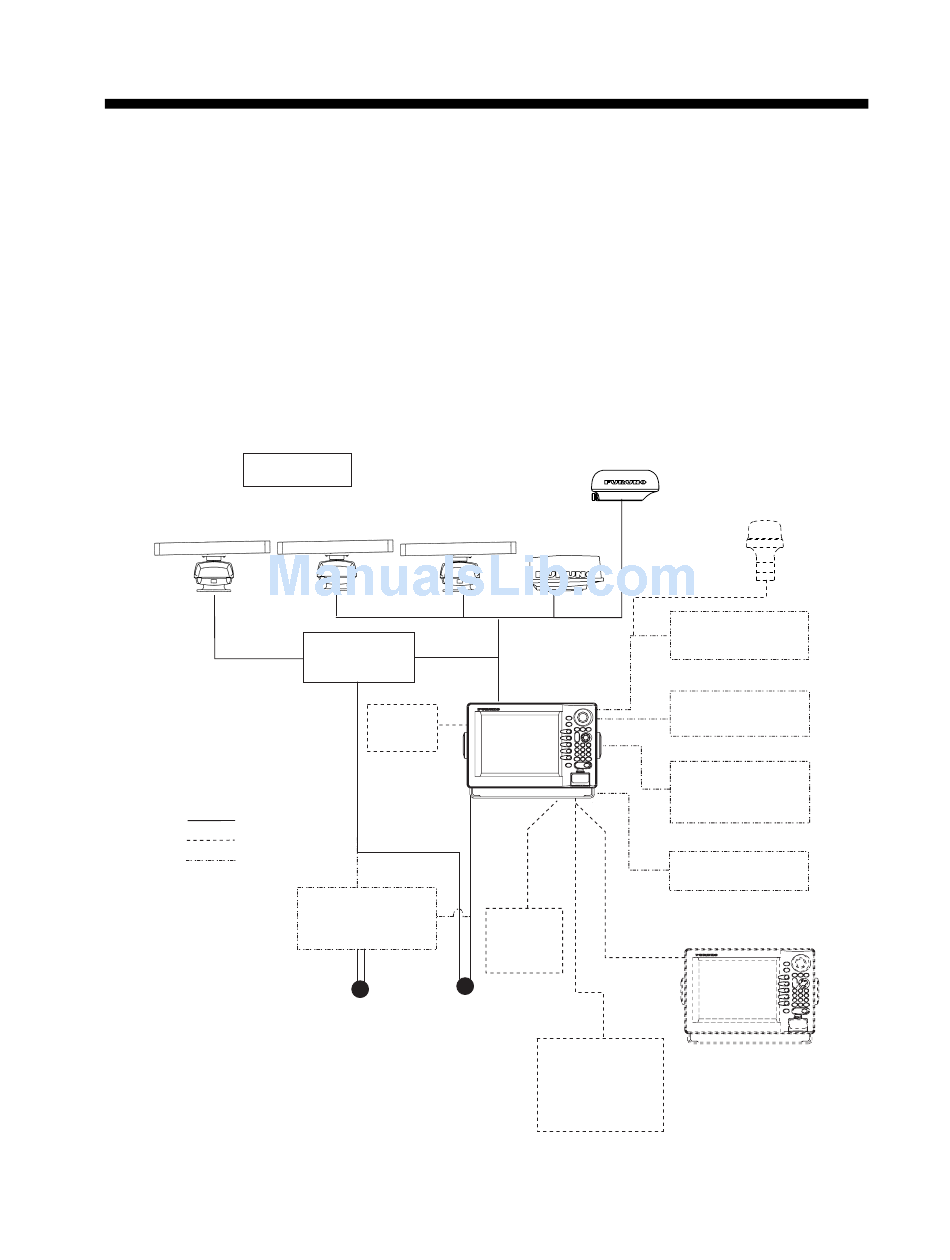

NavNet system: MODEL1824C/1834C/1934C/1944C/1954C
MODEL MODEL
1934C 1944C
Power Supply
Unit PSU-005
ARPA
ARP-11
Rectifier
RU-3423
12 - 24 VDC*
v
MODEL1824C
MODEL
1834C
Display unit
RDP-149
Facsimile
Receiver
FAX-30
Network
Sounder
ETR-6/10N
ETR-30N
GPS receiver
GP-310B/320B
Echo sounder
Navigator
External buzzer
PC
VGA monitor
Remote display
Video equipment
Heading sensor
Other NavNet unit
(GD-1920C, etc.)
