Furuno 1824C Installation Manual

Furuno marine radar and color video plotter
Hide thumbs Also See for 1824C:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual

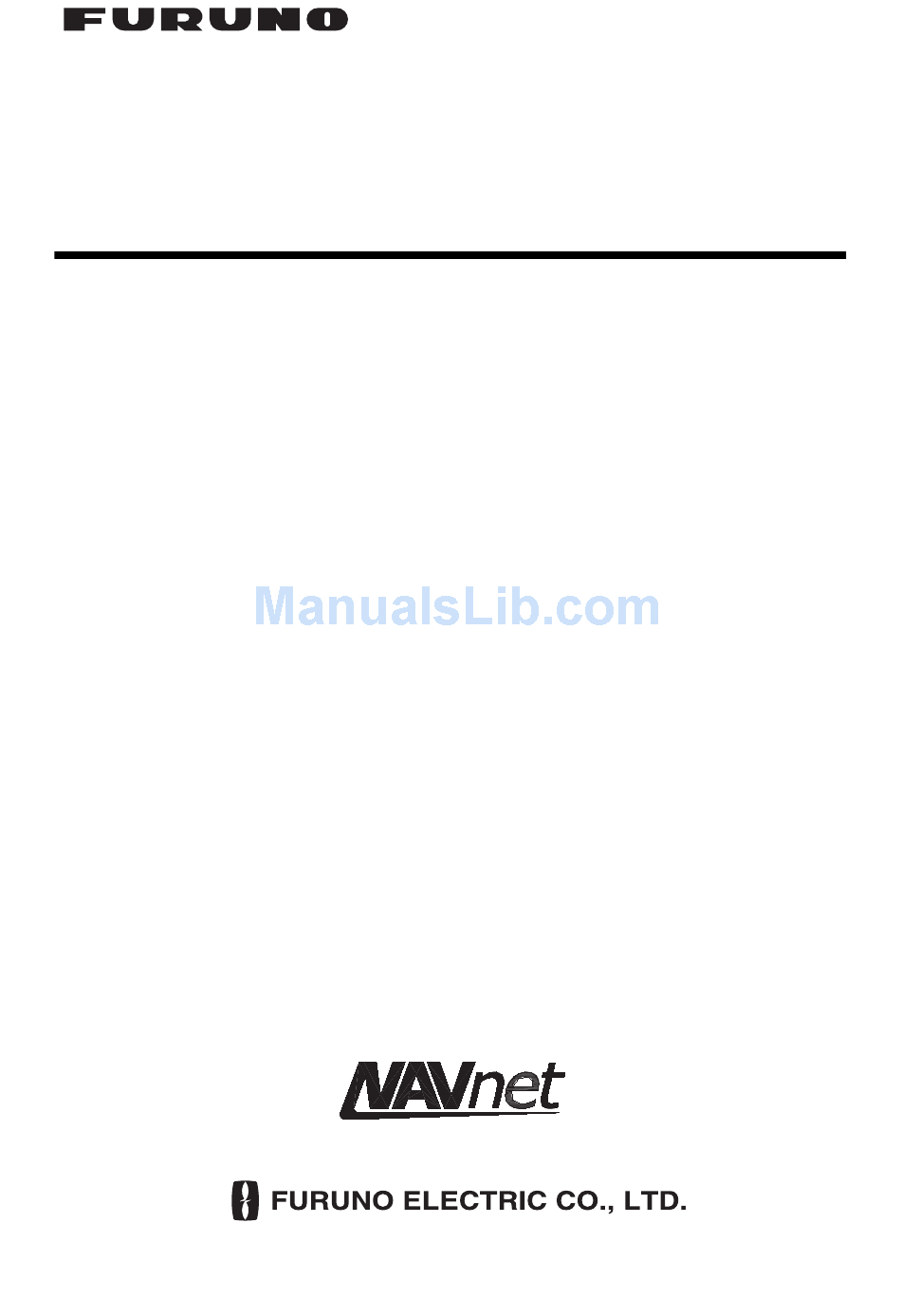

MARINE RADAR MODEL1824C/1834C/
COLOR VIDEO PLOTTER GD-1920C
SAFETY INSTRUCTIONS...................... i
SYSTEM CONFIGURATIONS.............. iv
1. MOUNTING ....................................1-1
MODEL1824C ................................ 1-4
MODEL1834C .............................. 1-12
..................................................... 1-17
(MODEL 1954C/1964C) ............... 1-26
2. WIRING ..........................................2-1
2.1 Standard Wiring .............................. 2-1
All brand and product names are trademarks, registered trademarks or service marks of their respective holders.
Installation Manual
1934C/1944C/1954C/1964C
4. OPTIONAL EQUIPMENT ...............4-1
4.1 ARP Kit ARP-11.............................. 4-1
PACKING LISTS ............................... A-1
OUTLINE DRAWINGS ...................... D-1
VX2
www.furuno.co.jp
1954C/1964C) ................................ 2-6
....................................................... 3-1
..................................................... 3-15
Display ........................................... 4-4

Advertisement

Table of Contents
loading

Related Manuals for Furuno 1824C

Summary of Contents for Furuno 1824C

  • Page 1: Table Of Contents

    3.1 Setting up with the Installation Wizard..3-1 3.2 Checking Magnetron Heater Voltage ... 3-15 4. OPTIONAL EQUIPMENT ...4-1 4.1 ARP Kit ARP-11... 4-1 4.2 Connection of Video Equipment/External Monitor/Remote Display ... 4-4 PACKING LISTS ... A-1 OUTLINE DRAWINGS ... D-1 INTERCONNECTION DIAGRAMS... S-1 www.furuno.co.jp...
  • Page 2 : +81-(0)798-65-4200 Printed in Japan All rights reserved. Pub. No. IME-35430-K (HIMA ) MODEL1804C_GD-1920C The paper used in this manual is elemental chlorine free. ・FURUNO Authorized Distributor/Dealer A : FEB K : MAR . 23, 2011 *00015180319* *00015180319* *00015180319* *00015180319*...
  • Page 3 Note: If the antenna unit is installed at a close distance in front of the wheel house, your administration may require halt of transmission within a certain sector of antenna revolution. This is possible - Ask your FURUNO representative or dealer to provide this feature. MODEL MODEL 1824C...

  • Page 4: Equipment Lists

    MODEL1964C, 4 ft, 24 rpm MODEL1964C, 4 ft, 48 rpm MODEL1964C, 6 ft, 24 rpm For MODEL1954C For MODEL1964C 008-443-160 1set For ant. unit of Model 1824C 008-478-750 1set For ant. unit of Model 1834C For ant. unit of Model 008-503-360 1set...
  • Page 5 (Con’t from next page) Name Type Installation materials CP03-24500 CP03-30600 SP03-14501 SP03-14001 Spare parts SP03-14001 Optional supply Name Type PR-62 Rectifier RU-3423 RU-1746B-2 External OP03-136 buzzer MJ-A6SPF0014-010C MJ-A6SPF0014-050C MJ-A6SPF0014-100C MJ-A6SPF0014-200C MJ-A6SPF0014-300C MJ-A6SPF0012-050C MJ-A6SPF0012-100C MJ-A6SPF0003-050C MJ-A6SPF0009-100C Cable assy. MJ-A6SPF0007-100 MJ-A7SPF0007-050 MJ-A6SRMD/TM11AP8- MJ-B24LPF0008-100 MJ-B24LPF0008-200 MJ-B24LPF0008-300...
  • Page 6 SYSTEM CONFIGURATIONS All NavNet products incorporate a “network circuit board” to integrate each NavNet product on board through an optional LAN cable (Ethernet 10BASE-T). Each NavNet product is assigned an IP address to enable transfer of images between other NavNet products. For example, video plotter pictures can be transferred to a radar and vice versa.
  • Page 7 * Not required for AIS Transponder FA-150 AIS transponder Display unit RDP-149 Other NavNet Unit (Model 1834C, etc.) Facsimile Receiver FAX-30 : Standard : Option : Local supply GPS receiver GP-320B/330B Weather station WS-200 AIS Interface IF-1500AIS* Network Sounder ETR-6/10N 12 - 24 VDC ETR-30N NavNet system: GD-1920C...
  • Page 8 Radar Antenna Unit, GPS Receiver GP-320B/330B Weather Station WS-200 RADAR PLOTTER Radar, plotter data Radar Antenna Unit, GPS Receiver GP-320B/330B Weather Station WS-200 Radar data Sounder data Facsimile Network Sounder ETR-6/10N ETR-30N (option) Three-or-more unit NavNet system Radar Antenna Unit, GPS Receiver GP-320B/330B Weather Station WS-200 Radar, plotter data...

  • Page 9: Mounting

    1. MOUNTING 1.1 Mounting the Display Unit The display unit can be mounted on a tabletop, on the overhead or flush mounted in a console or panel. Hard Cover Tabletop, overhead mounting method 1.1.1 Mounting considerations When selecting a mounting location for the display unit, keep the following in mind: •...
  • Page 10 1.1.2 Mounting procedure Tabletop, overhead mounting Follow the procedure below to mount the display unit on a tabletop or the overhead. 1. Fix the hanger by using four tapping screws (5x20). 2. Screw knob bolts in display unit, set it to the hanger, and tighten the knob bolts. 3.
  • Page 11 Flush mounting Note: Use supplied pan head screws when the thickness of the bulkhead is from 11 to 14 mm. For bulkhead which exceeds 14 mm in thickness, the length of the pan head screws should be bulkhead thickness (A) plus 7.8±1.2 mm. Also the length of B should be max.

  • Page 12: Mounting The Antenna Unit Of Model1824C

    1.2 Mounting the Antenna Unit of MODEL1824C 1.2.1 Mounting considerations When selecting a mounting location for the antenna unit, keep in mind the following points. • Install the antenna unit on the hardtop, radar arch or on a mast on an appropriate platform.
  • Page 13 1.2.2 Mounting procedure 1. Remove the mounting hardware from the bottom of the antenna unit: four each of hex bolts (M10X20), spring washers and flat washers. Save the mounting hardware to use it to fix the antenna unit to the mounting platform later on. Stern Antenna unit, showing location of mounting hardware 2.
  • Page 14 4. The mounting base is fitted with a snap holder, which may be used to hang the cover after removal. Use the hole next to a screw hole inside the cover to hang it. a) Unfasten the snap assy. with the string attached at the holder in the mounting base. b) Unwind the string.
  • Page 15 5. Unfasten the rotation detector cable from the cable clamps, referring to the figure on page 1-10. 6. Unfasten 16 screws ( core case and core case cover. Cable clamps Shield plate Pan head screws M4x8 9 pcs. Caution: Be careful not to pinch the rotation detector cable when remounting the shield plate.
  • Page 16 7. Pass the antenna cable with connector through the cable gland, gasket and cable entrance of the antenna unit, and then tighten cable gland. Note 1: Be sure the shrink tube on the antenna cable does not contact the gasket. Note 2: Pinch the gasket tightly and insert it into the cable entrance.
  • Page 17 9. Attach connectors of the antenna cable to the locations shown in the figure below, and then fasten a pan head screw M4x10 to fix shield cable and core case (removed at step J810 J809 (13 pin) (4 pin) J801 (9 pin) Antenna unit, connector location and fixing the shield cable w/core case 10.
  • Page 18 12. Pass the cable from the rotation detector through two cable clamps. Cable clamps Cable tie (Another should be inside.) Antenna unit, clamping the rotation detector cable 13. Follow the instructions on the label inside the mounting base to secure the snap assy. 14.
  • Page 19 M8 x 20 Mounting plate M8 x 20 Bracket (1) Fixing plate Support plate (2) Bracket (2) Support plate (1) M8 x 20 M4 x 12 (A) Assembling the mounting bracket M10 x 25 (supplied with antenna unit) (B) Fastening antenna to mounting bracket How to assemble and mount the optional mounting bracket 1-11...

  • Page 20: Mounting The Antenna Unit Of Model1834C

    1.3 Mounting the Antenna Unit of MODEL1834C 1.3.1 Mounting considerations • See the mounting considerations for the MODEL1824C on page 1-4. • Observe the compass safe distances mentioned in the SAFETY INSTRUCTIONS to prevent deviation of the magnetic compass. 1.3.2 Mounting procedure 1.
  • Page 21 Effective thread length 25 mm Flat washer Spring washer Apply silicone sealant. How to fasten the radome base to the mounting platform Wiring and final preparations 4. Drill a hole of approx. 16 mm diameter through the deck or bulkhead to run the signal cable between the antenna unit and the display unit.
  • Page 22 9. Attach three connectors of the signal cable to respective receptacles as shown below. J801 Cable entry PTU-9335 to one of the screws of the cable clamping plate Signal cable, antenna unit side J802 MD-9208 J611 IF-9214A RF unit 1-14 9-pin connector: to J801 on MD-9208 4-pin connector:...
  • Page 23 10. Bundle the cables with the EMI core (supplied) as shown below. Cable entrance Cable clamping plate EMI core E04SS251512 (Above cable clamping plate) 11. Fix the shield cover. Do not pinch the cable. 12. Attach the radome cover, aligning triangle mark on radome cover with that on radome base.
  • Page 24 Mounting the optional mounting bracket A mounting bracket for fastening the antenna unit for the MODEL1834C to a mast on a sailboat is optionally available. Contents of mounting bracket 1 (Type: OP03-92, Code No.: 008-445-070) Part Hex. bolt Hex. bolt Mounting plate Support plate (1) Support plate (2)

  • Page 25: Mounting The Antenna Unit Of Model1934C/1944C/1954C/1964C

    1.4 Mounting the Antenna Unit of MODEL1934C/1944C/1954C/1964C 1.4.1 Mounting considerations • The antenna unit is generally installed either on top of the wheelhouse or on the radar mast on a suitable platform. Locate the antenna unit where there is a good all-round view. Any obstruction will cause shadow and blind sectors.
  • Page 26 1.4.2 Mounting procedure Referring to the outline drawing at the back of this manual, drill five holes in the mounting platform: four holes of 15 mm diameter for fixing the antenna unit and one hole of 25-30 mm diameter for the signal cable. Fastening the radiator to the radiator bracket For your reference, the antenna installation materials list appears in the packing list for this unit at the back of this manual.
  • Page 27 Mounting the antenna unit The antenna unit can be mounted using the fixing holes on the outside (200 x 200 mm) or inside (140 x 150 mm) the antenna unit. Using outside fixing holes of the antenna housing Use the hex head bolts (supplied) to mount the antenna unit as below. 1.
  • Page 28 3. Insert four hex bolts (M12x60, supplied) and seal washers (Ф30, supplied) from the top of the antenna housing, as shown below. 4. Pass flat washers (M12, supplied), spring washers (M12, supplied) and nuts (M12, supplied) onto hex bolts. Fasten by tightening nuts. Do not fasten by tightening the hex bolts;...
  • Page 29 8. Coat ground terminal and ground point with silicone sealant as shown below. Ground wire Ground wire GROUND TERMINAL How to coat ground point and ground terminal with silicone sealant Hex bolt Flat washer Flat washer Silicone sealant Hex nut Spring washer Flat washer Hex nut...
  • Page 30 Using inside fixing holes of the antenna housing This method requires removal of the RF unit in the antenna unit to access inside fixing holes. Use hex head bolts, flat washers, spring washers and nuts (local supply) to mount the antenna unit, confirming length of bolts. 1.
  • Page 31 Connecting the signal cable Only the signal cable runs from the display unit (power supply unit in case of 1954C) to the antenna unit. In order to minimize the chance of picking up electrical interference, avoid where possible routing the signal cable near other onboard electrical equipment. Also, avoid running the cable in parallel with power cables.
  • Page 32 5. Position the signal cable so that no more than 4 cm of the sheath is exposed as shown in the figure below. Tighten fixing bolts. Plate 6. Unfasten four screws shown in the figure below. 7. Pass the signal cable through the cable protector. Tubing Within 4 cm Flat...
  • Page 33 8. Connect the signal cable to the RTB Board (03P9249 or 03P9250), referring to the interconnection diagram and the figure below. 9. Attach three EMI cores to the signal cable as shown below. Lead in cable here. EMI core RFC-13 10.

  • Page 34: Mounting The Power Supply Unit (Model 1954C/1964C)

    1.5 Mounting the Power Supply Unit (MODEL 1954C/1964C) 1.5.1 Power supply unit PSU-005 (for MODEL 1954C) A power supply unit is shipped with the MODEL1954C, because of its high power consumption. The power supply unit can be installed almost anywhere provided the location is dry, well-ventilated, sufficient maintenance space is provided and is installed within 5 m (cable length) from the display unit.
  • Page 35 1.5.2 Power supply unit PSU-008 (for MODEL 1964C) A power supply unit is shipped with the MODEL1964C, because of its high power consumption. The power supply unit can be installed almost anywhere provided the location is dry, well-ventilated, sufficient maintenance space is provided and is installed within 5 m (cable length) from the display unit.
  • Page 36 This page is intentionally left blank. 1-28...

  • Page 37: Wiring

    2. WIRING 2.1 Standard Wiring All wiring is terminated at the rear of the display unit. MODEL1824C/1834C/1934C/1944C: To antenna unit Signal cable MODEL1824C/1834C: MJ-B24LPF0002 MODEL 1934C/1944C: MJ-B24LPF0005 Drain hole (Allows moisture to escape.) 12-24 VDC Connect power OPTION cable here. (remote display VGA monitor) CAUTION...
  • Page 38 DJ-1 For MODEL1824C/1834C/1934C/1944C/1954C/1964C, remove the waterproofing cap from DJ-1 port and discard it. MODEL1824C/1834C: Connect the MJ-B24LPF0002 cable from the antenna unit to this port. MODEL1934C/1944C: Connect the MJ-B24LPF0005 cable from the antenna unit to this port. MODEL 1954C/1964C: Connect the cable MJ-B24LPF0009 from the power supply unit to this port.
  • Page 39 Connecting GP-310B/320B to DATA 2 port NETWORK port Other NavNet equipment should be connected to this port with the optional MJ-A6SPF0014 cable. Available equipments are shown below. Radar MODEL1724C/1734C GD-1720C 1824C/1834C/1934C/ GD-1920C 1944C/1954C/1964C JUNCTION BOX Plotter Network sounder ETR-6/10N ETR-30N...

  • Page 40: External Buzzer (Optional Supply)

    2.2 External Buzzer (optional supply) The optional external buzzer provides a louder alert when the alarm is violated. External buzzer Type: OP03-136 Code no.: 000-086-443 Further, you need the optional cable assy MJ-A7SPF0007-050 (w/7P connector, 5 m, code no. 000-144-418). 1.

  • Page 41: How To Connect With A Pc

    2.3 How to Connect with a PC When connecting with the personal computer, prepare the optional cable assy MJ-A7SPF0007-050 and D-sub 9 pins plug (local supply), and connect them as follows. D-SUB 9PIN MJ-A7SPF0007-050 cable connection for PC SHIELD BLUE WHITE MJ-A7SPF0007-050 WHITE...

  • Page 42: Wiring The Power Supply Unit (Model 1954C/1964C)

    2.4 Wiring the Power Supply Unit (MODEL 1954C/1964C) 2.4.1 Power supply unit PSU-005 (MODEL1954C) 1. Unfasten three M4 screws to remove the cable clamp. 2. Unfasten six M4 screws to remove the cover. 3. Attach the VL connector of the power supply cable VL3P-VV-S2X2C-AA050 (supplied as installation materials) to J1 on the POWER Board.
  • Page 43 2.4.2 Power supply unit PSU-008 (MODEL1964C) Cabling 1. Unfasten four screws to remove the cable clamp. 2. Unfasten four screws to remove the cover. 3. Attach the VL connector of the power supply cable VL3P-VV-S2X2C-AA050 (supplied as installation materials) to J1 on the POWER Board. 4.
  • Page 44 Jumper block, slide switch setting The jumper block JP1 and slide switch S112 on the PWR board (03P9419) must be set according to radar model. Open the unit, locate JP1 and S112 and set them as below. Jumper block, slide switch Function S112 Slide switch S112 (Downward position...
  • Page 45 2.4.3 Power requirement, replacement of fuses Power requirement The power for the power supply unit and display unit must be drawn from the same power switch on the power terminal board. Power terminal board The display unit and antenna should be powered from the same power source.
  • Page 46 This page is intentionally left blank. 2-10...

  • Page 47: Setting Up The Equipment

    3. SETTING UP THE EQUIPMENT 3.1 Setting up with the Installation Wizard After you have installed the equipment, set up the equipment with the installation wizard. The wizard allows you to easily set up the NavNet network (choose source of radar, sounder and auxiliary), GPS, ports, etc.
  • Page 48 CAUTION: Ensure that the settings to be loaded are compatible with this NavNet unit. Improper setting will damage the equipment. 7. The screen for set up of units of measurement appears. RANGE UNIT DEPTH UNIT TEMPERATURE UNIT WIND UNIT LOCAL TIME OFFSET LOCAL TIME OFFSET AIR PRESSURE UNIT Installation wizard, units of measurement...
  • Page 49 11. Choose appropriate item and then press the EDIT soft key. One of the following displays appears depending on your selection. DEVICE NUMBER ▲ 1 (IP:172.031.003.001) 2 (IP:172.031.003.002) 3 (IP:172.031.003.003) 4 (IP:172.031.003.004) ▼ SOUNDER SOURCE ▲ ETR0 (IP:172.031.092.001) ETR1 (IP:172.031.092.011) ETR2 (IP:172.031.092.012) ETR3 (IP:172.031.092.013) ETR4 (IP:172.031.092.014)
  • Page 50 MEDIUM MONITOR MODE HEADING ADJUST Installation wizard, radar setup 14. Choose ANTENNA TYPE and then press the EDIT soft key. ANTENNA TYPE ▲ A (MODEL 1824C) B (MODEL 1834C) (MODEL 1934C) D (MODEL 1944C) (MODEL 1954C) (MODEL 1964C) ▼ 15. Choose the appropriate antenna type and then press the ENTER soft key.
  • Page 51 Tuning Power Supply Unit for MODEL 1954C 1. Choose TIMING ADJUST and then press the EDIT soft key. 2. Choose ON and then press the ENTER soft key. 3. You are asked if you want to transmit; push the ENTER knob.
  • Page 52 This adjustment ensures proper radar performance, especially on short ranges. The radar measures the time required for a transmitted echo to travel to the target and return to the source. The received echo appears on the display based on this time. Thus, at the instant the transmitter is fired, the sweep should start from the center of the display (sometimes called sweep origin.) A trigger pulse generated in the display unit goes to the antenna unit through the signal...
  • Page 53 26. Choose the height of the antenna above the water surface and then press the ENTER soft key. 27. Choose STC CURVE and then press the EDIT soft key. STC CURVE ▲ NARROW NORMAL WIDE ▼ 28. Choose appropriate STC curve setting and then press the RETURN soft key. NARROW: The effective range of the A/C SEA adjustment is relatively short.
  • Page 54 34. Choose item and press the EDIT soft key. 35. Choose appropriate setting and then press the ENTER soft key. Refer to the table on next page for description of each item. AIR TEMPERATURE SOURCE FURUNO BB GPS AIR PRESSURE SOURCE DEPTH 99.5ft...
  • Page 55 001-600 s, 001 s S180°-P180°, S000.0° -50 to +50%, 00% FURUNO BB GPS, NMEA: Select FURUNO BB GPS to show wind data fed from the WS-200. FURUNO BB GPS, NMEA: Select FURUNO BB GPS to show air temperature data fed from the WS-200.
  • Page 56 37. Choose an item and press the EDIT soft key to show corresponding window. 38. Choose setting and then press the ENTER soft key. Refer to the table which follows for description. Item Description Geodetic Your equipment is preprogrammed with most Datum of the major chart systems of the world.
  • Page 57 Item Disable Every GPS satellite is broadcasting Satellite abnormal satellite number (s) in its Almanac, which contains general orbital data about all GPS satellites, including those which are malfunctioning. Using this information, the GPS receiver automatically eliminates any malfunctioning satellite from the GPS satellite schedule.
  • Page 58 WAAS setup (requires GPS receiver GP-320B/330B) Press the WAAS SETUP soft key to show the WAAS SETUP display. Item Description WAAS Mode Select ON to use the WAAS mode. WAAS WAAS satellite can be searched Search automatically or manually. For manual search, enter appropriate WAAS satellite number.
  • Page 59 42. Press the NEXT key, and the DATA4 (PC/NMEA/EXT. BUZZ) port setup menu appears. Set up this port similar to how you set up the DATA2 port. NMEA OUTPUT FORMAT BAUD RATE 4800 bps BIT LENGTH 8 bits STOP BIT 1 bit (CONTROL: Xon/Xoff) Installation wizard, DATA4 (PC/NMEA/EXT.
  • Page 60 43. Press the NEXT soft key, and the NMEA sentence selection window (for network) appears. Installation wizard, NMEA sentence selection window 44. Choose sentence to process and press the ON/OFF soft key to show ON or “- -“ (OFF) as appropriate. 45.Press the NEXT soft key and the message “FINISH AND EXIT INSTALLATION WIZARD.

  • Page 61: Checking Magnetron Heater Voltage

    1. Open the antenna unit. 2. Turn on the power. Do not transmit the radar. 3. Connect a multimeter, set to 10VDC range, appropriate position on the MD (1824C), PTU (1834C) or RTB (1934C/1944C1954C/1964C) Board in the antenna unit. Refer to the table in below.
  • Page 62 This page is intentionally left blank. 3-16...

  • Page 63: Optional Equipment

    4. OPTIONAL EQUIPMENT 4.1 ARP Kit ARP-11 Necessary parts Name: ARP kit Type: ARP-11 Code no.: 008-523-050 Name ARP Board 18P9014B Pan head screw M3x6 C2700W SQ-9 Spacer* SQ-15 Spring washer* M3 C5191W 1. Unscrew seven connecter nuts at the rear of the display unit. 2.
  • Page 64 3. Disconnect the PH5P connector from J1357 on the POWER Board (19P1005). 4. Unfasten seven pan head screws (M3x8) to dismount the POWER Board and POWER shield case from the display unit. Pan head screws (M3x8) 7 pcs. 5. Mate P107 on the ARP Board (option) to J112 on the SPU Board. 6.
  • Page 65 9. Fasten screws in order shown below to mount the display cover. Around the perimeter: 10 pcs. 10. Fasten seven connector nuts. 3 Middle 5 left 2 Both sides of drain hole: 2 pcs. 5 screws: The torque should be 0.54 + 0.05 N m. Order of fastening screws 4 right...

  • Page 66: Connection Of Video Equipment/External Monitor/Remote Display

    4.2 Connection of Video Equipment/ External Monitor/Remote Display The above units can be connected to the MODEL1824C/1834C/1934C/1944C/1954C and GD-1920C by using the hole at the rear of the display unit. Remove the cover to use this hole. After connecting, cover the hole with soft putty to seal. Connection of Video equipment/External monitor/remote display 4.2.1 Connecting video equipment The display unit can show the picture from a CCD camera, video recorder, etc.
  • Page 67 For connection with the CCD camera/video recorder, the following cable is necessary (local supply). Connector at both ends: RCA connector (metal) • Cable length: shorter than 10 m • 2.5C2V or 3C2V (Japan Industrial Standard (JIS), or the equivalent) coaxial cable •...
  • Page 68 4. Set two cable tie “legs” (supplied with option kit) as shown below. 5. Tie the connector assy with two cable ties attached at step 4. 6. Remount the POWER Board and power shield case with pan head screws (M3x8, 5 pcs.) 7.
  • Page 69 4.2.2 Connecting an external monitor You can display the MODEL1824C/1834C/1934C/1944C/1954C screen on an external monitor which accepts industrial standard VGA input by using the optional RGB output cable kit OP03-176. Supply monitor and interconnection cable (with HD-15P connectors of male, three rows of 15 pins) locally. Necessary parts for external monitor Name: RGB output cable kit...
  • Page 70 4.2.3 Connecting remote display The FURUNO Display unit FMD-811, MODEL1832 or GD-280/380, etc. can be connected to the NavNet display as remote display. To interconnect them, use a cable attached with or set as option for the remote display. For the network system consists of some units, connect the remote display cable to the one selected as radar source.
  • Page 71 4.2.4 Attaching more than two units When more than two cables of PIP kit, VGA monitor cable and remote signal cable, use the cable tie supplied as the installation materials with the display unit to tie optional cables. Attach the cable tie to the hole on the POWER Board. Attach the cable tie here.
  • Page 83 Y. Hatai...

  • Page 87: Interconnection Diagrams

    RADAR MJ-B24LPF0008 (NH8P) 10/20/30m,φ11.4(OPTION) クロ キ シロ ハイ アカ TRIG ドウジク 2C-2V COAX. VIDEO TYPE MODEL 1824C/1834C E.MIYOSHI 名 称 船舶用レーダー TAKAHASHI.T 相互結線図 Y. Hatai MASS NAME MARINE RADAR INTERCONNECTION DIAGRAM FURUNO ELECTRIC CO., LTD. J881(VH9P) J889(VH4P) J810(NH13P) (INT) 03P-9328...
  • Page 88 MJ-B24LPF0008,10/20/30m,φ11.4 MJ-A10SPF HD SIG. クロ キ シロ BEARING ハイ アカ EXT_TRIG TRIG ドウジク 2C-2V COAX. VIDEO VIDEO TYPE MODEL 1934C/1944C E.MIYOSHI 名 称 船舶用レーダー TAKAHASHI.T 相互結線図 Y. Hatai MASS NAME MARINE RADAR INTERCONNECTION DIAGRAM C3545-C01- F FURUNO ELECTRIC CO., LTD.
  • Page 89 BEARING ハイ EXT_TRIG アカ ドウジク VIDEO 2C-2V COAX. TYPE MODEL 1954C E.MIYOSHI 名 称 TAKAHASHI.T 船舶用レーダー Y. Hatai 相互結線図 MASS NAME MARINE RADAR INTERCONNECTION DIAGRAM 19-025-5053-2 FURUNO ELECTRIC CO., LTD. ANTENNA UNIT J821(VH9P) 03P9250 RW-4747 レーダー RADAR (NH8P) TRIG VIDEO...
  • Page 90 シロ BEARING ハイ EXT_TRIG アカ ドウジク VIDEO 2C-2V COAX. TYPE MODEL 1964C E.MIYOSHI 名 称 TAKAHASHI.T 船舶用レーダー Y. Hatai 相互結線図 MASS NAME MARINE RADAR REF.No. INTERCONNECTION DIAGRAM 19-025-5054-1 FURUNO ELECTRIC CO., LTD. ANTENNA UNIT RW-4747 レーダー RADAR (NH8P) TRIG VIDEO...
  • Page 91 MJ-A3SPF0018-050ZC,5m,φ10 12-24 VDC DPYC-1.5 *1 100/110/220/230 VAC 1φ,50/60 Hz 整流器 RECTIFIER PR-62 VGAモニター VGA MONITOR CABLE VGA MONITOR ビデオI/F CO-AX CABLE VIDEO INTERFACE (NTSC/PAL) GPS受信機 GPS RECEIVER GP-310B/320B 航法・レーダー NAV/RADAR 国際船舶自動識別装置 AIS TRANSPONDER FA-150 AIS INTERFACE IF-1500 AIS ADコンバータ GYRO A-D CONVERTER AD-100 ヘディングセンサ...
