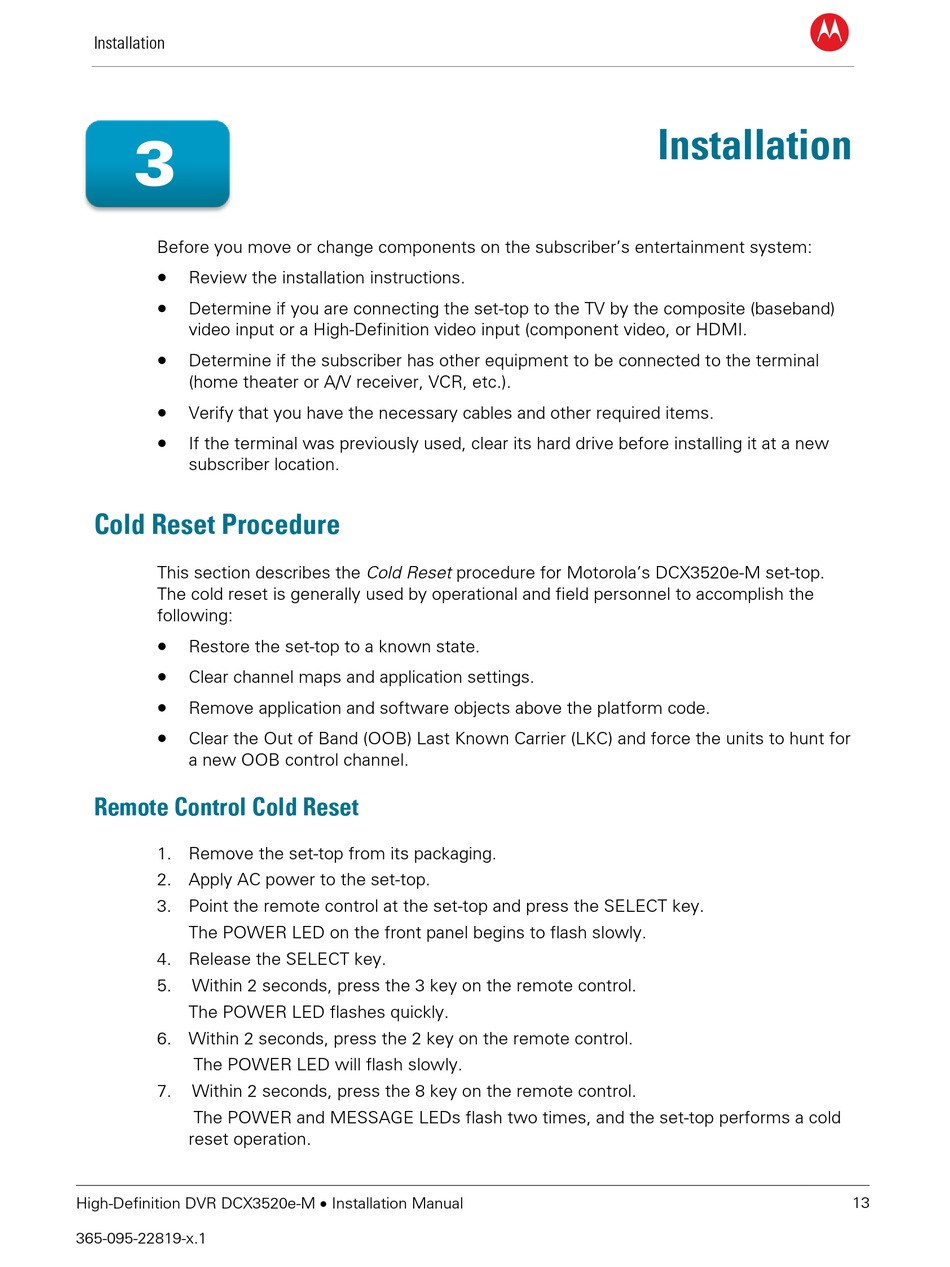

Installation

3
Before you move or change components on the subscriber's entertainment system:
•
Review the installation instructions.
•
Determine if you are connecting the set-top to the TV by the composite (baseband)
video input or a High-Definition video input (component video, or HDMI.
•
Determine if the subscriber has other equipment to be connected to the terminal
(home theater or A/V receiver, VCR, etc.).
•
Verify that you have the necessary cables and other required items.
•
If the terminal was previously used, clear its hard drive before installing it at a new
subscriber location.

Cold Reset Procedure

This section describes the Cold Reset procedure for Motorola's DCX3520e-M set-top.
The cold reset is generally used by operational and field personnel to accomplish the
following:
•
Restore the set-top to a known state.
•
Clear channel maps and application settings.
•
Remove application and software objects above the platform code.
•
Clear the Out of Band (OOB) Last Known Carrier (LKC) and force the units to hunt for
a new OOB control channel.

Remote Control Cold Reset

1. Remove the set-top from its packaging.
2. Apply AC power to the set-top.
3. Point the remote control at the set-top and press the SELECT key.
The POWER LED on the front panel begins to flash slowly.
4. Release the SELECT key.
5. Within 2 seconds, press the 3 key on the remote control.
The POWER LED flashes quickly.
6. Within 2 seconds, press the 2 key on the remote control.
The POWER LED will flash slowly.
7. Within 2 seconds, press the 8 key on the remote control.
The POWER and MESSAGE LEDs flash two times, and the set-top performs a cold
reset operation.
