Secura Key ENTRACOMP 26SA User & Installation Manual

With remote open input
Hide thumbs Also See for ENTRACOMP 26SA:
Table of Contents

Advertisement

Quick Links

®

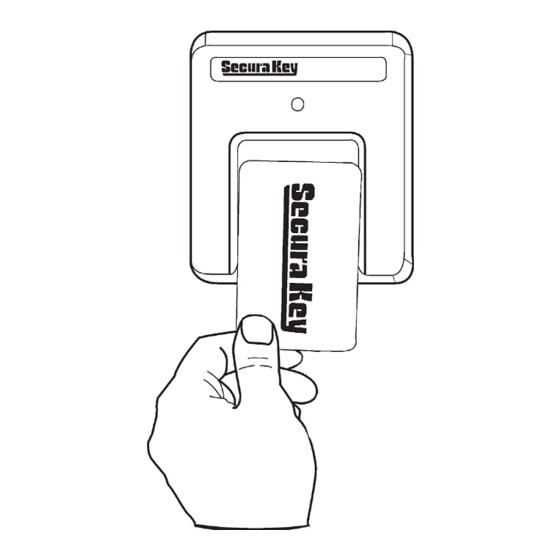

ENTRACOMP
26SA
With Remote Open Input
User/Installation Manual

Advertisement

Table of Contents
loading

Related Manuals for Secura Key ENTRACOMP 26SA

Summary of Contents for Secura Key ENTRACOMP 26SA

  • Page 1 ® ENTRACOMP 26SA With Remote Open Input User/Installation Manual...
  • Page 2 COPYRIGHT © 2007 SOUNDCRAFT INC.

  • Page 3: Table Of Contents

    ............14 INSTALLATION INSTRUCTIONS ..........15 SURFACE HOUSING TO SINGLE GANG ELECTRICAL BOX ..........15 SURFACE HOUSING WITHOUT ELECTRICAL BOX ..........15 SURFACE HOUSING WITH POST MOUNT ............16 SURFACE HOUSING WITH FLANGE MOUNT ADAPTER ............... 17 Secura Key • i...
  • Page 4 METAL SURFACE HOUSING TO SINGLE GANG ELECTRICAL BOX ..........25 METAL SURFACE HOUSING WITHOUT ELECTRICAL BOX ..........25 METAL SURFACE HOUSING WITH POST ADAPTER ............. 26 METAL SURFACE HOUSING WITH FLANGE ADAPTER ............. 27 SPECIFICATIONS ................ 30 V041007 3320389-E (6570) Secura Key • ii...

  • Page 5: Introduction

    Your unique system code is what prevents program cards from other systems from programming your system. There are 15 different program cards. There are ten number cards (0 through 9) and five function cards. The program cards are as follows: Secura Key • 1...
  • Page 6 “2” “3” THREE “4” FOUR “5” FIVE “6” “7” SEVEN “8” EIGHT “9” NINE “VALID” VALIDATE “VOID” VOID OR CANCEL “ ” THRU “SET TIMER” SET LATCH TIMER OR ANTIPASSBACK TIMER “ACTIVE/INACTIVE” ACTIVATE OR INACTIVATE SYSTEM Secura Key • 2...

  • Page 7: Setting The System (Facility) Code

    TOUCH CARD reader plate before the red/green LED indicator times out. When more than one facility code has been programmed, the unit will not distinguish between cards having different facility codes but the same ID number. Secura Key • 3...
  • Page 8 FIGURE 1 Secura Key • 4...

  • Page 9: Programming The Entracomp ® 26Sa

    VALIDATING A SINGLE CARD. To validate a single card, place the sequence of program cards representing the card number on the TOUCH CARD ® reader plate and then place the “VALID” card on ® the TOUCH CARD reader plate. Secura Key • 5...

  • Page 10: Validating A Block Of Cards

    “2” card on the TOUCH CARD reader plate, remove it and place ® the “5” card on the TOUCH CARD reader plate, remove it and place the ® “VALID” card on the TOUCH CARD reader plate, and remove it. VALID Secura Key • 6...

  • Page 11: Voiding Cards

    To reactivate the reader, again place the “ACTIVE/ ® INACTIVE” card on the TOUCH CARD reader plate and remove it. Secura Key • 7...

  • Page 12: Door Unlock Mode

    Then place the ® “SET TIMER” card on the TOUCH CARD reader plate and remove ® it. Then place the “VALID” card on the TOUCH CARD reader plate and remove it. SET TIMER VALID Secura Key • 8...

  • Page 13: Antipassback Waiting Time

    Place the “3” card on the TOUCH CARD reader plate, remove it, ® and place the “*” on the TOUCH CARD reader plate, remove it, and ® place the “SET TIMER” card on the TOUCH CARD reader plate, and remove it. SET TIMER Secura Key • 9...

  • Page 14: Relay Configuration

    To place the unit in the SecuRelay mode, place the “ ” card on the reader twice, followed by the “8” card. To return to normal mode, place the “ ” card on the reader twice followed by the “1” card. Secura Key • 10...

  • Page 15: Installation

    10-24 VDC WHITE YELLOW NORMALLY OPEN NOT USED GREEN COMMON NOT USED 8 VDC FOR SECURELAY™ NOT USED ORANGE REMOTE OPEN BROWN REMOTE OPEN * Can be reprogrammed as Normally Closed, See page 10. TABLE 1 Secura Key • 11...
  • Page 16 Secura Key • 12...
  • Page 17 Secura Key • 13...

  • Page 18: Remote Open

    Relay for the number of seconds you have selected when you set the Latch Timer. SecuRelay . The SecuRelay from Secura Key may be purchased ® separately for use with ENTRACOMP 26SA units which have firmware version 4.0 or later. SecuRelay...

  • Page 19: Installation Instructions

    (See Figure 5) 1. For exterior walls, apply 1/4 inch bead of silicone sealant around rear perimeter surface of mounting bracket gasket. Be sure there is sufficient sealant to make a good seal between gasket and wall. Secura Key • 15...

  • Page 20: Surface Housing With Post Mount

    2. Apply 1/8 inch bead of silicone sealant around rear perimeter surface of mounting bracket gasket. 3. Press plate against adapter and secure with four 10-32 x 5/16 pan head screws (provided). Secura Key • 16...

  • Page 21: Surface Housing With Flange Mount Adapter

    2. Apply silicone bead around perimeter of post flange. Place flange mount adapter against post flange and secure with four 10-32 x 1/2 flat head countersunk screws provided. 3. Follow instructions 2 - 7 for post mount adapter. Secura Key • 17...
  • Page 22 FIGURE 4 FIGURE 5 Secura Key • 18...
  • Page 23 FIGURE 6 FIGURE 7 Secura Key • 19...

  • Page 24: Flush Mount To Existing 5S Box

    Faceplate will hook onto mounting plate by pushing plate in and then sliding it down. 7. Secure faceplate to mounting plate using the two 4-40 screws provided. 8. Place faceplate door into door opening and rotate key 90° clockwise. Secura Key • 20...

  • Page 25: Flush Mount With 5S Box

    7. Be sure all appropriate wiring has been connected to the terminal board and then plug the terminal board cable into the socket on the circuit board (see wiring instructions). Secura Key • 21...

  • Page 26: Flush Mount Without 5S Box

    (8-32 fasteners are recommended). 5. Secure mounting plate to wall. Screws must be flat head countersunk #6 or #8. For an outdoor installation, silicone sealant is recommended between the mounting plate and the wall. Secura Key • 22...
  • Page 27 Faceplate will hook onto mounting plate by pushing plate in and then sliding it down. 8. Secure faceplate to mounting plate using the two 4-40 screws. 9. Place faceplate door into door opening and rotate key 90° clockwise. FIGURE 8 Secura Key • 23...
  • Page 28 FIGURE 9 FIGURE 10 Secura Key • 24...

  • Page 29: Metal Surface Housing To Single Gang Electrical Box

    6-32 x 1/4 security screw provided or equivalent. 6. Place housing door into door opening and rotate key 90 degrees clockwise. METAL SURFACE HOUSING WITHOUT ELECTRICAL BOX (See Figure 12) 1. For exterior wall, apply sealant to rear perimeter of mounting bracket gasket. Secura Key • 25...

  • Page 30: Metal Surface Housing With Post Adapter

    2. Apply 1/8 inch bead of silicone sealant around rear perimeter surface of mounting bracket gasket. 3. Press bracket with gasket against adapter and secure with the four 10-32 x 5/16 pan head screws provided. Secura Key • 26...

  • Page 31: Metal Surface Housing With Flange Adapter

    2. Apply silicone bead around perimeter of post flange. Place flange mount adapter against post flange and secure with four 10-32 x 1/2 flat head countersunk screws provided. 3. Follow instructions 2 - 7 for post mount adapter. Secura Key • 27...
  • Page 32 FIGURE 11 FIGURE 12 Secura Key • 28...
  • Page 33 FIGURE 13 FIGURE 14 Secura Key • 29...

  • Page 34: Specifications

    PROM (non-volatile) Card Capacity 65,503 cards Facility Code Up to 10 different codes simultaneously Latch Relay Programmable from 1 to 99 seconds Timed Antipassback Programmable from 1 to 99 minutes This product complies with UL 294 standards. Secura Key • 30...
  • Page 35 WARRANTIES OR MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedies provided herein are the buyers’ sole and exclusive remedies. In no event shall Secura Key be liable for direct, indirect, special, incidental or consequential damages (including loss of profits), whether based on contract, tort or any other legal theory.”...
  • Page 36 20301 Nordhoff Street Chatsworth, CA 91311 Phone: 818-882-0020 • Fax: 818-882-7052 TOLL FREE (800) 891-0020 www.securakey.com mail@securakey.com...
