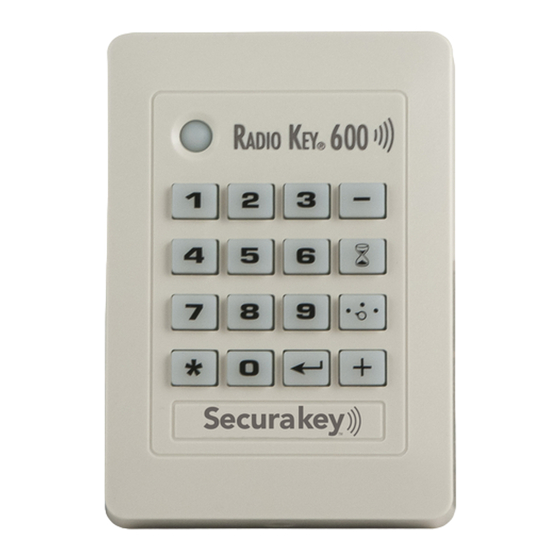

Secura Key Radio Key 600 Operating & Installation Manual

Stand alone proximity access control system
Hide thumbs Also See for Radio Key 600:

Advertisement

Quick Links

Download this manual
®
Radio Key
600
STAND ALONE PROXIMITY ACCESS CONTROL SYSTEM
TM
with DYNASCAN
TECHNOLOGY
Operating & Installation Guide
Rev. I
P/N 3320831
A Division of Soundcraft, Inc.
20301 Nordhoff Street
Chatsworth, CA 91311
Phone: 818-882-0020 Fax: 818-882-7052
Website:
www.securakey.com
E-mail:
mail@securakey.com
*Patent #6317027

Advertisement

loading

Related Manuals for Secura Key Radio Key 600

Summary of Contents for Secura Key Radio Key 600

  • Page 1 ® Radio Key STAND ALONE PROXIMITY ACCESS CONTROL SYSTEM with DYNASCAN TECHNOLOGY Operating & Installation Guide Rev. I P/N 3320831 A Division of Soundcraft, Inc. 20301 Nordhoff Street Chatsworth, CA 91311 Phone: 818-882-0020 Fax: 818-882-7052 Website: www.securakey.com E-mail: mail@securakey.com *Patent #6317027...
  • Page 3 ® Radio Key Operating & Installation Guide Table of Contents ® Illustrations Tables V121401 5486...
  • Page 5 Radio Key Operating & Installation ® INTRODUCTION ® Transponders The RK600 Access Control Unit Parts Supplied: Access Control Unit The RKAR Auxiliary Reader ® Secura Key Ÿ 1...
  • Page 6 Radio Key Operating & Installation ® RKAR RK600 Unit Auxiliary Reader (optional) Mounting Plate RK600-BB Back Box/ Spacer (optional) Figure 1 - RK600 Components Secura Key Ÿ 2...
  • Page 7 PIN code and the user’s name, and keep this information in a secure place. Error Warnings NOTE: User Number and ID Number Values in the following examples are for demonstration purposes only; enter the appropriate values for your system. Secura Key Ÿ 3...
  • Page 8 (ID Number 995) (User Number 12) Add a Series of Transponders to the System: Enter Password ENTER Press ADD. ENTER. + 1 + + 0 + (Starting User No. 1) (Ending User Number 10) (ENTER) (ADD) Secura Key Ÿ 4...
  • Page 9 Transponder near the RK600 Unit. A green light and beep means that the Transponder was deleted. (Hold Key Tag near Unit) (VOID) (ENTER) Delete a Transponder by Entering Transponder ID: Enter Password ENTER VOID ENTER + 9 + 9 + 5 + (VOID) (ENTER) (ID Number 995) Secura Key Ÿ 5...
  • Page 10 Enter Password ENTER SET TIMER ENTER + 5 + (SET TIMER) (5 Seconds) (ENTER) Set the Operating Mode: Enter Password ENTER MODE ENTER. (MODE) (Mode Number 2) (ENTER) To Exit Programming Mode Immediately MODE ENTER (MODE) (ENTER) Secura Key Ÿ 6...
  • Page 11 Radio Key Operating & Installation ® PROGRAMMING HINTS Password Adding the Same Transponder More Than Once Setting the Latch Timer Setting the Operating Mode BASIC OPERATION ® ® Secura Key Ÿ 7...
  • Page 12 (PIN Code Number 4321) NOTE: SYSTEM CONFIGURATION RK600 Unit Only RK600 Unit with Optional Auxiliary Reader For best reading distance, offset the RK600 Unit and Auxiliary Reader by about 6”. Metal Surfaces - Effect on Reading Distance ® Secura Key Ÿ 8...
  • Page 13 Radio Key Operating & Installation ® Vehicle Gate Applications Concealed Installation WIRING Table 1 - Cable Types and Distances Wire Application Cable Type Description separate Secura Key Ÿ 9...
  • Page 14 A short cable assembly extends from the back of the Optional Auxiliary Reader. Connect Plug P2 at the end of the cable to Socket J2 at the RK600 Unit. If the cable must be extended, for the best performance, use TWO Secura Key Ÿ 10...
  • Page 15 VDC supply which provides at least 150mA. DC power should be clean and filtered with no more than 1 VAC ripple (Peak to Peak). Do not run AC power WARNING RK600 will not operate on AC Voltage or with DC polarity reversed. Secura Key Ÿ 11...
  • Page 16 USE UNSHIELDED CABLE FOR PINS IF COMMON POWER SUPPLY IS USED FOR BOTH THE RK AND ELECTRONIC DOOR LOCK SURE TO INSTALL THE DIODE WHICH IS PROVIDED WITH THE ACCESS CONTROL UNIT Figure 3 - Wiring Diagram Secura Key Ÿ 12...
  • Page 17 Radio Key Operating & Installation ® Table 2 - Connector P1 Color Coding Wire Application Description Wire Color Table 3 - Connector P2 Color Coding Wire Wire Application Color Description Secura Key Ÿ 13...
  • Page 18 Do not locate two RK600 units closer than two (2) feet apart. Do not locate the RK600 or RKAR within two (2) feet of a PC Monitor or CPU enclosure, other source (electro-magnetic interference) such as radio transmitters, elevators, large electric motors or fluorescent ballasts. Installation Procedure Secura Key Ÿ 14...
  • Page 19 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 Electrical Box 1 2 3 4 RK600 or Auxiliary Wall Surface Reader Housing Figure 4 - Basic Installation Secura Key Ÿ 15...
  • Page 20 Figure 5 - Wall Mounting on Metal Surface with Optional Spacer Spacer Optional Thick Optional Thin Alignment Pins Mounting Gasket Mounting Gasket Optional Post or Flange Mount Adapter Mounting Optional RK600 or Auxiliary Plate Spacer Reader Housing Figure 6 - Post/Flange Mounting Secura Key Ÿ 16...

  • Page 21: Troubleshooting

    “Secura Key products are warranted against defects in materials and workmanship for a period of 2 years from the date of purchase. Secura Key will replace any Secura Key manufactured product, except cards or tags, returned to us freight prepaid within the warranty period.

  • Page 22: Specifications

    Back Box / Spacer - Beige, Lexan ® RK-GM Glass Mount Adaptor This product complies with UL 294 Standards, CE (European Standards) and with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. Secura Key Ÿ 18...
  • Page 23 Radio Key Operating & Installation ® FCC ID: NNHRK600 INSTRUCTION TO THE USER Ÿ Ÿ Ÿ Ÿ Secura Key Ÿ 19...
