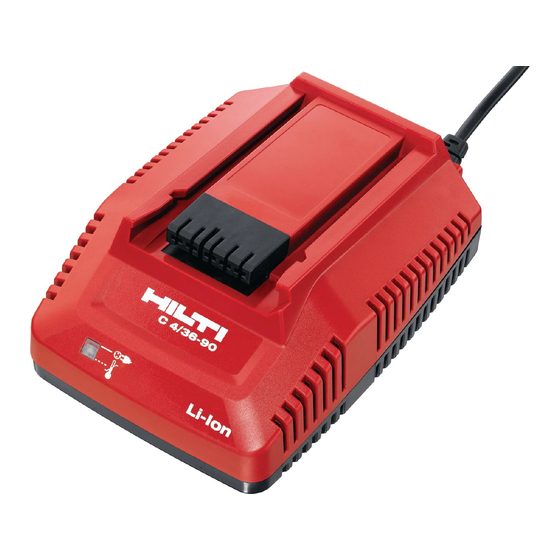

- Page 1 C 4/36-90 / C 4/36-350 Operating instructions Mode d’emploi Manual de instrucciones Manual de instruções Printed: 15.11.2013 | Doc-Nr: PUB / 5129966 / 000 / 03...
- Page 2 Printed: 15.11.2013 | Doc-Nr: PUB / 5129966 / 000 / 03...
- Page 3 This Product is Certified Ce produit est homologué Producto homologado por Este produto está registrado Printed: 15.11.2013 | Doc-Nr: PUB / 5129966 / 000 / 03...
- Page 4 Printed: 15.11.2013 | Doc-Nr: PUB / 5129966 / 000 / 03...
-
Page 5: Table Of Contents
ORIGINAL OPERATING INSTRUCTIONS C4/36-90 ⁄ C4/36-350 charger It is essential that the operating instructions are read before the appliance is operated for the first time. Always keep these operating instructions together with the appliance. Ensure that the operating instructions are with the appliance when it is given to other persons. -
Page 6: General Information
1 General information 1.1 Safety notices and their meaning DANGER Draws attention to imminent danger that will lead to serious bodily injury or fatality. WARNING Draws attention to a potentially dangerous situation that could lead to serious personal injury or fatality. CAUTION Draws attention to a potentially dangerous situation that could lead to slight personal injury or damage to the equipment or other property. -
Page 7: Description
Serial no.: 2 Description 2.1 Use of the product as directed The appliance is used to charge Hilti Li-ion batteries with a rated voltage of 7.2 to 36 volts. The working environment may be as follows: construction site, workshop, renovation, conversion or new construction. -
Page 8: Technical Data
2.3 Charge status of the Liion battery during charging Charge status in LEDs light constantly LEDs blink LED 1,2,3,4 = 100 % LED 1,2,3 LED 4 75 % to 100% LED 1,2 LED 3 50 % to 75 % LED 1 LED 2 25 % to 50 % LED 1... -
Page 9: Safety Instructions
NOTE Battery charging times are extended if temperatures are too high or too low. Cold temperatures may result in the battery not being fully charged. Charging Charging times Examples for Voltage Type times with with the power tools the C 4/3690 C 4/36350 14.4 V B 14/1.6... - Page 10 4.1.4 Battery charger use and care a) Use the charger only to charge the Hilti batteries approved for use with this charger. b) Do not use a charger if its casing or electric supply cord is defective.
- Page 11 Liquids ejected from the battery may cause irritation or burns. 4.1.5 Service Have your appliance repaired only by qualified specialists using only genuine Hilti spare parts.This will ensure that the appliance remains safe to use. 4.2 Additional safety precautions 4.2.1 Personal safety a) Take care to ensure that the charger is standing in a steady, secure position.
-
Page 12: Before Use
Dirty or dusty appliances should thus be checked at a Hilti service center at regular intervals, especially if used frequently for working on conductive materials. -
Page 13: Operation
LED doesn’t light or goes out during operation, unplug the supply cord from the power outlet and then plug it in again. If the green LED still doesn’t light after reconnecting it several times, return the appliance to Hilti Service for repair. - Page 14 NOTE If use of the appliance continues, further battery discharge will be stopped automatically before the battery cells suffer damage. Charge the battery with the Hilti charger approved for use with Li-ion batteries. NOTE –...
-
Page 15: Care And Maintenance
If no LED lights on the battery after activation of the charge status indicator, the battery is defective. Have the battery tested at a Hilti center. 7 Care and maintenance CAUTION Disconnect the supply cord plug from the power outlet. -
Page 16: Disposal
Dispose of the batteries in accordance with national regulations or return them to Hilti. Most of the materials from which Hilti tools or appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, Hilti has already made arrangements for taking back old tools and appliances for recycling. -
Page 17: Manufacturer's Warranty - Tools
9 Manufacturer’s warranty - tools Hilti warrants that the tool supplied is free of defects in material and workmanship. This warranty is valid so long as the tool is operated and handled correctly, cleaned and serviced properly and in accordance with the Hilti Operating Instructions, and the technical system is maintained. - Page 18 LI-9494 Schaan Tel.: +423 / 234 21 11 Fax:+423 / 234 29 65 www.hilti.com Hilti = registered trademark of Hilti Corp., Schaan W 4124 | 0913 | 00-Pos. 3 | 1 Printed in Liechtenstein © 2013 2024462 / A5 Right of technical and programme changes reserved S. E. & O...
