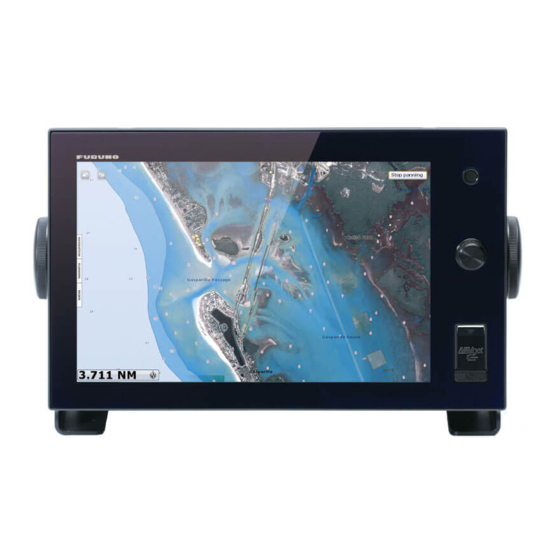

Furuno TZT9 Installation Manual
Multi function display
Hide thumbs
Also See for TZT9:
- Operator's manual (291 pages) ,
- User handbook manual (16 pages) ,
- Setup procedure (11 pages)
Table of Contents
Advertisement
Quick Links
Installation Manual
Multi Function Display
TZT9/TZT14
Model
SAFETY INSTRUCTIONS ................................................................................................ i
SYSTEM CONFIGURATION ........................................................................................... ii
EQUIPMENT LISTS........................................................................................................ iii
1. MOUNTING..............................................................................................................1-1
1.1 Mounting Considerations ...................................................................................................1-1
1.2 Flush Mounting ..................................................................................................................1-2
1.3 Desktop Mounting ..............................................................................................................1-4
2. WIRING....................................................................................................................2-1
2.1 Wiring Instructions .............................................................................................................2-1
2.2 CAN bus/NMEA0183 Data Conversion and CAN bus Bridging.........................................2-8
2.3 Example NavNet TZtouch System Configurations...........................................................2-11
3. SETTING UP THE EQUIPMENT .............................................................................3-1
3.1 How to Set Time Zone, Language and Units .....................................................................3-3
3.2 Menu Initial Setup ..............................................................................................................3-5
3.3 How to Set up the Radar....................................................................................................3-8
3.4 How to Set up the Sounder..............................................................................................3-11
3.5 Wireless LAN Setting .......................................................................................................3-13
PACKING LISTS ......................................................................................................... A-1
OUTLINE DRAWINGS ................................................................................................ D-1
INTERCONNECTION DIAGRAM ................................................................................ S-1
www.furuno.com
All brand and product names are trademarks, registered trademarks or service marks of their respective holders.
Advertisement
Table of Contents
Related Manuals for Furuno TZT9
Summary of Contents for Furuno TZT9
-
Page 1: Table Of Contents
Installation Manual Multi Function Display TZT9/TZT14 Model SAFETY INSTRUCTIONS ....................i SYSTEM CONFIGURATION ................... ii EQUIPMENT LISTS......................iii 1. MOUNTING......................1-1 1.1 Mounting Considerations ....................1-1 1.2 Flush Mounting ........................1-2 1.3 Desktop Mounting ......................1-4 2. WIRING........................2-1 2.1 Wiring Instructions ......................2-1 2.2 CAN bus/NMEA0183 Data Conversion and CAN bus Bridging.........2-8 2.3 Example NavNet TZtouch System Configurations............2-11... -
Page 3: Safety Instructions
Steering Standard Connection of an incorrect power compass compass supply can cause fire or damage the equipment. 0.30 m 0.50 m TZT9 0.64 m 0.40 m TZT14 0.05 m 0.05 m MCU-002... -
Page 4: System Configuration
CCD Camera MCU-002 CCD Camera Multi Function Event SW Display External Buzzer TZT9/TZT14 Speed Alarm Power input for CAN bus Environmental category 12/24 VDC Sensor units: Exposed to the weather All other units: Protected from the weather : Standard Supply *: The power supply unit is required when you connect the radar sensor. -
Page 5: Equipment Lists
CP19-01600 For TZT14 000-022-432 000-022-620 FP19-01700 For TZT9 000-022-621 Accessories 000-022-622 FP19-01900 For TZT14 000-022-623 001-175-310 SP19-01301 Fuses (for TZT9) 001-201-370 Spare Parts 001-166-210 SP19-01201 Fuses (for TZT14) 001-201-420 Optional supply Name Type Code No. Remarks Joint Box TL-CAT-012 000-016-714-01... - Page 6 DVI-D/D S-LINK 10M 001-133-980-10 24 pin, for video output, 10 m External Buzzer OP03-136 000-086-443 Buzzer: PKB5-3A40 Replacement Kit OP19-9 001-233-680 For TZT9 OP19-10 001-233-690 OP19-11 001-233-700 For TZT14 OP19-12 001-233-710 Network (LAN) Cable LAN cable, straight, 2 pairs, MOD-Z073-030+...
-
Page 7: Mounting
SAFETY INSTRUCTIONS to pre- vent disturbance to the magnetic compass. The TZT9/14 can be flush mounted in a console or panel, or mounted on a desktop. When removing the equipment If the equipment is removed from the vessel, cover the connector of the cable with the... -
Page 8: Flush Mounting
3. Screw the wing bolts and the wing nuts of the flush mount fixture so that the pro- tector for screw moves to the flush mount fixture. Wing bolt Wing nut Flush mount fixture Protector for screw Move to the fixture. 4. Connect all cables at the back of the TZT9/14. (See chapter 2.) - Page 9 1. MOUNTING 5. Set the TZT9/14 to the cutout. 6. Fasten the flush mount fixtures to the holes for the hanger at both sides of TZT9/ 14 with two hex. bolts (M8x15, supplied). Hex. bolt (M8x15) Flush mount fixture Holes for the hanger 7.
-
Page 10: Desktop Mounting
Follow the procedure below to mount the TZT9 or TZT14 on a desktop. 1. Fix the hanger by using self-tapping screws (supplied). 2. Screw knob bolts into the TZT9/14, set the unit to the hanger and tighten the knob bolts. -
Page 11: Wiring
WIRING Wiring Instructions TZT9 MOD-WPAS0001-030+ cable Ground wire (Supplied, 3 m) (Local supply, IV-8sq.) TO: Ship’s ground DVI-D AUDIO (for External Display) (L: Line out, Line out MJ-A3SPF0017- R: Line in) Line in 050ZC cable (Supplied, 5 m) TO: 12/24 VDC... - Page 12 Ground wire (Local supply, IV-8sq.) TO: Ship’s ground DVI-D AUDIO -DRS series (for External Display) MJ-A3SPF0017- (L: Line out, Line out, -TZT9/14 R: Line in) Line in) 050ZC cable -DFF series (Supplied, 5 m) -HUB-101 TO: 12/24 VDC -FUSION-Link equipment M12-05BM+05BF/...
- Page 13 In any single NavNet TZtouch network, a combination of up to six TZT9/14 may be connected to each other. All NavNet TZ- touch network components have integrated regular RJ45 Ethernet port(s), one on TZT9 and three on TZT14.
- Page 14 The TZT9/14 and DRS (radar sensor) use “Ethernet Bridging” to link the DRS CAN bus and the TZT9/14 CAN bus data. Refer to paragraph 2.2.1 for more information. Note that the TZT9/14 CAN bus port is not pow- ered unless external power is applied to the FRUDD-18AFFM-L180 cable of MULTI port and must be connected to a properly configured CAN bus network.
- Page 15 2. WIRING NMEA0183 equipment To connect an NMEA0183 equipment to TZT9/14, use the CAN bus network via the optional NMEA data converter IF-NMEA2K2 (or IF-NMEA2K1). This NMEA connec- tion can accept a baud rate of 4800 or 38400. Heading input to TZT9/14 allows functions such as Radar Overlay and course stabili- zation (North up, Course up, etc.) in the radar operating modes.
- Page 16 2. WIRING 3. Pass DVI-D, VIDEO, AUDIO and/or USB cables through the fixing metal (sup- plied). Orient the fixing metal as shown below. Upward 4. Attach each connector to the appropriate location at rear of the equipment 5. Pass cables through the slit on the boot cover. 6.
- Page 17 9. For TZT9, fasten two binding screws to re-attach the fan cover. Video input TZT9/14 can use regular analog video inputs (PAL or NTSC) that connect to the TZT9/ 14 directly or use IP cameras that connect directly to the network HUB. IP cameras can be seen by all TZT9/14 connected to the NavNet TZtouch network, unlike analog video that can be viewed only on the equipment where the source is connected.
-
Page 18: Can Bus/Nmea0183 Data Conversion And Can Bus Bridging
Note: Use an external monitor that has the same aspect ratio as your equipment (TZT9: 5:3, TZT14: 16:10) to show the picture with proper size. USB port The TZT9/14 has one USB Ver. 2.0 port. This USB port can be used to connect a ge- ® neric USB Touch Screen (compatible with Windows 7 HID generic driver). - Page 19 Connection of TZT and DRS radar sensor Connect TZT to DRS radar sensor with Ethernet cable. RADAR SENSOR DRS2D/DRS4D/ DRS4A/DRS6A/DRS12A/DRS25A GPS RECEIVER GP-330B TZT9/TZT14 POWER SUPPLY UNIT PSU-012: w/DRS2D/4D/4A/6A/12A PSU-013: w/DRS25A : Ethernet cable : CAN bus cable 2.2.2 CAN bus (NMEA2000) input/output...
- Page 20 The CAN bus output PGN setting (found under the [Initial Setup] menu) is global to the network. Note that only one TZT9/14 will output CAN bus data on the network at a time: the TZT9/14 which is powered ON first. If that display is turned OFF, another will take its place to output the data.
-
Page 21: Example Navnet Tztouch System Configurations
Configurations Basic plotter/fish finder installation The FURUNO GP-330B is connected to the CAN bus backbone cable, using the op- tional NMEA data converter IF-NMEA2K2 (or IF-NMEA2K1). The DFF series network sounder is directly connected to the LAN port of the TZT using the standard supply cable (3 m). - Page 22 DRS2D/DRS4D GPS RECEIVER GP-330B Cable from Two-way cable GP-330B (MOD-ASW0001) CAN bus backbone cable Power Supply Unit CAN bus PSU-012/013/017 drop cable TZT9/14 Cable from 12-24 VDC IF-NMEA2K2 DFF3 NETWORK SOUNDER ST-BY HUB-101 12 VDC NMEA DATA CONVERTER IF-NMEA2K2 12-24 VDC...
-
Page 23: Setting Up The Equipment
SETTING UP THE EQUIPMENT This chapter shows you how to set up your system according to the equipment you have connected. You can do almost all operations on this equipment by just touching the display, following the instructions below. Touch control description The touch control depends on the screen type. - Page 24 3. SETTING UP THE EQUIPMENT About menu operations The following procedure shows how to use the menu system. 1. Press the key to turn the power on. 2. After the display selection window appears (approx. 90 sec- onds), press the Home key to show the menu icon bar. Home key Home key Home key...
-
Page 25: How To Set Time Zone, Language And Units
3. SETTING UP THE EQUIPMENT Icon Description This icon means that menu item has some options. Touch it to show the option window (pull-down list). Touch the menu item with this icon to display the soft- ware keyboard, to enter alphanumeric data. For de- tails, see “How to use the software keyboard”... - Page 26 3. SETTING UP THE EQUIPMENT 4. Select time difference between local time and UTC time to use local time from the pull-down list. Local Time Offset UTC -06:00 UTC -06:00 UTC -05:00 UTC -04:00 UTC -03:00 UTC -02:00 5. Select [Language] to show its option window. 5.0 kn Manual Demo Speed Language...
-
Page 27: Menu Initial Setup
3. SETTING UP THE EQUIPMENT Menu Initial Setup This section shows you how to set your system according to the sensors you have connected. Drag the main menu, then select the [Initial Setup] to show the [Menu Initial Setup] sub menus. - Page 28 3. SETTING UP THE EQUIPMENT Menu item Description Options (setting range) [Transducer Draft Select the draft source to use on the dis- [Automatic], [Hardware], [Man- Source] play, among the following: ual] Automatic: Use the offset value in the DPT sentence. If the DPT sentence does not have an offset value, the value entered at Transducer Draft (page 3-11) is used.
- Page 29 Note: The [External Touch Screen Mode] allows you to facilitate the operation of the TZT9/TZT14 when an external dual touch screen is connected to the MFD via the USB and DVI-D ports. When the [External Touch Screen Mode] is set to [ON], the contex- tual Rotokeys appear near the cursor and the dual gesture is set automatically to dis- play the “Home”...
-
Page 30: How To Set Up The Radar
3. SETTING UP THE EQUIPMENT How to Set up the Radar If you have a radar sensor, set the sensor’s characteristics on the [Radar] menu. Open the [Menu Radar] sub menus. Drag the main menu to select [Radar]. 1. Select [Radar Source] on the [Menu Radar] sub menus, then select the radar type connected. - Page 31 [20m], [25m], [30m], [35m], [40m], [45m], [50m] [Antenna Longitudinal Position] Enter the antenna positioning bow-stern (Longitudinal) and port- starboard (lateral) position from the origin. [Antenna Lateral Position (- Port)] Origin Others See Operator’ Manual for TZT9/14.
- Page 32 3. SETTING UP THE EQUIPMENT How to align the antenna heading You have mounted the antenna unit facing straight ahead in the direction of the bow. Therefore, a small but conspicuous target dead ahead visually should ap- pear on the heading line (zero degrees). In practice, you will probably observe some small bearing error on the display be- cause of the difficulty in achieving accurate initial positioning of the antenna unit.
-
Page 33: How To Set Up The Sounder
3. SETTING UP THE EQUIPMENT How to Set up the Sounder If you have a sounder (FCV-1150, BBDS1 or DFF series), set up the sounder as shown in this section. Drag the main menu to select [Sounder]. You can confirm the actual sounder display on the left-hand side of the screen while setting up. - Page 34 3. SETTING UP THE EQUIPMENT Motion sensor setting up When you tap the [Transducer Setup], the [Motion Sensor] sub menus are shown be- neath the [Transducer Setup] sub menus. If the satellite compass SC-30 or SC50/110 is connected, set the distance between the antenna unit (or sensor) of the satellite compass and transducer (high and low if connected) here.
-
Page 35: Wireless Lan Setting
3. SETTING UP THE EQUIPMENT Wireless LAN Setting The TZT9/14 can be configured to create a wireless network (“Ad Hoc”) or to connect to an existing wireless network. Connecting to an existing wireless network is very useful if you already have an Access Point setup on your boat, especially if you have Internet available. - Page 36 3. SETTING UP THE EQUIPMENT This page is intentionally left blank. 3-14...
- Page 52 ・FURUNO Authorized Distributor/Dealer 9-52 Ashihara-cho, Nishinomiya, 662-8580, JAPAN A : FEB 2012 Printed in Japan All rights reserved. F : JUN . 15, 2015 Pub. No. IME-44700-F (GREG ) TZT9/14 0 0 0 1 7 6 0 1 8 1 5...
