Replacing an auxiliary light
bulb
This model is equipped with two auxil-
iary lights. If an auxiliary light bulb
burns out, replace it as follows.

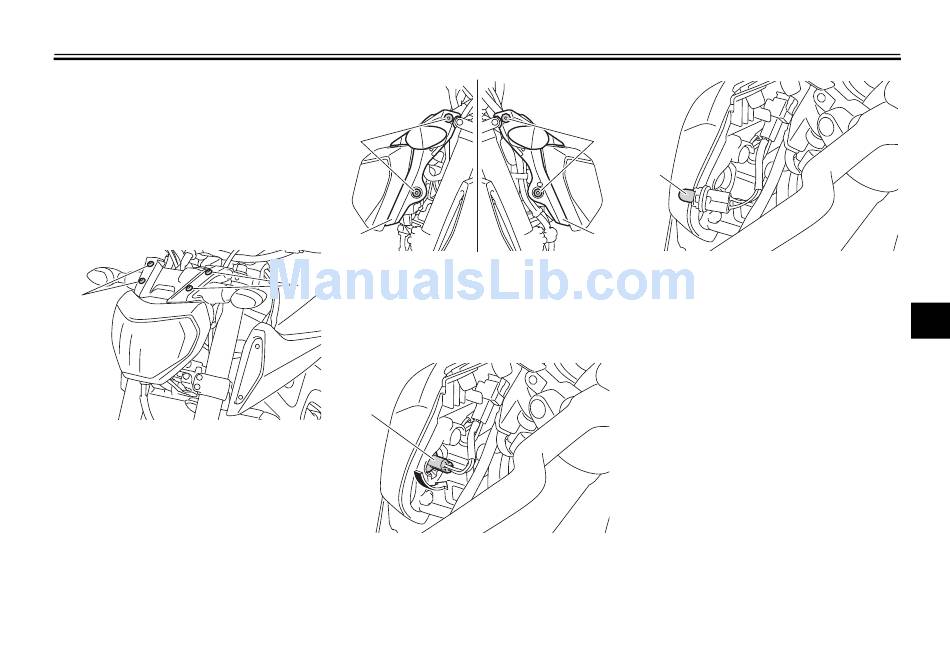

1. Remove the headlight unit side
covers by removing the bolts on
each side.
1
1. Bolt
PERIODIC MAINTENANCE AND ADJUSTMENT
EAU58021
1
2
1. Bolt
2. Headlight unit side cover
1
2. Remove the auxiliary light bulb
socket (together with the bulb) by
turning it counterclockwise.
1
1. Auxiliary light bulb socket
3. Remove the burnt-out bulb by
pulling it out.
6-38
1
1
2
1. Auxiliary light bulb
4. Insert a new bulb into the socket.
5. Install the socket (together with
the bulb) by turning it clockwise.
6. Place the headlight unit side cov-
ers in their original position, and
then install the bolts.
