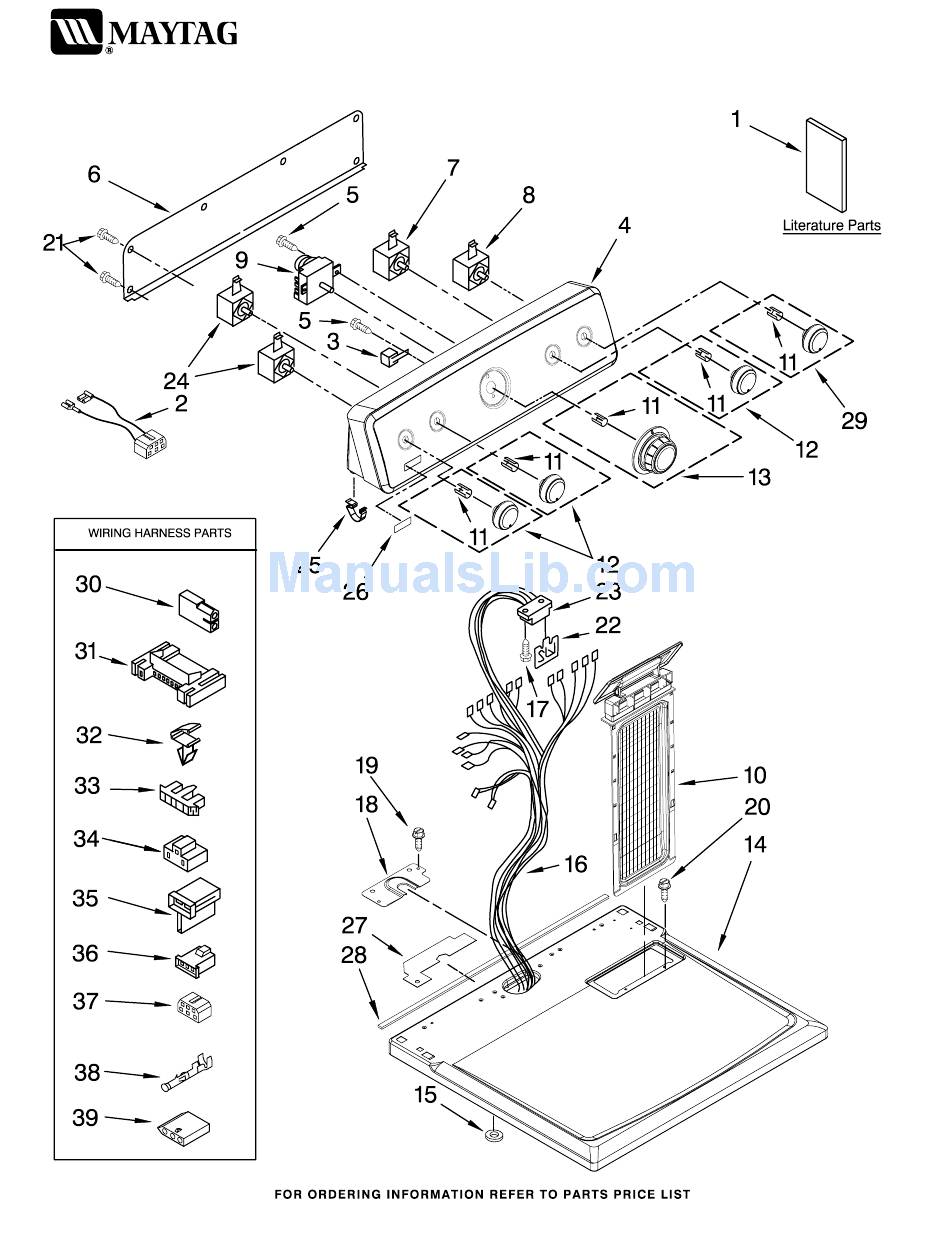

- Page 1 TOP AND CONSOLE PARTS 29"GAS DRYER For Model: MGD5707TQ0 (White) 10−07 Litho in U.S.A.(drd) Part No. W10135996 Rev. B...
- Page 2 6 W10112576 Panel, Rear Console 8530169 Switch, Temperature 3398094 Switch, Push−To−Start 8566184 Timer Assembly 60 HZ. TOP AND CONSOLE PARTS For Model: MGD5707TQ0 (White) Illus. Part DESCRIPTION Screen, Lint 8565972 White 8536939 Clip, Spring 12 W10112582 Knob, Control (3) 13 W10112584 Knob, Timer...
-
Page 3: Cabinet Parts
CABINET PARTS For Model: MGD5707TQ0 (White) W10135996... - Page 4 341029 Clamp−Pipe 3404413 Plug−Hole 18849 Pad, Top Hinge 3392100 Foot, Dryer 279810 Foot−Optional (Extended Length) (Package of 2) (Not Included.) CABINET PARTS For Model: MGD5707TQ0 (White) Illus. Part DESCRIPTION 660658 Clamp, Motor Cabinet (Includes Item 4) 8530603 White 98234 Clip, Ground (2)
- Page 5 BULKHEAD PARTS For Model: MGD5707TQ0 (White) W10135996...
- Page 6 BULKHEAD PARTS For Model: MGD5707TQ0 (White) Illus. Part DESCRIPTION 348368 Lint Chute Assembly 489463 Screw, 8−18 x 5/8 3388703 Washer−Support 347139 Seal, Lint Chute 90767 Screw, 8−18 x 3/8 487909 Screw, 8−15 x 1/2 3392519 Thermal−Fuse (91C) 8066086 Drum Hole...
-
Page 7: Burner Assembly
8318272 BURNER ASSEMBLY For Model: MGD5707TQ0 (White) USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES BA−150 W10135996... - Page 8 8318272 BURNER ASSEMBLY For Model: MGD5707TQ0 USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES Illus. Part 8318272 Burner Assembly 688617 Tube, Burner 694298 Bracket, Ignitor 686590 Ignitor 3393909 Screw & Washer 343641 Screw, 10−16 x 1/2 693986 Base, Burner 3387057 Screw, 8−18 x 3/8...
- Page 9 OPTIONAL PARTS (NOT INCLUDED) W10135996 For Model: MGD5707TQ0 (White) Illus. Part DESCRIPTION ACCESSORY PARTS 279948 Kit, Dryer Repair 346764 Kit, Hold−Down (Gas Dryer Mobile Home Installation) 3406839 Dry Rack 8522199 Kit, Dryer Vent Testing PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.)
