TOP AND CONSOLE PARTS
29" GAS DRYER
For Model: MGD5700TQ1
(White)
Part No. W10155379 Rev. A
1
10−07 Litho in U.S.A.(LT)

Advertisement

loading
Need help?

Need help?

Do you have a question about the MGD5700TQ1 and is the answer not in the manual?

Questions and answers

Related Manuals for Maytag MGD5700TQ1

Summary of Contents for Maytag MGD5700TQ1

  • Page 1 TOP AND CONSOLE PARTS 29" GAS DRYER For Model: MGD5700TQ1 (White) Part No. W10155379 Rev. A 10−07 Litho in U.S.A.(LT)

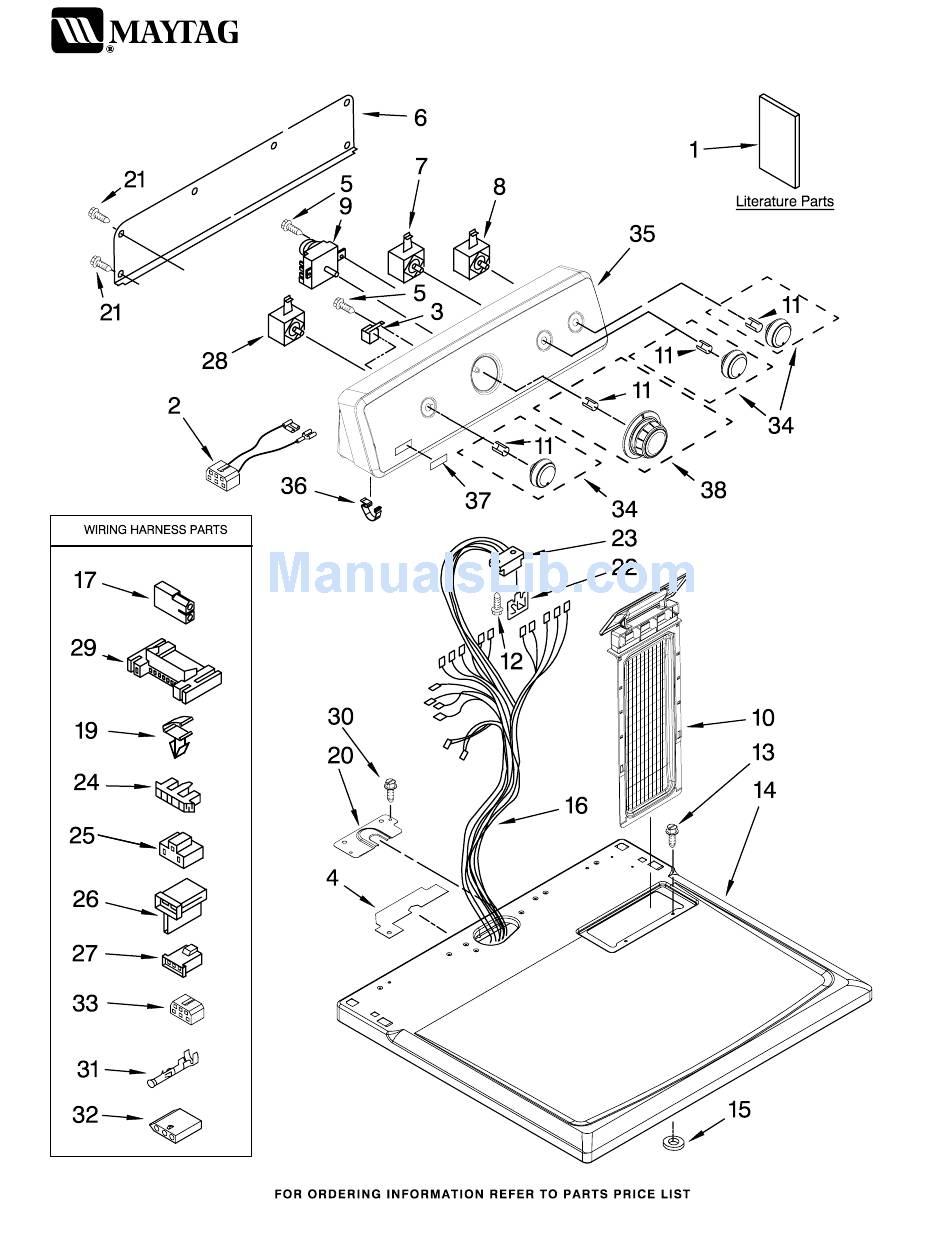

  • Page 2 Temperature 8 W10117655 Switch, Push−To−Start 8566184 Timer Assembly 60 HZ. Screen, Lint 8565972 White TOP AND CONSOLE PARTS For Model: MGD5700TQ1 (White) Illus. Part DESCRIPTION 8536939 Clip, Spring 359625 Screw, 8−18 x 1/2 688983 Screw, 8−18 x 5/8 14 W10112599 Top...

  • Page 3: Cabinet Parts

    CABINET PARTS For Model: MGD5700TQ1 (White) W10155379...
  • Page 4 341029 Clamp−Pipe 3404413 Plug−Hole 18849 Pad, Top Hinge 3392100 Foot, Dryer 279810 Foot−Optional (Extended Length) (Package of 2) (Not Included.) CABINET PARTS For Model: MGD5700TQ1 (White) Illus. Part DESCRIPTION 660658 Clamp, Motor 8530603 Cabinet (Includes Illus. 4) 98234 Clip, Ground (2)
  • Page 5 BULKHEAD PARTS For Model: MGD5700TQ1 (White) W10155379...
  • Page 6 BULKHEAD PARTS For Model: MGD5700TQ1 (White) Illus. Part DESCRIPTION 348368 Lint Chute Assembly 489463 Screw, 8−18 x 5/8 3388703 Washer−Support 347139 Seal, Lint Chute 90767 Screw, 8−18 x 3/8 487909 Screw, 8−15 x 1/2 3392519 Thermal−Fuse (91C) 8066086 Drum Hole...

  • Page 7: Burner Assembly

    8318272 BURNER ASSEMBLY For Model: MGD5700TQ1 (White) BA−150 W10155379...
