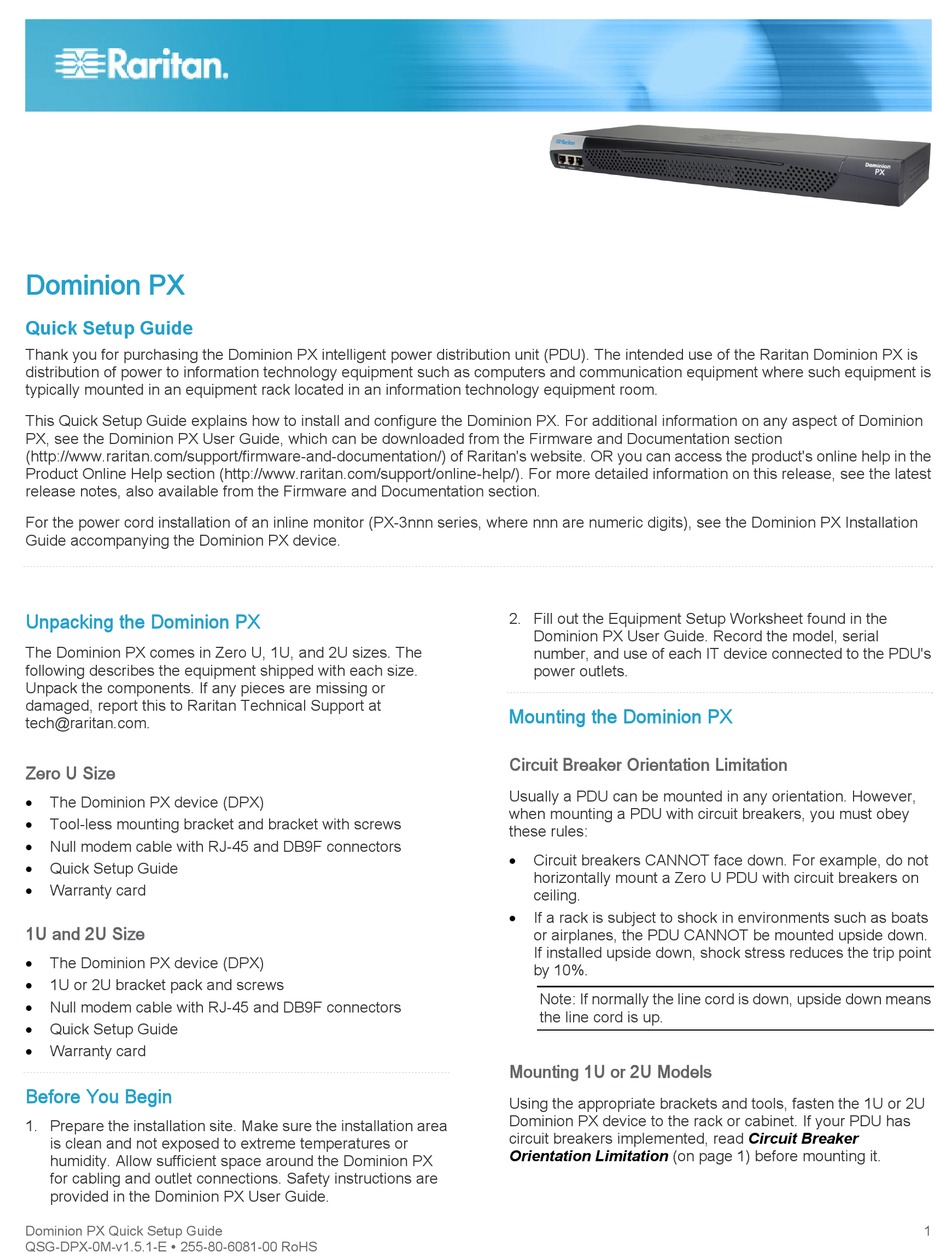

Raritan Dominion PX Quick Setup Manual

Dominion PX
Quick Setup Guide
Thank you for purchasing the Dominion PX intelligent power distribution unit (PDU). The intended use of the Raritan Dominion PX is
distribution of power to information technology equipment such as computers and communication equipment where such equipment is
typically mounted in an equipment rack located in an information technology equipment room.
This Quick Setup Guide explains how to install and configure the Dominion PX. For additional information on any aspect of Dominion
PX, see the Dominion PX User Guide, which can be downloaded from the Firmware and Documentation section
(http://www.raritan.com/support/firmware-and-documentation/) of Raritan's website. OR you can access the product's online help in the
Product Online Help section (http://www.raritan.com/support/online-help/). For more detailed information on this release, see the latest
release notes, also available from the Firmware and Documentation section.
For the power cord installation of an inline monitor (PX-3nnn series, where nnn are numeric digits), see the Dominion PX Installation
Guide accompanying the Dominion PX device.

Unpacking the Dominion PX

The Dominion PX comes in Zero U, 1U, and 2U sizes. The
following describes the equipment shipped with each size.
Unpack the components. If any pieces are missing or
damaged, report this to Raritan Technical Support at
tech@raritan.com.
Zero U Size

The Dominion PX device (DPX)

Tool-less mounting bracket and bracket with screws

Null modem cable with RJ-45 and DB9F connectors

Quick Setup Guide

Warranty card
1U and 2U Size

The Dominion PX device (DPX)

1U or 2U bracket pack and screws

Null modem cable with RJ-45 and DB9F connectors

Quick Setup Guide

Warranty card
QS Rule

Before You Begin

1. Prepare the installation site. Make sure the installation area
is clean and not exposed to extreme temperatures or
humidity. Allow sufficient space around the Dominion PX
for cabling and outlet connections. Safety instructions are
provided in the Dominion PX User Guide.
Dominion PX Quick Setup Guide
QSG-DPX-0M-v1.5.1-E  255-80-6081-00 RoHS
2. Fill out the Equipment Setup Worksheet found in the
Dominion PX User Guide. Record the model, serial
number, and use of each IT device connected to the PDU's
power outlets.
QS Rule

Mounting the Dominion PX

Circuit Breaker Orientation Limitation

Usually a PDU can be mounted in any orientation. However,
when mounting a PDU with circuit breakers, you must obey
these rules:

Circuit breakers CANNOT face down. For example, do not
horizontally mount a Zero U PDU with circuit breakers on
ceiling.

If a rack is subject to shock in environments such as boats
or airplanes, the PDU CANNOT be mounted upside down.
If installed upside down, shock stress reduces the trip point
by 10%.
Note: If normally the line cord is down, upside down means
the line cord is up.

Mounting 1U or 2U Models

Using the appropriate brackets and tools, fasten the 1U or 2U
Dominion PX device to the rack or cabinet. If your PDU has
circuit breakers implemented, read
Orientation Limitation (on page 1) before mounting it.
Circuit Breaker
