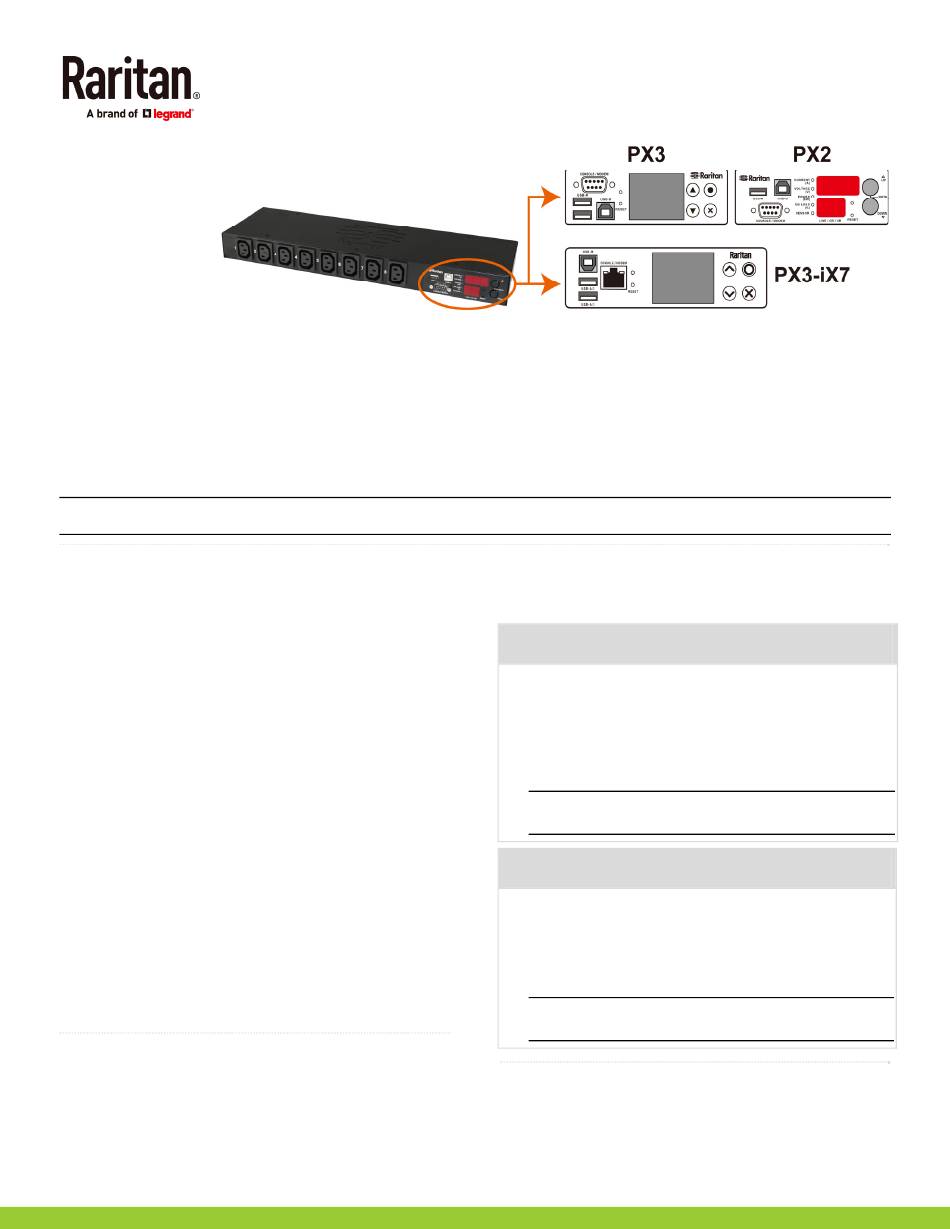

Raritan PX2 Quick Setup Manual

Raritan PX2, PX3 and PX3-iX7
Thank you for purchasing the Raritan intelligent power distribution unit (PDU) -- PX2, PX3, or PX3 with iX7
PX3-iX7 or iX7 ). The intended use of the Raritan PX2/PX3 is distribution of power to information technology equipment such as
™
computers and communication equipment where such equipment is typically mounted in an equipment rack located in an information
technology equipment room.
This Quick Setup Guide explains how to install and configure the PX2/PX3. For further details on using the PX2/PX3, access online
help from the application, or download the user guide from the Raritan website's
For more detailed information on this release, see the latest release notes on the Support page.
Note: In this guide, PX3 refers to both PX3 and PX3-iX7 models unless otherwise specified. For major differences between the
iX7-Specific Features
two product models, see
Safety Precautions
WARNING! Read and understand all sections in this guide
before installing or operating this product. Failure to heed any
of the following WARNINGS may result in electric shock, fire,
personal injury and death. Prior to operating this product, the
user should read the online help and specifically the warnings
in the online help.
WARNING! Connect this product to an AC power source
whose voltage is within the range specified on the product's
nameplate.
WARNING! Connect this product to an AC power source that
is current limited by a suitably rated fuse or circuit breaker in
accordance with national and local electrical codes.
WARNING! Use this product in a dry location.
WARNING! Connect this product to a protective earth ground.
Never use a "ground lift adaptor" between the product's plug
and the wall receptacle.
WARNING! If this product is a model that requires assembly
of its line cord or plug, all such assembly must be performed
by a licensed electrician and the line cord or plugs used must
be suitably rated based on the product's nameplate ratings
and national and local electrical codes.
QS Rule
Unpacking the PX2/PX3
The PX2/PX3 comes in Zero U, 1U, and 2U sizes. The following
describes the equipment shipped with each size. Unpack the
components. If any pieces are missing or damaged, report
Raritan PX Quick Setup Guide
QSG-DPX2-1C-v3.4.0-E  255-80-6099-00 RoHS
(on page 7).
this to Raritan Technical Support at tech@raritan.com, or
contact the Raritan partner where you purchased the product.
Zero U Size

PX2 or PX3 PDU

Mounting screws, brackets and/or buttons

Cable retention clips for the inlet and/or outlets (for some
models only)

An "optional" null-modem cable with DB9 connectors on
both ends (Raritan number: 254-01-0006-00)
Note: For PX3-iX7, use a third party RJ45-to-DB9
adapter/cable instead of the null-modem cable.
1U and 2U Size

PX2 or PX3 PDU

1U or 2U bracket pack and screws

Cable retention clips for the inlet (for some models only)

An "optional" null-modem cable with DB9 connectors on
both ends (Raritan number: 254-01-0006-00)
Note: For PX3-iX7, use a third party RJ45-to-DB9
adapter/cable instead of the null-modem cable.
QS Rule
Before You Begin
1. Prepare the installation site. Make sure the installation
area is clean and not exposed to extreme temperatures or
QUICK SETUP GUIDE
controller (also known as
™
Support page http://www.raritan.com/support/
( ).
1
