Raritan Dominion PX Quick Setup Manual

Hide thumbs Also See for Dominion PX:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Quick Setup Manual

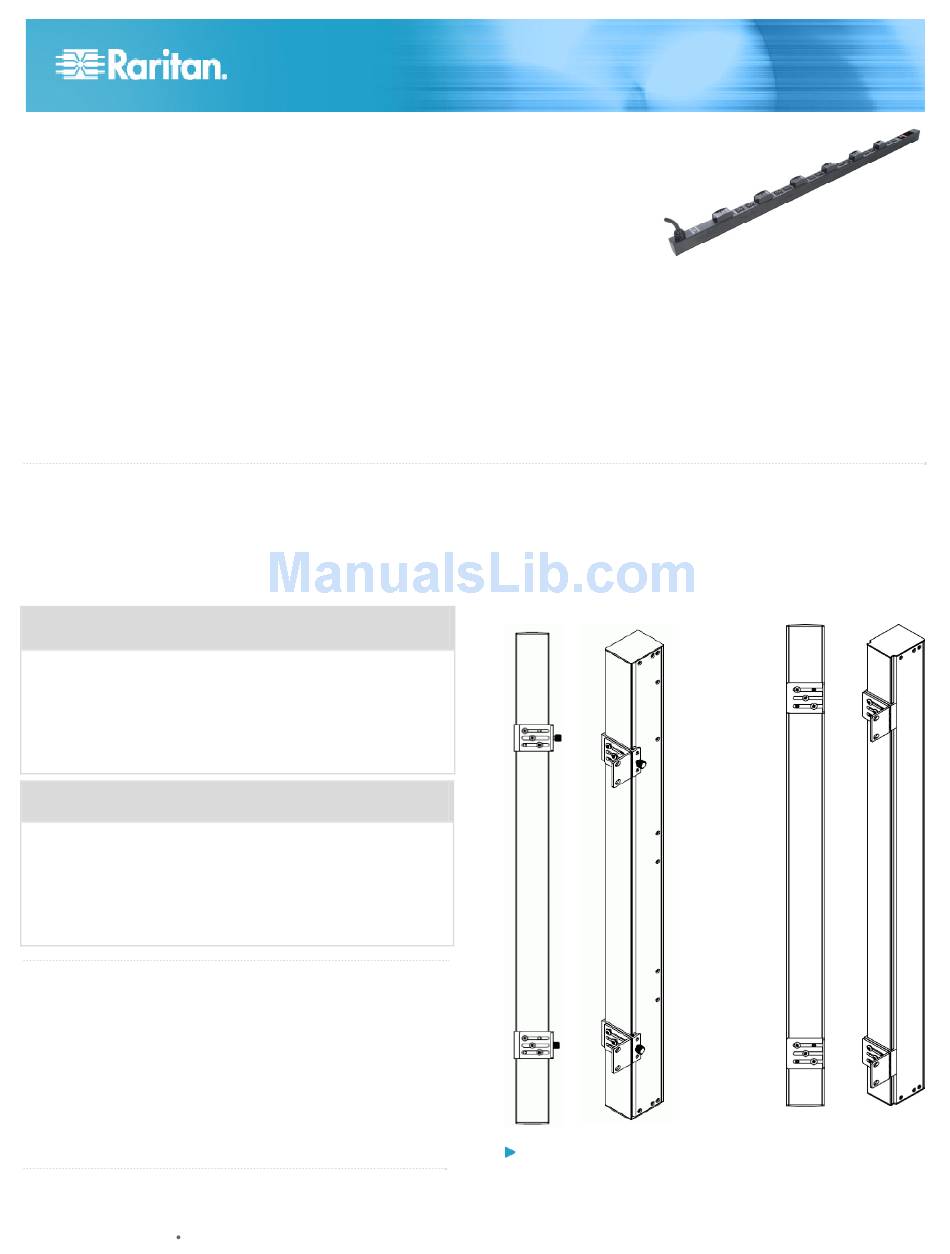

Dominion PX
Quick Setup Guide
Thank you for purchasing the Dominion PX intelligent power distribution unit (PDU). The intended use of the Raritan Dominion PX is
distribution of power to information technology equipment such as computers and communication equipment where such equipment is
typically mounted in an equipment rack located in an information technology equipment room.
This Quick Setup Guide explains how to install and configure the Dominion PX. For additional information on any aspect of Dominion PX,
see the accompanying Dominion PX User Guide. For more detailed information on this release, see the latest release notes provided by
Raritan.
Unpacking the Dominion PX
Dominion PX comes in Zero U, 1U, and 2U sizes. The following
describes the equipment shipped with each size. Unpack the
components. If any pieces are missing or damaged, report this
to Raritan Technical Support at tech@raritan.com.
Zero U Size
•
Dominion PX device
•
Mounting screws, brackets and/or buttons
•
A null-modem cable with DB9 connectors on both ends
(Raritan number: 254-01-0006-00) (optional)
•
Cable retention clips for outlets or the inlet (for PX-1000
series only)
1U and 2U Size
•
Dominion PX device
•
1U or 2U bracket pack and screws
•
A null-modem cable with DB9 connectors on both ends
(optional) (Raritan number: 254-01-0006-00)
•
Cable retention clips for outlets or the inlet (for PX-1000
series only)
QS Rule

Before You Begin

1. Prepare the installation site. Make sure the installation area
is clean and not exposed to extreme temperatures or
humidity. Allow sufficient space around the Dominion PX
for cabling and outlet connections. Safety instructions are
provided in the Dominion PX User Guide.
2. Fill out the Equipment Setup Worksheet found in the
Dominion PX User Guide. Record the model, serial number,
and use of each IT device connected to the PDU's power
outlets.
QS Rule
Dominion PX Quick Setup Guide
QSG-DPX2-0D-v2.0.5-E 255-80-6099-00 RoHS
Mounting the Dominion PX
Use one of the mounting methods to install your Dominion PX
device as appropriate.
Mounting Zero U Models Using L-Bracket
To mount Zero U models using L-brackets:
1. Align the baseplates on the rear of the Dominion PX device.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dominion PX and is the answer not in the manual?

Questions and answers

Related Manuals for Raritan Dominion PX

Summary of Contents for Raritan Dominion PX

  • Page 1: Before You Begin

    This Quick Setup Guide explains how to install and configure the Dominion PX. For additional information on any aspect of Dominion PX, see the accompanying Dominion PX User Guide. For more detailed information on this release, see the latest release notes provided by Raritan.
  • Page 2 L-bracket's slots. The rackmount side of brackets should face either the left or right side of the Dominion PX device. 4. Fasten the brackets in place with at least three screws (one through each slot).

  • Page 3: Mounting Zero U Models Using Claw-Foot Bracket

    This section describes how to mount a PX-1000 series PDU using two buttons only. To mount Zero U models using claw-foot brackets: 1. Align the baseplates on the rear of the Dominion PX device. 2. Secure the baseplates in place. To secure a baseplate with the thumbscrew, turn the thumbscrew until it is tightened.

  • Page 4: Mounting Zero U Models Using L-Brackets And Buttons

    PX device to the rack or cabinet. QS Rule Installing Cable Retention Clips (Optional) If your Dominion PX device is designed to use a cable retention clip, install the clip before connecting a power cord. A cable retention clip prevents the connected power cord from coming loose or falling off.

  • Page 5: Connecting Dominion Px To Your Network

    Stop bits = 1 Parity = None Flow control = None 3. Press Enter. 4. Dominion PX prompts you to log in. Note that both of user QS Rule name and password are case sensitive. Connecting Dominion PX to a Power Source a.

  • Page 6: Command Description

    Subnet mask network subnetMask <netmask> 11. If all are correct, type exit to log out of Dominion PX. If any are incorrect, repeat Steps 7 to 10 to change any network where <netmask> is the subnet mask.

  • Page 7: Safety Precautions

    MAC Addresses of Zero U Models Conductor Continuity and Polarity A label is affixed to a Zero U Dominion PX device, showing The system should be checked to ensure correct polarity and both of the serial number and MAC address of the PDU.

  • Page 8: Additional Information

    Contact Support page in the Support section on Raritan's website for technical support contact information worldwide. Raritan's products use code licensed under the GPL and LGPL. You can request a copy of the source code. For details, see the Open Source Software Statement (http://www.raritan.com/about/legal-statements/open-source-software-statement...
