Summary of Contents for Ozito AGG-051L

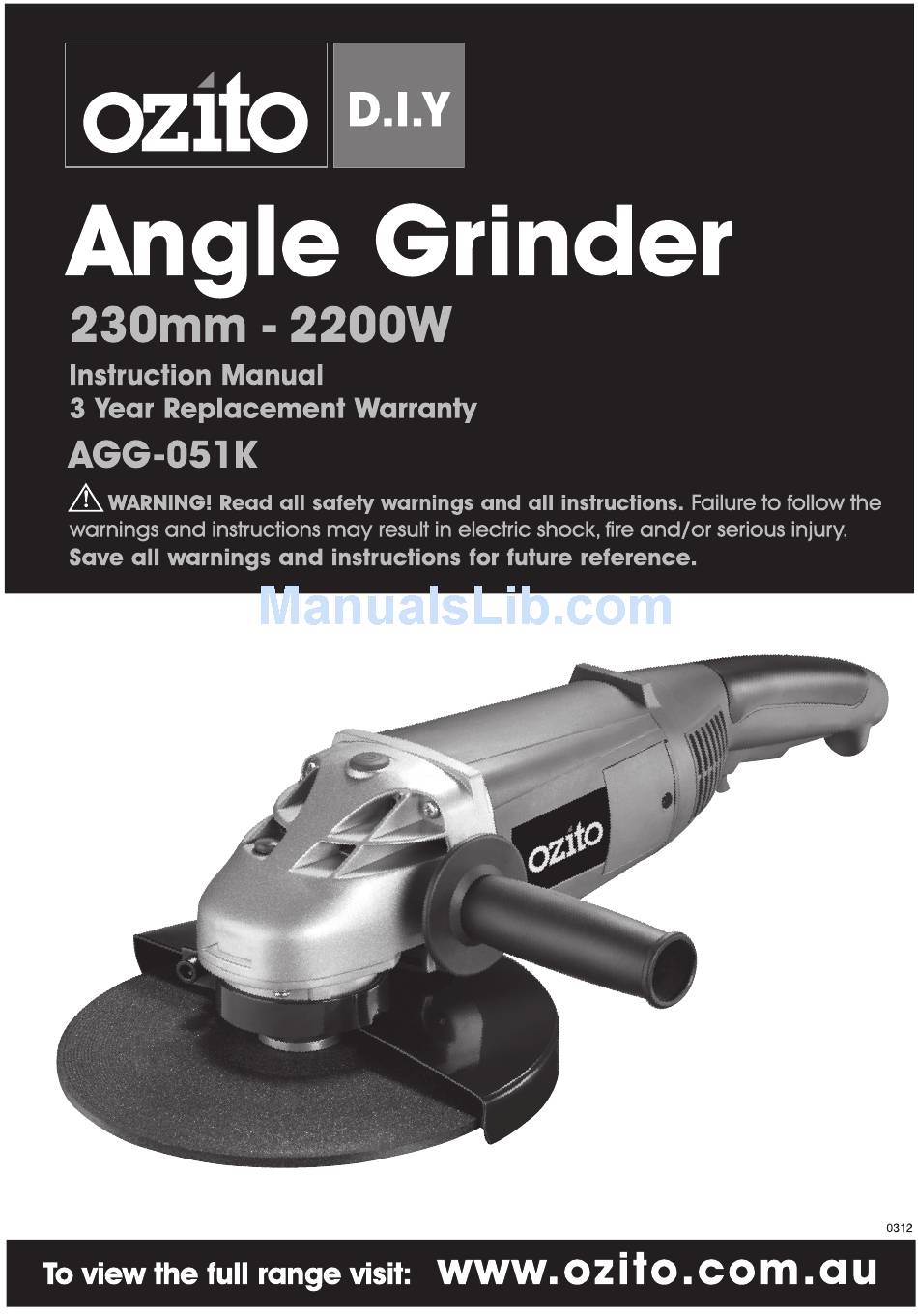

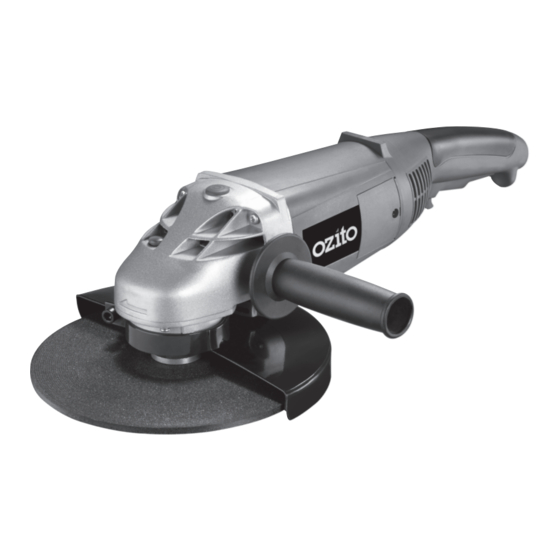

- Page 2 SPECIFICATIONS - MODEL NO. MSH-115 SPECIFICATIONS - MODEL NO. AGG-051K Motor: 2200W No load speed: 6000 rpm Disc size: 230mm (9”) Spindle size: Bore size: 22mm SPECIFICATIONS - MODEL NO. MSH-115 KNOW YOUR PRODUCT 1. Metal gear case 6. Three position side handle 2.
-
Page 3: Electrical Safety
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. -
Page 4: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool" in all of the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 GENERAL POWER TOOL SAFETY WARNINGS d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
-
Page 6: Additional Safety Instructions For Angle Grinders
ADDITIONAL SAFETY INSTRUCTIONS FOR ANGLE GRINDERS a) This power tool is intended to function as a grinder, polisher or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. - Page 7 ADDITIONAL SAFETY INSTRUCTIONS FOR ANGLE GRINDERS (cont.) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control. m) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
- Page 8 ADDITIONAL SAFETY INSTRUCTIONS FOR ANGLE GRINDERS (cont.) Additional safety instructions for grinding and cutting-off operations Safety Warnings Specific for Grinding and Abrasive Cutting-Off Operations: a) Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
-
Page 9: Operation
If you are fitting any other kind of attachment, refer to attachment fitting instructions. Ozito Industries P/L will not be responsible for any damage or injury caused due to the incorrect fitting of grinding or cutting discs or any other kind of attachment. - Page 10 OPERATION (cont.) • Tighten the outer flange by locking the spindle, as explained previously, then use the pin spanner to tighten the flange. • Removal of the disc is conducted in reverse order to the above. Note: 80mm flanges should be used for cutting discs as they offer more support for the disc.
- Page 11 OPERATION (cont.) Switch The grinder is fitted with a lock off safety switch. To operate the switch. first push the spring loaded lever at the front of the switch forward. Once this lever is pushed forward, depress the switch to start the angle grinder. To switch the tool off, release the pressure on the switch and it will return to the off position automatically.
-
Page 12: Maintenance
Always replace both brushes at the same time. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool. -
Page 13: Caring For The Environment
1 x Pin spanner 1 x Spare set of carbon brushes 1 x 40mm Set of flanges 1 x Instruction manual OZITO INDUSTRIES PTY LTD AUSTRALIA (Head Office) 1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175 Telephone: 1800 069 486 Facsimile: +61 3 9238 5588 Website: www.ozito.com.au... -
Page 14: Warranty
If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations. • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175...
