Target Application Environments
Target Application Environments
Introduction
LAN and Legacy
Protocol over
Frame Relay
Terminals
Video and Legacy
Protocols over
Frame Relay -
Banking
Application
1-6
This section describes example applications for the PathBuilder S21x switch.
The PathBuilder S21x switch supports multiprotocol encapsulation of IP traffic and
legacy serial protocols over frame relay as specified by RFC 1490. As shown in

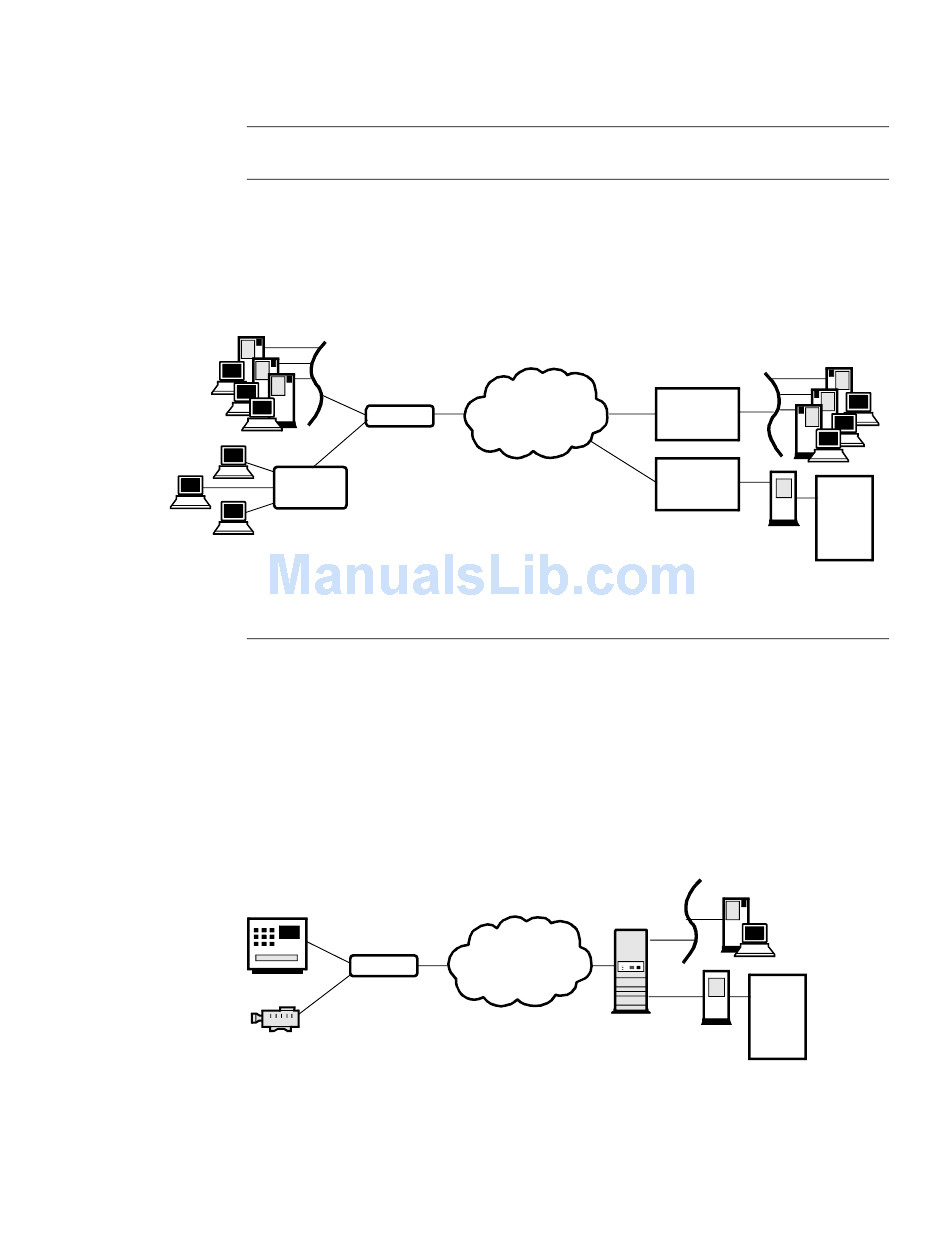

Figure 1-2, a SNA cluster controller connects to a serial port on the PathBuilder S21x
switch and the Ethernet LAN connects to the 10BaseT Ethernet port. The PathBuilder
S200 series switch is fully interoperable with third party routers via RFC 1490.
Ethernet
PB S200
Cluster
Controller
Figure 1-2. LAN and Legacy Protocol over Frame Relay
As shown in Figure 1-3, the PathBuilder S21x switch can support encapsulation of
video and legacy protocol over frame relay. This use of PathBuilder S21x switch
suits banking applications such as Automated Bank Machines (ABMs). With Dial on
Demand software feature enabled, the PathBuilder S21x switch initiates a connection
only when there is data transfer, i.e. only for the duration of a bank transaction. The
RemoteVu Daughtercard can capture video and send video streams to the central
bank's security system.
Automated Teller Machine
Equipped with
Bank ATM
RemoteVu
Daughtercard
S200
Video
Camera
Figure 1-3. LAN and Legacy Protocol over Frame Relay
Third Party
Frame Relay
Third Party
Frame Relay
About the PathBuilder S21x Switch
Ethernet
Router
Router
HOST
FEP
Central Bank
PCs Running Host Video
Workstation Application
HOST
FEP
