Installation Guide

5. Analog Audio Connections

The ESP processor includes balanced dual-channel (6-terminal) Phoenix Contact
the termination end of each connector includes printed terminal block descriptions. The following diagram shows recommended
balanced/unbalanced wiring between the processor audio connectors and common audio plugs used to connect the ESP processor to
external audio components.

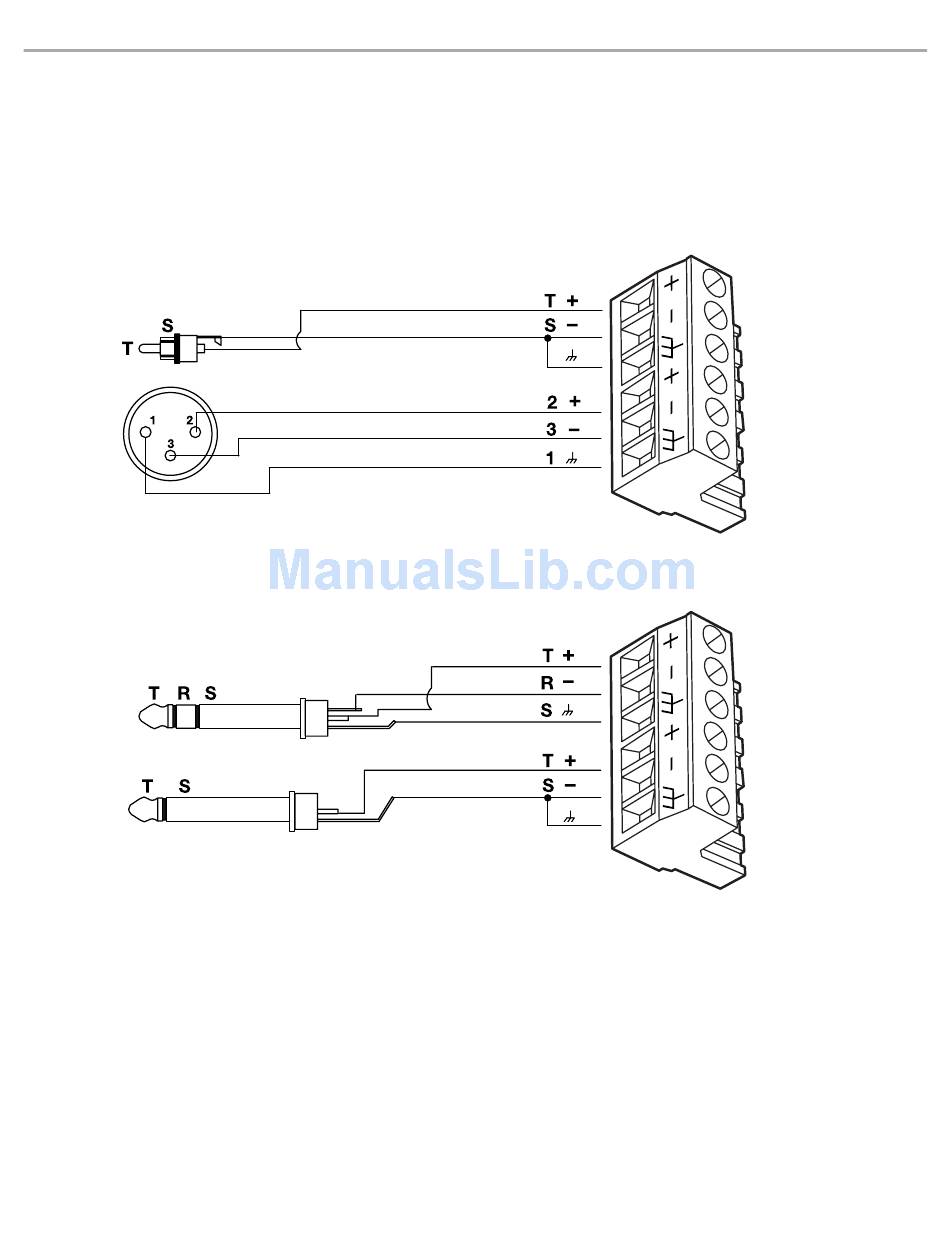

Figure 6. Wiring Balanced and Unbalanced Devices
Source Device
Connector
RCA
XLR
Phone Plug
(Balanced)
Phone Plug
(Unbalanced)
16
audio connectors. To help with ease of installation,
®
Phoenix Contact
®
Input Connector
