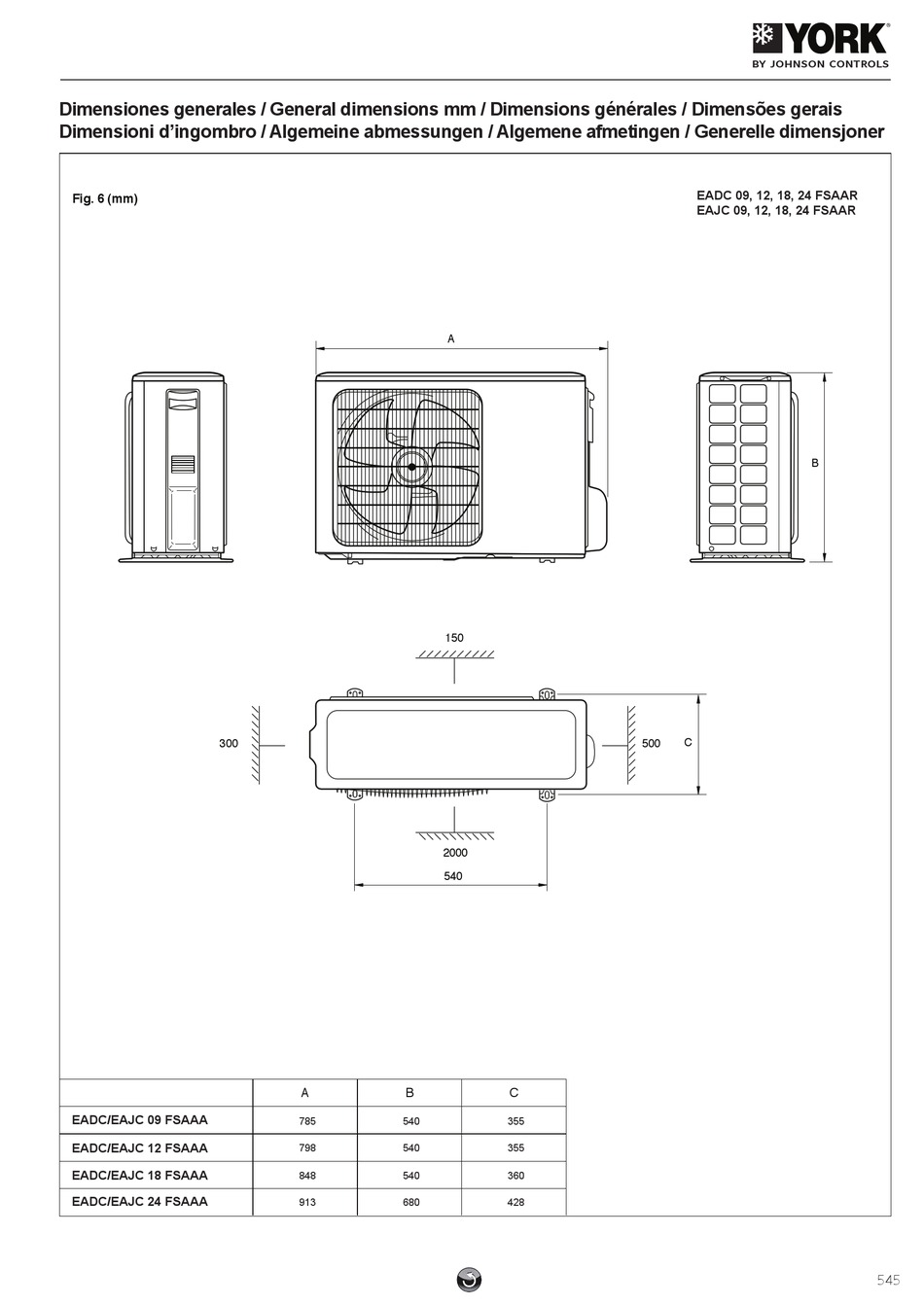

Dimensiones generales / General dimensions mm / Dimensions générales / Dimensões gerais
Dimensioni d'ingombro / Algemeine abmessungen / Algemene afmetingen / Generelle dimensjoner
Fig. 6 (mm)
300
EADC/EAJC 09 FSAAA
EADC/EAJC 12 FSAAA
EADC/EAJC 18 FSAAA
EADC/EAJC 24 FSAAA
A
150
2000
540
A
B
785
540
798
540
848
540
913
680
500
C
355
355
360
428
by johnson controls
EADC 09, 12, 18, 24 FSAAR
EAJC 09, 12, 18, 24 FSAAR
B
C
3
545
