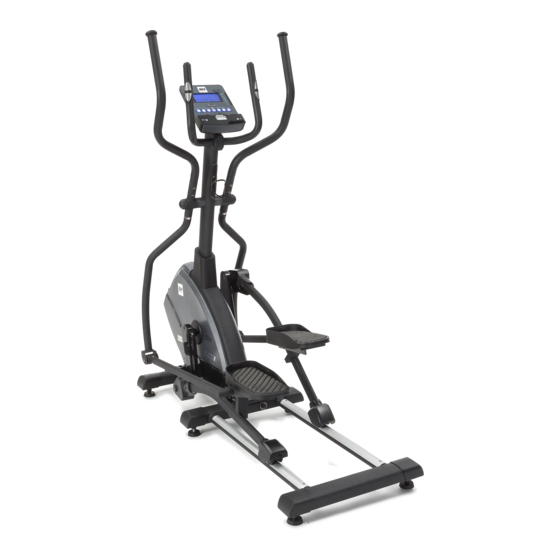

S1Xi
OWNER'S MANUAL
Important: Read all instructions carefully before using this product. Retain this owner's manual for future reference.
BH North America | 20155 Ellipse, Foothill Ranch, California 92610 | p.949.206.0330 | f.949.206.0350 | www.BHFitnessUSA.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S1Xi and is the answer not in the manual?

Questions and answers

Related Manuals for BH FITNESS S1Xi

Summary of Contents for BH FITNESS S1Xi

  • Page 1 S1Xi OWNER’S MANUAL Important: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. BH North America | 20155 Ellipse, Foothill Ranch, California 92610 | p.949.206.0330 | f.949.206.0350 | www.BHFitnessUSA.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Title Page Introduction Warnings and Labels Safety Information Exercise Instruction Training Guidelines Suggested Stretches Pre-Assembly Checklist Assembly Instructions Console Operations Maintenance and Cleaning Exploded View Drawing Parts List Warranty...

  • Page 3: Introduction

    CONGRATULATIONS Congratulations on your purchase of BH Fitness equipment. We hope you appreciate the style, quality, and value that exercisers around the world have come to expect from BH Fitness. If you have any questions, concerns or product issues please call our Customer Service Team at 1-866-325-2339 or email us at CustomerSupport@BHNorthAmerica.com.

  • Page 4: Warnings And Labels

    WARNINGS AND LABELS...

  • Page 5: Safety Information

    6. This machine must only be used for the purposes described in this manual. DO NOT use accessories that are not recommended by BH Fitness. Read manual prior to use and follow all warnings and instructions. 7. Do not place sharp objects near the machine.

  • Page 6: Exercise Instruction

    EXERCISE INSTRUCTION Use of the machine offers various benefits; it can improve fitness, muscle tone and when used in conjunction with a calorie controlled diet, it can help you lose weight. 1. Consult your doctor before starting any exercise program. It is advisable to undergo a complete physical examination.

  • Page 7: Training Guidelines

    TRAINING GUIDELINES Exercise is one of the most important factors in the overall health of an individual. Listed among its benefits are: • Increased capacity for physical work (strength endurance) • Increased cardiovascular (heart and arteries/veins) and respiratory efficiency • Decreased risk of coronary heart disease •...
  • Page 8 OXYGEN UPTAKE The effort that you can exert over a prolonged period of time is limited by your ability to deliver oxygen to the working muscles. Regular vigorous exercise produces a training effect that can increase your aerobic capacity by as much as 20 to 30%. An increased VO2 Max indicates an increased ability of the heart to pump blood, of the lungs to ventilate oxygen, and of the muscles to take up oxygen.
  • Page 9 HEART RATE As you exercise, your heart beat increases. This is often used as a measure of the required intensity of an exercise. You need to exercise hard enough to condition your circulatory system, and increase your pulse rate, but not enough to strain your heart. Your initial level of fitness is important when developing an exercise program for you.
  • Page 10 MUSCLE SORENESS For the first week or so, muscle soreness may be the only indication you have that you are on an exercise program. This, of course, does depend on your overall fitness level. A confirmation that you are on the correct program is a very slight soreness in most major muscle groups. This is quite normal and will disappear in a matter of days.

  • Page 11: Suggested Stretches

    SUGGESTED STRETCHES Head Rolls Rotate your head to the right for one count while feeling the stretch up the left side of your neck. Next, rotate your head back for one count, stretching your chin to the ceiling. Rotate your head to the left for one count, and finally, drop your head to your chest for one count.
  • Page 12 SUGGESTED STRETCHES Inner Thigh Stretch Sit with the soles of your feet together with your knees pointing outward. Pull your feet as close into your groin as possible. Gently push your knees towards the floor. Hold for 15 counts. Toe Touches Slowly bend forward from your waist, letting your back and shoulders relax as you stretch toward your toes.

  • Page 13: Pre-Assembly Checklist

    PRE ASSEMBLY CHECKLIST...
  • Page 14 HARDWARE PACK...

  • Page 15: Assembly Instructions

    ASSEMBLY INSTRUCTIONS...
  • Page 16 STEP 1 Install 2 of the Adjustment Foot (69) by screwing them into the underside of the Front Stabilizer (71). Align the Front Stabilizer (71) to Main Frame (51) and fasten with 4*Allen Screws (116). 116x4 STEP 2 Install 4 of the Adjustment Foot (69) by screwing them into the under side of the Rail Set (75).
  • Page 17 STEP 3 Insert Front Post (87) into Cover (105), and connect Computer Upper Cable (1) and Lower Cable (2). Then attach Front Post Set (87) to Main Frame (51), and fasten with 6*Allen Screws (117), 6*Spring Washers (118) and 6* Curved Washers (119). 117x6 118x6 119x6...
  • Page 18 STEP 4 A.) Attach Wheel Cover (108) to Pedal Arm Support Tube - R&L (77&84), secured with 2*Phillips Screws(127). B.) Attach Left Pedal Arm Support Tube (77) to Main frame (51) using 3*Plastic Washers (112), 1*Wave Washer (113), 1*Washer (111), 1*Spring Washer (118), 1*Hex Screw (120) . C.) Repeat the procedure to complete the right side assembly.
  • Page 19 STEP 5 Attach Left Lower Swing Handlebar (85) to Front Post (87), using 1*Bushing (114), 1*Wave Washer (113), 1*Plastic Washer (112), 1* Washer (111), 1*Spring Washer (118), 1*Hex Screw (120) and 1*Nut Cap (110). Repeat the procedure to complete the right side assembly.
  • Page 20 STEP 6 Use 2* Allen Screws (122) and Washers (121) to attach the Left Pedal (6) to Left Pedal Arm(97). Then peel off the adhesive sticker on the back of the Left Pedal Cushion and attach the Left Pedal Cushion to the Left Pedal. Repeat current procedure to complete the right side assembly. 122x4 121x4...
  • Page 21 STEP 7 Attach Right Pedal Arm (102) to Right Pedal Arm Support Tube (84), using 1*Pedal Bracket-R(126), 3* Flat Washers (121), 3*Spring Washers (118) and 3*Allen Screws (117) to fasten. Then use 2*Flat Washers (121), 2*Spring Washers (118), 2*Allen Screws (117) to fasten Right Pedal Arm (102) to the Right Swing Bar.
  • Page 22 STEP 8 Follow the same procedure as step 7 to assemble Left pedal arm (97). 117x5 118x5 121x5 STEP 9 Insert and pass two Pulse Sensor wires (5) through the hole in the Front Post (87). Use 2* Allen Screws (122) to secure the Handlebar (88). After the Handlebar (88) is secure, slide the Clamp Cover (107) over the clamp.
  • Page 23 STEP 10 Connect two Pulse Sensor Wires (5) with Computer Pulse wires (131). Next connect Computer Upper Cable (1) with computer cable (104). Now slide Computer (103) onto Front Post (87) and secure with 4* Philips Screws (125). Make sure to tuck the wires into the Front Post (87) so as not to pinch the wires.
  • Page 24 STEP 12 Align the Bottle Holder (106) to the holes in the Front Post (87) then secure with 2*Phillipps Screws (125). 125x2 STEP 13 If the machine is not level, you can adjust the Adjustment Feet (69) up or down until the machine is level.
  • Page 25 STEP 14 Plug the Adaptor (109) into the socket on the lower area in the front of the machine, then plug the other end into an outlet.
  • Page 26 ASSEMBLY VIEW...

  • Page 27: Console Operations

    CONSOLE OPERATIONS SPECIFICATIONS: ENTER To confirm all setting values RESET To reset all parameters to default value START/STOP To start or stop training To make upward setting change DOWN To make downward setting change RECOVERY In stop or start mode, pressing this button will start Heart Rate recovery status measurement.
  • Page 28 POWER MODE When the machine powers on, the display will light up with all numerals. After two seconds, it will enter the "user selecting" mode. If the user does not operate the machine, or the machine receives no signal after 4 minutes, the computer will enter an idol mode. GETTING STARTED - OPERATING PROCEDURE Start pedaling and the console will turn on.
  • Page 29 3. Press ENTER to confirm the AGE setting, then enter the HEIGHT setting. The right side will display HEIGHT, use the UP/DOWN buttons to select the HEIGHT setting. 4. Press ENTER to confirm the WEIGHT setting, then enter WEIGHT setting. The right side will display WEIGHT, use the UP/DOWN buttons to select the WEIGHT value.

  • Page 30: Manual Mode

    NAVIGATING THE PROGRAMS MANUAL MODE User may preset their own resistance level from 1 to 24 by pressing the UP/DOWN buttons. The default resistance level is 1. Press ENTER to confirm. Using the UP/DOWN buttons enter values for TIME, DISTANCE, CALORIES, PULSE, and then press START to begin your workout.
  • Page 31 PRESET PROGRAMS HRC PROGRAMS (55%, 75%, 90%, TAG) HRC 55% HRC 75% HRC 90% HRC Target Heart Rate TEST FUNCTIONS RECOVERY TEST Press the RECOVERY key to test HRC recovery speed. When in test mode, it will detect the HRC within 10 seconds. When finished, if there is no HRC displayed, the program will exit out of the HRC recovery mode.

  • Page 32: Fitness Test

    Test result is shown below: VALUE CONDITION Best Very good Good Normal Worse FITNESS TEST Enter FITNESS program and start the test. Test time is 8 minutes. Test result is below: VALUE CONDITION Very Good Good Fair Poor Very Poor FUNCTION STATISTICS AND RANGES ITEM SCREEN SHOWN RANGE...
  • Page 33 0 - 250 rpm BRAKE RESISTANCE L1 - L24 LEVEL “WARNING! Heart rate monitoring systems may be inaccurate. Over exercising may result in serious injury or death. If you feel faint stop exercising immediately.
  • Page 34 DOWNLOADING APPS AND PAIRING YOUR DEVICE WITH YOUR EQUIPMENT DOWNLOADING THE SOFTWARE Connect the Apple device with the App Store (iTunes) or your Android Device with Google Play, search for "Pafers", then read the APP introductions and Download the APPs with bicycle/elliptical machine functions to your device, for example Pedal Monitor or other applicable apps.
  • Page 35 PAIRING THE BLUETOOTH DEVICE WITH AN ANDROID DEVICE 1. Place the Android Device on the area in front of the LCD screen. 2. Enter into settings and turn Bluetooth on. 3. Your Android Device will detect all Bluetooth devices within range (following on screen instructions), click on the appropriate bluetooth device name and confirm your connection.

  • Page 36: Maintenance And Cleaning

    certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessorywith iPod, iPhone, or iPad may affect wireless performance.

  • Page 38: Parts List

    To order replacement parts: provide your customer service representative with the product model number and the part number located on the Parts List below, along with the quantity you require. Part # DESCRIPTION QTY. Part # DESCRIPTION QTY. S1Xi-1 Console cable S1Xi-40 Fixing clip S1Xi-2 Console cable S1Xi-41 Clip-C...
  • Page 39 Computer wire (with console) S1Xi-G07 Axle assembly S1Xi-105 Front post cover S1Xi-106 Bottle holder * Parts S1Xi-104 and S1Xi-131 can only be ordered as an assembly with the computer console, Part# S1Xi-103. S1Xi-107 Clamp cover S1Xi-108 Wheel cover S1Xi-109 Adaptor 6V...

  • Page 40: Warranty

    For more detailed warranty information or to register your product warranty easily online, visit our website at: www.BHFitnessUSA.com FOR WARRANTY REPAIRS, PLEASE DO NOT TAKE YOUR MACHINE BACK TO THE RETAIL STORE. CONTACT BH FITNESS FIRST. BH North America Corporation 20155 Ellipse Foothill Ranch, CA 92610 Phone: 949.206.0330;...
