Grundig GCA-B0323T Owner's Manual

Grundig GCA-B0323T Owner's Manual

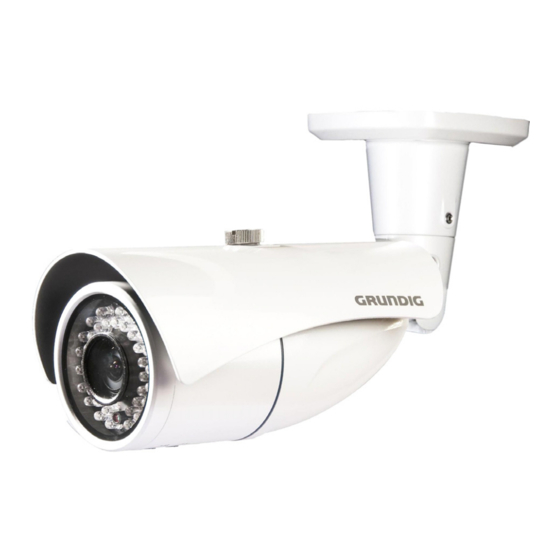

1/3" outdoor varifocal camera with ir led

Advertisement

Owner's Manual
Cameras & Domes
GCA-B0323T
GCA-B1323T
GCA-B0323T.7.2.25.11.2011
© ASP AG
1/3" Outdoor Varifocal Camera with IR LED
1/3" Outdoor Varifocal Camera with IR LED
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GCA-B0323T and is the answer not in the manual?

Questions and answers

Summary of Contents for Grundig GCA-B0323T

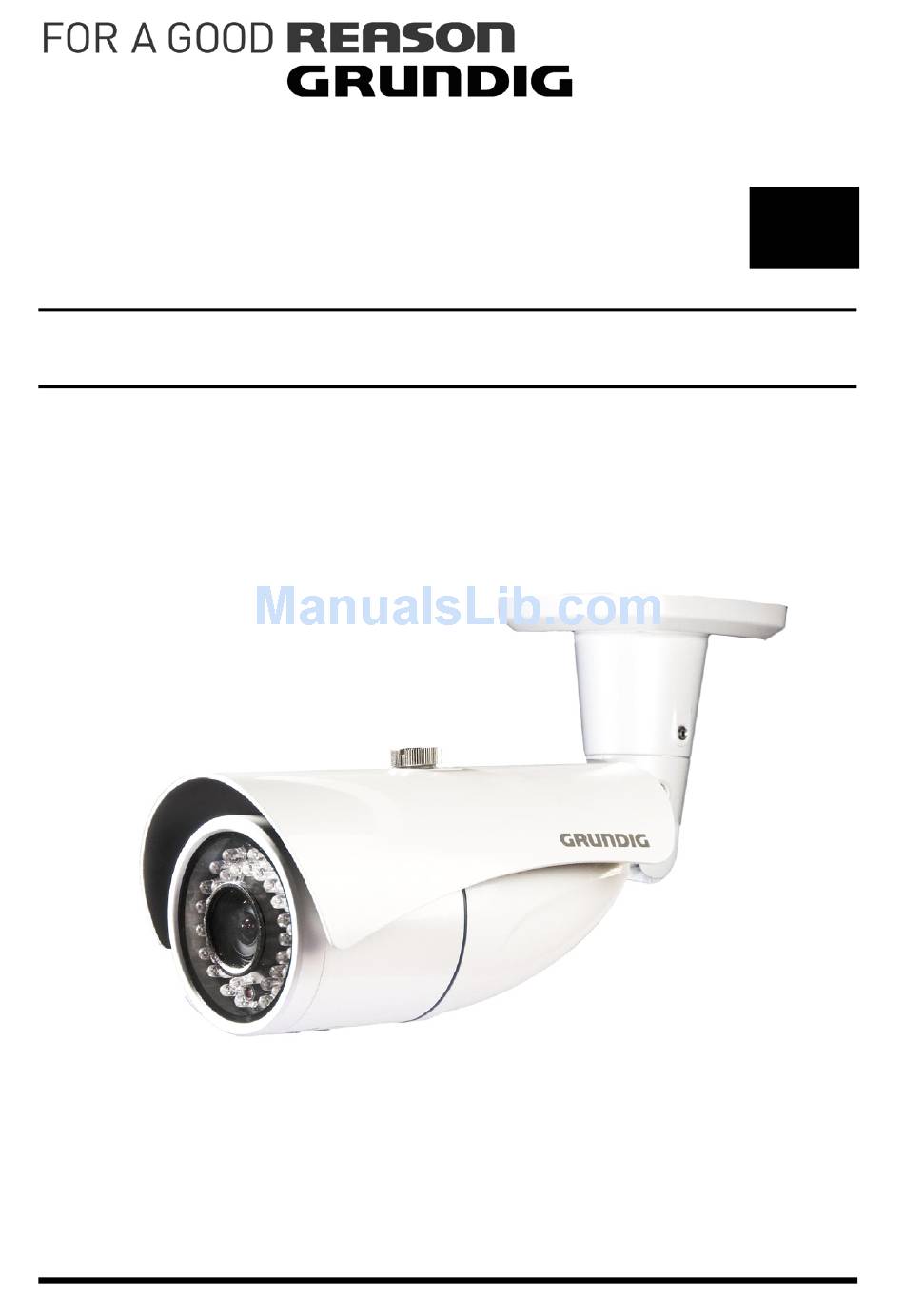

  • Page 1 Owner's Manual Cameras & Domes GCA-B0323T 1/3" Outdoor Varifocal Camera with IR LED GCA-B1323T 1/3" Outdoor Varifocal Camera with IR LED GCA-B0323T.7.2.25.11.2011 © ASP AG...
  • Page 3: Table Of Contents

    Content: 1. Important Safety Instructions 2. Package Contents 3. Installation 1. Part Names 2. Connections 3. Mounting the camera 4. Zoom & Focus Adjustment 4. OSD Menu 1. OSD Controls 2. Main menu 3. Camera Setup 4. Intelligence 5. Privacy Zone 6.
  • Page 4: Package Contents

    If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in any way. (GRUNDIG is not liable for problems caused by unauthorised modifications or attempted repair.) To prevent fire or electric shock, do not expose the inside of this device to rain or moisture.
  • Page 5: Part Names

    3.1. Part Names 1. Sun-Shield Bolt 2. Sun-Shield 3. Front Case 4. Zoom/Focus Screws 5. Rear Case 6. Service Monitor Port Cap 7. Bracket 8. Video/Power Cable English...
  • Page 6: Connections

    3.2. Connections - Power connection: Requires a DC 12V or AC 24V input depending on the camera model. - All camera models are supplied with a service monitor output on the camera module. A service monitor and control cable is included in the package. Note: To set up the OSD menu externally, a service monitor and control cable is required.
  • Page 7: Zoom & Focus Adjustment

    3.4. Zoom & Focus Adjustment - To widen the viewing angle turn the Zoom screw to "W" (Wide), to obtain a closer view turn it to "T" (Tele). - Turn the Focus screw to "N" (Near) or "oo" (Far) until the sharpest focus is made. 4.
  • Page 8: Main Menu

    4.2. Main menu 1. Press the SETUP key and hold it for a while to access the menu mode. 2. Select the desired feature by using the UP/DOWN keys (/\ \/) on the control. CAMERA SET: Here you can configure camera related functions and data.
  • Page 9 Note: - This is only available if the SENS-UP menu is set to AUTO. - If the DAY/NIGHT menu of CAMERA SET is set to AUTO, the MOTION menu will be deactivated. DNR [OFF, LOW, MID, HIGH, USER (1~16)] : You can configure the DNR (Digital Noise Reduction) related settings.
  • Page 10 DIS [OFF, ON] : Digital Image Stabilisation will set the anti-shake compensation. Note: - If you set DIS to ON, the compensation area will be enlarged as set in the digital zoom factor. - If you set the digital zoom factor to greater than the enlarged zoom factor for the compensation, the DIS function will be deactivated.
  • Page 11 PIP [OFF, ON] : Displays a sub image together with the main image on the same screen using the Picture In Picture Function. Note : - If more than one privacy zone is set and the PRIVACY SET is set to ON, the PIP function will be deactivated.
  • Page 12 4.3.3. ELC (Electronic Light Control) If you press the SETUP key when the ELC submenu is selected, the corresponding screen appears. You can set the ELC function to active or not. Similar to the ALC setting, you can specify the BLC area. 4.3.4.
  • Page 13 4.3.6. DAY/NIGHT (NIGHT MENU) If set to NIGHT, it will be fixed to BLACK and WHITE mode regardless of the ambient conditions. If you press the SETUP key with a NIGHT submenu selected, you will see a menu where you can set BURST to OFF/ON.
  • Page 14 4.3.8. WHITE BALANCE - DAY: In this mode, you can set the colour values of RED and BLUE. The screen will be displayed in colours according to your settings. Note: - You can set the values of R-GAIN and B- GAIN only in AWC mode.
  • Page 15: Intelligence

    4.3.9. DIGITAL ZOOM You can set the digital zoom factor and position. When the zoom factor and position are defined, the digital zoom function will operate. - RATIO: Define the zoom factor with the direction keys (< >). - LOCATION: If you press the SETUP key, you can change the position of the digital zoom with the direction keys (<...
  • Page 16: Privacy Zone

    4.4.1. MASK AREA Specify a detection exception area to mask. Select a mask number and specify the size and position. Note: - If BACKLIGHT is set to BLC, the MASK AREA function will be deactivated. 4.5. Privacy Zone The PRIVACY ZONE function will protect your privacy by screening the privacy area that you have specified during monitoring.
  • Page 17: Other Set

    You can specify a pixel that moves as you change the PIXEL LEVEL to set the position. How to set a point: You can set each position of the 4 points. - If you press the SETUP key in <POINT>, you will see the points available in the PRIVACY ZONE.
  • Page 18: Communication

    4.7. Communication Configure the settings regarding the UART communication. **This function is not available in this camera version. 4.8. System Info You can view the system information in this menu, including the type, protocol, address, baud rate, serial number, and camera version.
  • Page 19 Specifications GCA-B0323T Image Sensor 1/3" CCD (Sony Super HAD IT) Digital Signal Processor Motion Adaptive Digital Noise Reduction (DNR), On Screen Menue (OSD), Digital Image Stabilisation (DIS)control over coax and Privacy Zones Scanning System PAL, 50Hz, 625L (V), 2:1 Inter Line Transfer...
  • Page 20 Power Consumption 7.8 W Weight 1.14 kg Dimensions (wxhxd) Ø 80 x 178 mm Specifications GCA-B1323T Lens Focal Length 6 ~ 50 mm IR LED 48 pcs. Max. IR Distance 45/70 m (according to scene reflexion) Power Consumption 9.6 W Weight 1.14 kg Dimensions (wxhxd)
  • Page 21 EC Declaration of Conformity GCA-B0323T 1/3" Outdoor Varifocal Camera with IR LED GCA-B1323T 1/3" Outdoor Varifocal Camera with IR LED It is hereby certified that the products meet the standards in the following relevant provisions: EC EMC Directive 2004/108/EC Low Voltage Directive 2006/95/EC...
