Grundig GCI-K1577TH Owner's Manual

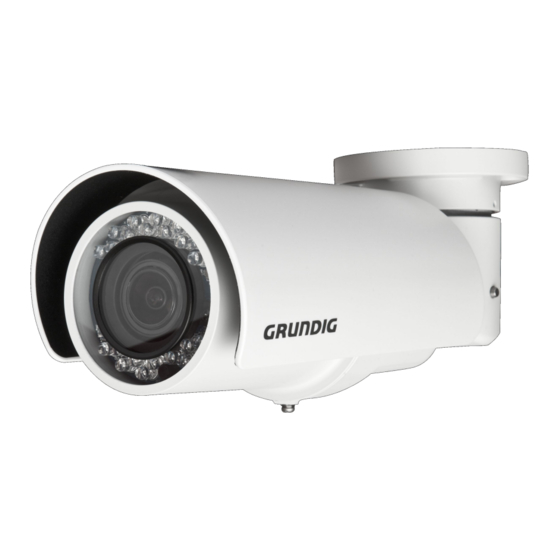

2 mp full hd integrated ip-camera 3~8mm icr ir 24 led wdr w/heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner's Manual
IP Cameras
GCI-K1577TH
GCI-K1577TH.152.1.14.11.2014
© ASP AG
2 MP Full HD Integrated IP-Camera 3~8mm ICR IR 24 LED
WDR w/Heater

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GCI-K1577TH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grundig GCI-K1577TH

Summary of Contents for Grundig GCI-K1577TH

  • Page 1 Owner's Manual IP Cameras GCI-K1577TH 2 MP Full HD Integrated IP-Camera 3~8mm ICR IR 24 LED WDR w/Heater GCI-K1577TH.152.1.14.11.2014 © ASP AG...

  • Page 3: Table Of Contents

    14. Internet Security Settings 2. Security 15. GRUNDIG Viewer Download Procedure 3. Network 16. Install UPnP Components 4. DDNS 17. Deleting the Existing GRUNDIG Viewer 5. Mail 6. FTP 7. HTTP 8. Events 9. Storage Management (on Camera) 10. Recording (on Camera) 11.

  • Page 4: Introduction

    1. Introduction Supported with both H.264 and MJPEG standard, this GRUNDIG camera series not only features a superior Full HD resolution for streaming at 25 fps, but also supplies a D1 720p streaming. With more computing power, these IP Cameras can provide more flexibility for users and system managers.

  • Page 5: Camera´s Connectors

    If you want to relocate the already installed product, be sure to turn the power off and then move or reinstall it. 4.1. Camera´s Connectors The IP Camera is equipped with an all-in-one cable for quick wiring. Definition for each connector will be given as follows.
  • Page 6 Step 2: Unscrew the screw on the Camera Housing and remove the Front Housing. SD Card Slot Factory Default Button Reboot Button English...

  • Page 7: System Requirements

    NOTE: Before installing the camera, please refer to the Desiccant User Guide in the package of the camera for instructions how to place the Desiccant in the Camera to prevent moisture condensing on the IP Camera’s Glass Cover. 4.2. System Requirements To perform the IP Camera via web browser, please ensure your PC is in good network connection, and meets the system requirements as described below.

  • Page 8: Accessing The Camera

    Finder.exe, which can be found on the supplied CD. GRUNDIG Finder Software Setup : Step 1: Double-click on the program GRUNDIG Finder.exe (see the desktop icon below). Its window will appear as shown below. Then click on the “Find Device” button.
  • Page 9 Step 2: The security alert window will pop up. Click “Unblock” to continue. Device Search : Step 3: Click “Find Device” again, afterwards all IP devices found will be listed on the page, as shown in the picture below. The IP Camera’s default IP address is: 192.168.1.1. English...
  • Page 10 Step 4: Double-click or right-click and select “Browse” to access the camera directly via the web browser. Step 5: Then the dialogue box for entering the default user name and password (as shown below) will appear for login to the IP Dome Camera. The default login ID and password for the Administrator are: Login ID: admin Password: 1234...
  • Page 11 Step 1: In the finding device list, click on the IP Camera of which you would like to change the network property. Right-click on the selected item, and select “Network Setup”. Meanwhile, record the IP Camera’s MAC address for future identification. Step 2: The “Network Setup”...
  • Page 12 15. GRUNDIG Viewer Download Procedure. NOTE: If the Live Video Pane on the Home Page cannot be shown to the users who have installed the GRUNDIG Viewer on the PC previously, please refer to the procedure in chapter 17. Deleting the Existing GRUNDIG Viewer.

  • Page 13: Video Resolution Setup

    Image and Focus Adjustment : The image appears on the Home page when successfully accessing to the IP Camera. Adjust zoom and focus as necessary to produce a clear image. 6. Video Resolution Setup Users can set up the Video Resolution on the Video Format page of the user-friendly browser-based configuration interface.

  • Page 14: Home Page

    8. Home Page In the Home page, there are several function buttons that are specified below. NOTE: Please note that the function buttons can vary depending on the camera model. Display Mode (Screen Size Adjustment) : The display size of the image can be adjusted to x1/2 and full screen. Digital Zoom Control : In full screen mode, users can implement digital PTZ by rotating the mouse wheel (for zoom in/out).
  • Page 15 Manual Focus Adjustment : - Near/Far: Hold the <Near/Far> button to implement continuous focus adjustment. - Near Steps/Far Steps: Clicking on the <Near/Far Steps> buttons will lead to the focus being altered towards the Near/Far side in an user-defined range, which can be selected from the drop-down menu. - Reset: Clicking on the <Reset>...

  • Page 16: System Related Settings

    9. System Related Settings The picture below shows all categories under the “System” tab. Each category in the left column will be explained in the following sections. NOTE: The “System” configuration page is only accessible by the Administrator. 9.1. Host Name & System Time Setting Click on the first category <System>...

  • Page 17: Security

    Host Name : The name is for camera identification (max. 30 characters). If the alarm function (see section 9.8.1. 'Application (Alarm Settings)') is enabled and is set to send an alarm message by Mail/FTP, the host name entered here will be displayed in the alarm message.
  • Page 18 9.2.1. User When you click on the <User> tab under the category <Security>, the <User> page will be shown as in the picture below. Admin Password : Change the administrator’s password by putting in the new password in the “Admin password” and “Confirm password”...
  • Page 19 Manage User : To delete a user, pull down the user list, and select the user name you wish to delete. Then click <Delete> to remove it. To edit a user, pull down the user list and select a user name. Click <Edit> to edit the user’s password and privileges.
  • Page 20 9.2.2. HTTPS <HTTPS> allows secure connections between the IP Camera and the web browser using the <Secure Socket Layer (SSL)> or the <Transport Layer Security (TLS)>, which prevent others from snooping on your camera settings or Username/Password. It is required to install a self-signed certificate or a CA-signed certificate for implemention of <HTTPS>.
  • Page 21 Create self-signed certificate : Before a CA-issued certificate is obtained, users can create and install a self-signed certificate first. Click on the <Create> button under “Create self-signed certificate” and provide the requested information to install a self-signed certificate for the IP Camera. Please refer to the last part of this section: "Provide the Certificate Information"...
  • Page 22 Install signed certificate : Click on the “Create Certificate Request” button to create and submit a certificate request in order to obtain a signed certificate from the CA (Certificate Authority). Provide the requested information in the Create Dialog. Please refer to the section "Provide the Certificate Information"...
  • Page 23 When the signed certificate is returned, install it by uploading the signed certificate. Provide the Certificate Information : To create a Self-signed HTTPS Certificate or a Certificate Request to CA, please enter the information as requested: English...
  • Page 24 - Country: Enter a 2-letter combination code to indicate the country the certificate will be used in. For instance, type in “GB” to indicate Great Britain. - State or province: Enter the local administrative region. - Locality: Enter other geographical information. - Organisation: Enter the name of the organisation to which the entity identified in “Common Name”...
  • Page 25 9.2.3. IP Filter When using the IP filter, access to the IP Camera can be restricted by denying/allowing specific IP addresses. General : - Enable IP Filter: Check the box to enable the IP Filter function. Once enabled, access to the IP Camera will be allowed/denied for the listed IP addresses (IPv4).
  • Page 26 Example: Filtering a group of consecutive IP addresses The steps below show what will be filtered when 192.168.2.81/30 is entered. Step 1: Convert 192.168.2.81 to binary numbers. The binary numbers for the decimal numer 192.168.2.81 are: 11000000.10101000.00000010.01010001. (For conversion, you can use the calculator of Windows. For Windows XP and Windows Vista, click <View> on the calculator and click <Scientific>.
  • Page 27 9.2.4. IEEE 802.1X The IP Camera can access a network protected by 802.1X/EAPOL (Extensible Authentication Protocol over LAN). To do this, users need to contact the network administrator to receive certificates, user Ids and passwords. CA Certificate : The CA certificate is created by the Certification Authority for the purpose of validating itself. Upload the certificate for checking the server’s identity.

  • Page 28: Network

    9.3. Network When you click on the category <Network>, there will be a drop-down menu with several tabs including <Basic>, <QoS>, <SNMP>, and <UPnP>. 9.3.1. Basic Users can choose to connect to the IP Camera through a fixed or dynamic (DHCP) IP address. The IP Camera also provides PPPoE (Point-to-Point Protocol over Ethernet) support for users who connect to the network via PPPoE.
  • Page 29 IP address in the URL bar will be changed, and users have to login again. When using a static IP address to login to the IP Camera, users can access it either through the “GRUNDIG Finder” software (see 5. Accessing the Camera) or input the IP address in the URL bar and click on “Enter”.
  • Page 30 - Default gateway: This is the gateway used to forward frames to destinations in different subnets. An invalid gateway setting will fail in the transmission to destinations in different subnets. - Primary DNS: Primary DNS is the primary domain name server that translates hostnames into IP addresses. - Secondary DNS: Secondary DNS is a secondary domain name server that backs up the primary DNS.
  • Page 31 9.3.2. QoS QoS allows providing differentiated service levels for different types of traffic packets which guarantees delivery of priority services especially when network congestion occurs. Adapting the Differentiated Services (DiffServ) model, traffic flows are classified and marked with DSCP (DiffServ Codepoint) values, and thus receive the corresponding forwarding treatment from DiffServ capable routers.
  • Page 32 9.3.3. SNMP With Simple Network Management Protocol (SNMP) support, the IP Camera can be monitored and managed remotely by the network management system. SNMP v1/v2 : - Enable SNMP: Select the version of SNMP to use by checking the corresponding box. - Read Community: Specify the community name which has read-only access to all supported SNMP objects.
  • Page 33 Traps for SNMP v1/v2/v3 : Traps are used by the IP Camera to send messages to a management system about important events or status changes. - Enable Traps: Check the box to activate trap reporting. - Trap address: Enter the IP address of the management server. Trap option : - Warm start: A Warm start SNMP trap signifies that the SNMP device, i.e.
  • Page 34 UPnP Setting : - Enable UPnP: When UPnP is enabled, whenever the IP Camera is presented to LAN, the icon of the connected IP Cameras will appear in My Network Places to allow for direct access as shown below. NOTE: To enable this function, please make sure the UPnP component is installed on your computer. Please refer to chapter 17.

  • Page 35: Ddns

    9.4. DDNS The Dynamic Domain Name System (DDNS) allows a host name to be constantly synchronised with a dynamic IP address. In other words, it allows those using a dynamic IP address to be associated to a static domain name so that others can connect to it through this name.

  • Page 36: Mail

    9.5. Mail The Administrator can can set up the sending of an e-mail via Simple Mail Transfer Protocol (SMTP) when an event is triggered. SMTP is a protocol for sending e-mail messages from server to server. SMTP is a relatively simple, text-based protocol, where one or more recipients of a message are specified and to whom the message text is transferred.

  • Page 37: Ftp

    9.6. FTP The Administrator can set the sending of alarm messages to a specific File Transfer Protocol (FTP) site when an event is detected. Users can assign an alarm message to up to two FTP sites. The FTP setting page is shown below.

  • Page 38: Http

    9.7. HTTP A HTTP Notification server can listen for notification messages from IP Cameras by triggered events. The HTTP setting page is shown below. Enter the HTTP details, which include the server name (for instance, http://192.168.1.1/admin.php), user name, and password into the fields. <Alarm> triggered and <Motion Detection>...

  • Page 39: Events

    9.8. Events 9.8.1. Application (Alarm Settings) The IP Camera is equipped with one alarm input and one relay output for cooperation with the alarm system to catch event images. Please refer to the alarm pin definition below to connect alarm devices to the IP Camera if needed.
  • Page 40 - Send Message by FTP: The Administrator can choose to send an alarm message by FTP when an alarm is detected. - Send Message by E-Mail: The Administrator can choose to send an alarm message by E-Mail when an alarm is triggered. - Upload Image by FTP: After selecting this item, the Administrator can assign a FTP site and configure various parameters as shown in the figure below.
  • Page 41 - Upload Image by E-Mail: After selecting this item, the Administrator can assign an e-mail address and configure various parameters as shown in the figure below. When the alarm is triggered, event images will be sent to the appointed e-mail address.
  • Page 42 - Send HTTP notification: Check this item, select the destination HTTP address, and specify the parameters for event notifications when an <Alarm> is triggered. As soon as an alarm is triggered, the notification will be sent to the specified HTTP server. For instance, if the custom parameter is set as ”action=1&group=2”, and the HTTP server’s name is ”http://192.168.1.200/admin.php”, the notification will be sent to the HTTP server as ”http://192.168.1.200/admin.php? Action=1&group=2”...
  • Page 43 - Record Stream to SD Card: After selecting this item, the alarm-triggered recording will be saved on your Micro SD card. The pre-trigger buffer recording function allows users to check what happened to trigger the alarm. The pre- trigger buffer time range is from 1 to 3 seconds. Select <Upload for __ sec>...
  • Page 44 Save : After completing all the settings mentioned above, please click on the <Save> button to save all the settings in this page. 9.8.2. Motion Detection The Motion Detection function allows detecting suspicious motion and triggers alarms when motion volume in the detected area reaches/exceeds the determined sensitivity threshold value.
  • Page 45 When motion is detected, the signals will be displayed in the Motion window as shown below: The detailed settings of Motion Detection are described as follows: Motion Detection : In each set of the Motion Detection Setting, the default setting for the Motion Detection function is <Off>. Enable this function by selecting <On>.
  • Page 46 - Record Stream to SD Card: When you select this item, the Motion Detection recording will be stored on your Micro SD/SDHC card when motion is detected. The pre-trigger buffer recording function allows users to check what happened to trigger the alarm. The pre- trigger buffer time range is from 1 to 3 seconds.
  • Page 47 - Upload Image by E-Mail: After selecting this item, the Administrator can assign an e-mail address and configure various parameters as shown in the picture below. When a motion is detected, event images will be sent to the appointed e-mail address. The <Pre-trigger buffer>...
  • Page 48 9.8.3. Network failure detection The Network Failure Detection function allows the IP Camera to ping another IP device (e.g. NVR, VSS, Video Server, etc.) within the network periodically and generates some actions in case of network failure occurance, for instance, when a Video Server is somehow disconnected. Being capable of implementing local recording (through Micro SD card) or the remote recording (via NAS) when a network failure happens, the IP Camera can be a backup recording device for the surveillance system.
  • Page 49 - Record Stream to SD Card: When you check this item, the alarm-triggered recording will be stored on your Micro SD/SDHC card when network failure is detected. The pre-trigger buffer recording function allows users to check what happened to trigger the alarm. The pre- trigger buffer time range is from 1 to 3 seconds.
  • Page 50 Detection of camera tampering is achieved by measuring the differences between the older frames of video (which are stored in buffers) and more recent frames. Tampering Alarm : You will be able to turn the Tampering Alarm function on/off in the Tampering Alarm setting section. The default setting is: Off.
  • Page 51 The <Pre-trigger buffer> recording function allows users to check what happened to trigger the alarm. The pre- trigger buffer time range is from 1 to 20 frames. On the other hand, the <Post-trigger buffer> is for uploading a certain amount of images after the alarm input is triggered.
  • Page 52 - Send HTTP notification: Check this item, select the destination HTTP address, and specify the parameters for HTTP notifications. When the Tampering Alarm is triggered, the HTTP notifications can be sent to the specified HTTP server. For instance, if the custom parameter is set as ”action=1&group=2”, and the HTTP server’s name is ”http://192.168.1.200/admin.php”, the notification will be sent to the HTTP server as ”http://192.168.1.200/admin.php? Action=1&group=2”...
  • Page 53 Triggered Action (Multi-option) : The administrator can specify alarm actions that will take place at alarm occurrence. All options are listed as follows. Triggered Action (Multi-option) : The administrator can specify alarm actions that will take place at alarm occurrence. All options are listed as follows.
  • Page 54 The <Pre-trigger buffer> recording function allows users to check what happened to trigger the alarm. The pre- trigger buffer time range is from 1 to 20 frames. On the other hand, the <Post-trigger buffer> is for uploading a certain amount of images after the alarm input is triggered.
  • Page 55 9.8.6. Manual trigger In the Manual Trigger setting, the current image(s) or video(s) can be upload to the appointed destination, such as an FTP site or an E-mail address. The administrator can specify the triggered actions that will take place when the users switch the Manual Trigger button to <On>.
  • Page 56 - Upload Image by FTP: After selecting this item, the Administrator can assign a FTP site and configure various parameters as shown in the figure below. When the alarm is triggered, event images will be uploaded to the appointed FTP site. The <Pre-trigger buffer>...
  • Page 57 The <Pre-trigger buffer> recording function allows users to check what happened to trigger the alarm. The pre- trigger buffer time range is from 1 to 20 frames. On the other hand, the <Post-trigger buffer> is for uploading a certain amount of images after the alarm input is triggered.
  • Page 58 - Add date/time suffix: File name: imageYYMMDD_HHNNSS_XX.jpg Y: Year, M: Month, D: Day H: Hour, N: Minute, S: Second X: Sequence Number - Add sequence number suffix (no maximum value): File name: imageXXXXXXX.jpg X: Sequence Number - Add sequence number suffix up to _ and then start over: File Name: imageXX.jpg X: Sequence Number The file name suffix will end at the number being set.
  • Page 59 - Sensitivity level [0-64]: Here you can set the sensitivity level of the face detection. The bigger the value, the more sensitive the detection - Minimum size [120-960]: Please choose the minimum size of the face to be detected here. - Maximum size [120-960]: Please choose the maximum size of the face to be detected here.
  • Page 60 - Send Message by E-Mail: The Administrator can choose to send an alarm message by E-Mail when an alarm is triggered. - Upload Image by FTP: After selecting this item, the Administrator can assign a FTP site and configure various parameters as shown in the figure below.
  • Page 61 The <Pre-trigger buffer> recording function allows users to check what happened to trigger the alarm. The pre- trigger buffer time range is from 1 to 20 frames. On the other hand, the <Post-trigger buffer> is for uploading a certain amount of images after the alarm input is triggered.

  • Page 62: Storage Management (On Camera)

    9.9. Storage Management (on Camera) Users can store local recordings on a Micro SD/SDHC card of up to 32 GB. This page shows the capacity information of the Micro SD card and a recording list with all the recording files saved on the memory card. Users can also format the SD card and implement automatic recording cleanup through the setting page.
  • Page 63 Recording List : Each video file on the Micro SD/SDHC card will be listed in the Recording list as shown below. The maximum file size is 60 MB (60 MB per file). If the recording modus is set to "Always" and at the same time the event recording (when a motion detection or an alarm takes place) is also turned on, in this case, when an event occurs, the event will be recorded first, afterwards the camera will return to normal recording mode.

  • Page 64: Recording (On Camera)

    9.10. Recording (on Camera) In the Recording setting page, the Micro SD Card recording schedule supports up to ten sets of time frames. Users can specify the recording schedule to fit their present surveillance requirements. Activating the Recording Schedule : Two types of schedule mode are offered: "Always"...

  • Page 65: Schedule

    9.11. Schedule This function allows the users to setup schedules for features including: <Alarm Switch>, <Motion Detection> and <Network Failure Detection>. The function supports up to 10 sets of time frames in the time frame list. Setting a schedule: To set a schedule, please select a time frame from the time frame list first. Then check the boxes at the bottom of the time frame to choose the specific weekdays.

  • Page 66: File Location (On Pc)

    9.12. File Location (on PC) Users can specify a storage location for the snapshots and the live video recording. The default setting is: C:\. Once the setting is confirmed, click on “Save,” and all the snapshots and recordings will be saved in the designated location.

  • Page 67: View Information

    9.13. View Information 9.13.1. Log file Click on the link to view the system log file. The content of this file provides useful information about configuration and connections after system boot-up. 9.13.2. Parameters Click on this item to view the entire system’s parameter setting. English...

  • Page 68: Factory Default

    9.14. Factory Default The factory default setting page is shown below. Follow the instructions to reset the IP Camera to factory default setting if needed. Full Restore : Click on the “Full Restore” button to recall the factory default settings. After 30 seconds the system will restart. NOTE: The IP address will also be restored to default (192.168.1.1).

  • Page 69: Software Version

    9.15. Software Version The current software version is displayed in the software version page, which is shown in the picture below. 9.16. Software Upgrade Software upgrade can be carried out on the “Software Upgrade” page, as shown below. NOTE: Make sure the upgrade software file is available before carrying out the software upgrade. English...

  • Page 70: Maintenance

    Step 5: Go to “Start” on your Windows desktop, activate “Control Panel”, and then double-click on ”Add or Remove Programs“. In the “Currently installed programs” list, select “GRUNDIG Viewer” and click on the button “Remove” to uninstall the existing GRUNDIG Viewer.
  • Page 71 Export: Users can save the system settings by exporting the configuration file (.bin) to a specified location for future use. When you click on the “Export” button, the File Download window will pop up as shown below. Click “Save” and specify a desired location for saving the configuration file. Upload: To copy an existing configuration file to the IP Camera, please first click on “Browse”...

  • Page 72: Streaming Settings

    10. Streaming Settings 10.1. Video Format Video Resolution : Under the Video Resolution section, the available video resolution formats include MJPEG and H.264. Click on “Save” to confirm the setting. Text Overlay Settings : Users can select these items to display data (date/time/text/subtitle) on the live video pane. The maximum length of the string for the text is 15 alphanumeric characters, and each subtitle can only be 16 characters.
  • Page 73 To rotate the image, users can select “Flip video”, for instance. Then the displayed image will be reversed as shown below. The following are descriptions of different video rotation types. - Flip video: If you select <Flip video>, the image will be rotated horizontally. - Mirror video: If you select <Mirror video>, the image will be rotated vertically.

  • Page 74: Video Compression

    10.2. Video Compression Users can specify the values for MJPEG/H.264 compression mode in the video compression page (see the picture below), depending on the application. MJPEG compression setting (MJPEG Q (Quality) factor): A higher value implies higher bit rates and a higher visual quality. The default setting is 35; the setting range is from 1 to 70.

  • Page 75: Video Roi

    10.3. Video ROI The "Video ROI" setting can be found under this path: "Streaming" > "Video ROI". ROI stands for Region of Interest. This function allows the users to select a specific monitoring region for H.264-2, H.264-3, H.264-4 and MJPEG streams, instead of showing the full image. NOTE: This function is only available when triple streams or above is selected under <Video Resolution>...

  • Page 76: Video Ocx Protocol

    - Enable the MJPEG ROI Setting: When you check the box, the MJPEG ROI Window will be displayed. To change the size of the MJPEG ROI Window, move the mouse cursor to the edge of the frame and draw it outward / inward. Moving the mouse to the center of the frame can shift the frame to the intended location.

  • Page 77: Video Frame Rate

    10.5. Video Frame Rate The video frame rate is for setting the frames per second (fps) if needed. MJPEG/ H.264-1/ H.264-2 Frame Rate: The default setting of the MJPEG Frame Rate is 25 fps; the setting range is from 1 to 25 (PAL). Click on <Save>...

  • Page 78: Video Mask

    10.6. Video Mask There are five video masks which can be set by the users. Active Mask Function : - How to add a mask: When you check a Video Mask checkbox ("Enable to display Mask…"), a red frame will come out in the Live Video pane at the right side.

  • Page 79: Audio (Audio And Bit Rate Settings)

    10.7. Audio (Audio and Bit Rate Settings) The audio setting page is shown below. In the Audio page, the Administrator can select one transmission mode and the audio bit rate. Transmission Mode : - Full-duplex (Talk and Listen simultaneously): In the Full-duplex mode, the local and remote sites can communicate with each other simultaneously, i.e. both sites can speak and be heard at the same time.

  • Page 80: Camera Settings

    Recording to Storage : Select <Enable> from the drop-down menu to enable the audio recording together with the videos onto an SD card. NOTE: If the chosen bit rate is not compatible with the player, there will be no audio and noise will be heard during playback.

  • Page 81: White Balance Setting

    - WDR Multiple Shutter Mode: This mode provides the Wide Dynamic Range (WDR) function that solves high contrast or light changing issues. There are two different options available (Normal and WDR First). The default setting is <WDR First>. Please refer to the following descriptions to choose a suitable option from the drop down menu.

  • Page 82: Picture Adjustment

    ATW Mode (Auto Tracking White Balance) : With the Auto Tracking White Balance function, the white balance in a scene will be automatically adjusted while temperature colour is changing. The ATW Mode is suitable for environments with a light source having a colour temperature in the range roughly from 2450 ~ 10500K.

  • Page 83: Misc

    Day/Night Function : This item is to define the action of the IR cut filter. Refer to the descriptions of each option below to select a suitable mode. Click on <√> to confirm the new setting. - Auto Mode: With this mode, the camera will decide according to the environment whether to remove the IR cut filter. - Off (Night Mode): Use this mode when the environment light level is low.

  • Page 84: Profile

    11.5.2. 3DNR The IP Camera provides a 3DNR function for delivering an optimised image quality especially in extra low-light conditions. Different levels of options (Low / Mid / High) for 3DNR are supported. A higher level of 3DNR generates relatively enhanced noise reduction.
  • Page 85 Schedule Setup : First, you need to set up a schedule and select a time frame from the time frame list. Then please check the weekday boxes below to choose the specific weekdays. At last, select a time mode, Day mode, Night Mode or Time mode.

  • Page 86: Tv System Setup

    Step 5: Select a profile from the Number drop-down list. Step 6: Check the box beside <By schedule>. Select and check the schedule(s) from the schedule drop-down list (From Schedule 1 to Schedule 10). You can choose several schedules and assign them to one profile. Step 7: Click on <√...

  • Page 87: Logout

    WDR autoiris: Select a video format with “WDR autoiris” to activate both the WDR and the Auto Iris functions. 12. Logout When you press the “Logout” tab at the top of the page, the login window will pop up. This permits login with another user name.

  • Page 88: Cms Software Introduction

    The GRUNDIG CMS Software gives the user access to monitor multiple IP Cameras and Video Servers, and allows the user to monitor simultaneously 16 sites per group (up to 10 groups) within several clicks.
  • Page 89 Step 3: Click on the <Security> tab, and select <Internet>. Step 4: Down the page, click on “Default level…” and then click “OK” to confirm the setting. Close the browser window, and open a new one later when accessing the IP Camera. English...
  • Page 90 ActiveX Controls and Plug-in Settings : Step 1~3: Please refer to the previous section above. Step 4: Down the page, click on “Custom level…” (see the picture below) to change ActiveX controls and plug-in settings. The Security Settings screen is displayed as shown below: English...

  • Page 91: Grundig Viewer Download Procedure

    Step 8: Close the browser window, and open a new one later for accessing the IP Camera. 15. GRUNDIG Viewer Download Procedure The procedure of the GRUNDIG Viewer software download is specified as follows: Step 1: In the GRUNDIG Viewer installation page, click “Next” to start the installation. English...
  • Page 92 Step 2: Setup starts. Please wait for a while until the loading bar runs out. Step 3: Click on “Finish” to close the GRUNDIG Viewer installation page. English...

  • Page 93: Install Upnp Components

    Then, the IP Camera’s Home page will be displayed as follows: NOTE: Please note that the function buttons may vary depending on the camera model. 16. Install UPnP Components Please follow the instructions below to install UPnP components. (The procedure is for Windows XP, for other systems please refer to the corresponding manuals.) Step 1: Go to “Start”, click on “Control Panel”, and then double-click on “Add or Remove Programs”.
  • Page 94 Step 2: Click on “Add/Remove Windows Components” in the Add or Remove Programs page. Step 3: Select “Networking Services” from the Components list in the Windows Components Wizard window, and then click on “Details”. English...
  • Page 95 Step 4: Select “UPnP User Interface” in the Networking Services’ subcomponents list and then click on “OK”. Step 5: Click on “Next” in the Windows Components Wizard page. Step 6: Click on “Finish” to complete the installation. English...

  • Page 96: Deleting The Existing Grundig Viewer

    17. Deleting the Existing GRUNDIG Viewer Users who have installed the GRUNDIG Viewer for 1.3 Megapixel Series IP Cameras on the PC need to delete the existing GRUNDIG Viewer first from the PC before accessing this IP Camera. Deleting the GRUNDIG Viewer : Click on “Control Panel”, and then click on “Add or Remove Programs”.
  • Page 97 STEP 2: Click on “Delete” in the first pop-up window. Then tap “Delete Files” in the “Temporary Internet files” section in the next pop-up window. English...
  • Page 98 IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, DHCP, PPPoE, UPnP, SMTP, ICMP, IGMP, SNMP, IEEE802.1x, QoS, ONVIF, FTP, ARP Audio Compression G.726, G.711 Audio Communication Bi-directional Firmware Upgrade by Web Browser or Grundig finder from ver.1.17 Configuration Over Remote PC English...
  • Page 99 Multi Language Webpage: English, German, French, Italian, Russian, Turkish Audio Input/Output Line In/Line Out (two way Audio) Alarm Inputs 1 (5V, 10KΩ) Alarm Outputs 1 (max.300VDC/AC, 39W) Micro SDHC memory: Supports up to 32GB Recording Types: on Micro SD/SDHC CARD: Single Image Recording (JPEG), Video(AVI, LCK) on NAS: Video (AVI) Web Browser...
  • Page 100 EC Declaration of Conformity GCI-K1577TH 2 MP Full HD Integrated IP-Camera 3~8mm ICR IR 24 LED WDR w/Heater It is hereby certified that the products meet the standards in the following relevant provisions: EC EMC Directive 2004/108/EC Applied harmonised standards and technical specifications:...
