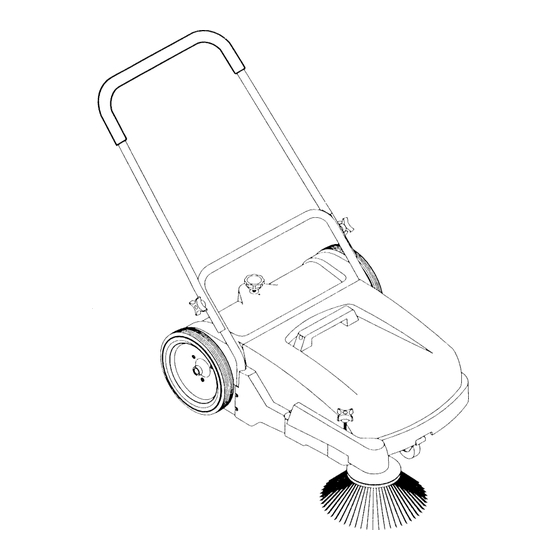

- Page 1 Kleen Sweep ® Model: C89000-00 OPERATION CARE SERVICE PARTS Revised 8/02...
-
Page 2: Assembly Instructions
ASSEMBLY INSTRUCTIONS Unpacking Instructions This unit is packed with a sidearm assembly and sidebroom inside the hopper. Refer to page 2 of the Parts Manual for assembly and adjustment. Operation This unit works with two brushes the disc type sidebroom brings the dirt and waste from the side into the path of the main broom. - Page 3 ASSEMBLY INSTRUCTIONS 1. Mount the side broom (102) to the brush plate on the side arm assembly using (3) hex head bolts (62) with flat washers (63). 2. Position the v-belt from the side arm assembly around the pulley attached to the backside of the right wheel.
- Page 7 HOPPER ASSY P.N. 850048PB Item Part No. Qty. Description 850001 Collection Hopper 460000 Handle 711204 BLT-HH 1/4-20 x 3/4 STPL 850025 Dust Ramp 850060 Dust Flap Brace 850016MCH Hopper Flap 711160 SCR-HI/LO No. 10 x .75 PL 715518 Decal - Kleen Sweep 27 711377 Nut-Center Lock 1/4-20 711519...
- Page 8 SIDE ARM ASSY P.N. 850046 Item Part No. Qty Description Item Part No. Qty Description 850032 Molded Side Arm 850042 Bearing 6000 Seal 850050 Threaded Rod 850008 Bearing Sleeve 350139 Knob 5/16 Thread 711379 Nut-Flanged Wizz 5/16-18 711717 Retaining E-Ring 850024 Front Pulley 850015...
- Page 9 HOW TO RE-INSTALL PINIONS If for some reason you have found it necessary to remove the pinions, you should carefully follow these instructions. All parts must be clean before assembling. To assist you, we suggest using a piece of wood doweling Pinion with part number 74-79 LB is to be replaced on the or plastic material 5/8"...
-
Page 10: Limited Warranty
Minuteman International, Inc. warrants to the original purchaser/user that this product is free from defects in workmanship and materials under normal use and service for a period of one year from date of purchase. In addition, Minuteman International, Inc. will, at its option, honor labor warranty claims for the first 12 months from date of sale, provided such claims are submitted through and approved by factory authorized repair stations.
