Summary of Contents for Genius EasyPen M506
-

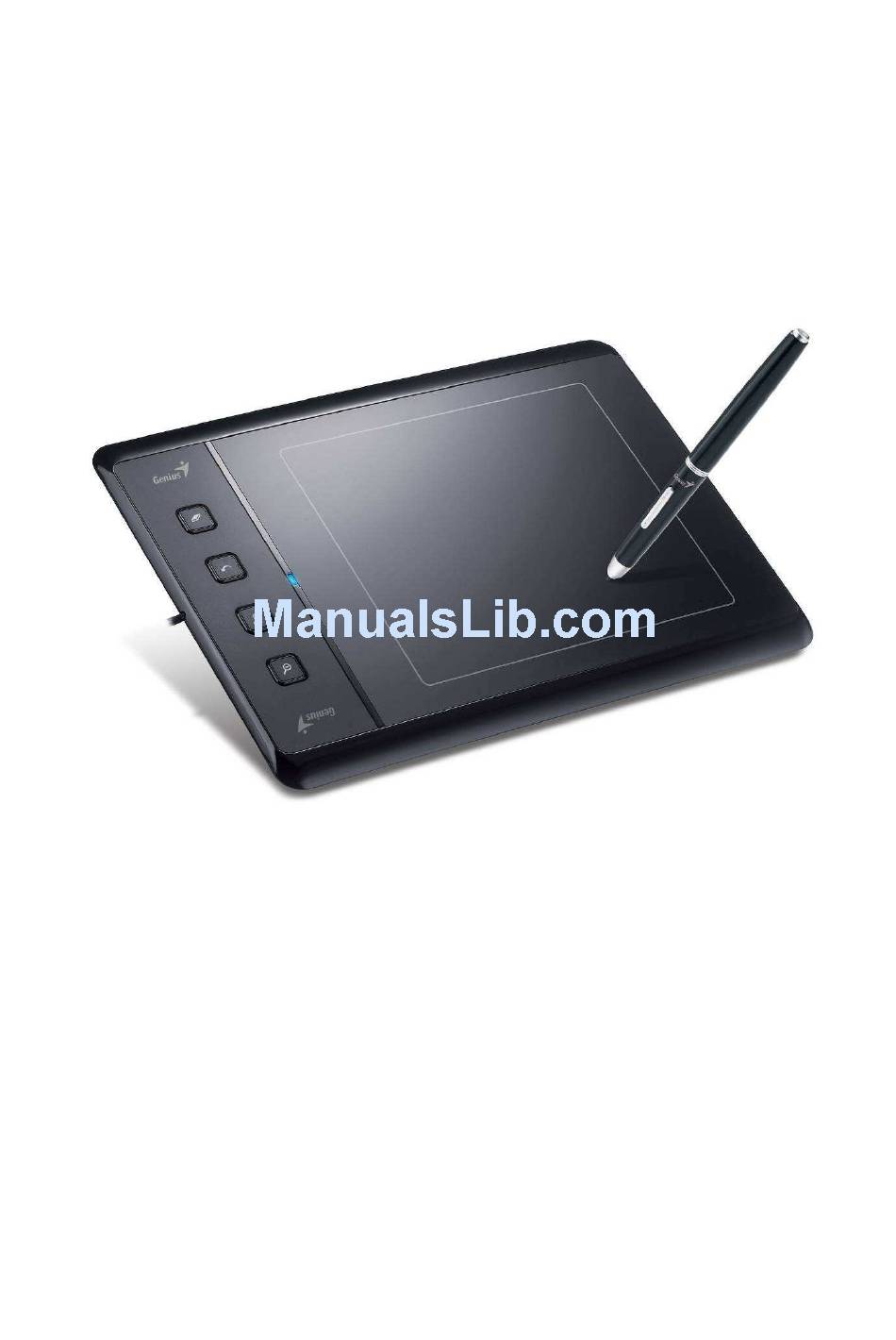

Page 1: User Manual
EasyPen M506 User Manual For Windows 7/Vista/XP... -
Page 2: General Information
ENGLISH *The driver may already be updated to a newer version before/after packaging. If your installation screen does not match the contents of this manual, you may need to download the driver, just refer to your software screen after installation. * To ensure your tablet operates with maximum and smooth performance, plug the USB connector to your PC/Notebook USB port instead of a USB Hub or other exterior USB port device. - Page 3 ENGLISH For Microsoft Windows 7, Vista, and XP: 1. Insert the CD into the CD-ROM drive, and wait for the main installation screen to appear. 2. The main installation screen should appear automatically, or you can manually start the installation by opening 【 【 【 【 My Computer 】 】 】 】 ► 【 【 【 【 CD/DVD Rom 】 】 】 】 ► then click on the 【...
-
Page 4: Pen Tablet Configuration
ENGLISH 7.2 Storing the digital pen To store the pen, make sure the pen tip does not touch anything, and especially do not let the pen stand in a cup or penholder with the tip down. Place the pen in a penholder, or turn the pen tip pointing upward or horizontally with the pen tip free of any pressure by other objects. - Page 5 ENGLISH 2. Cordless Pen 2.1 Button Name: You may re-program the functions of the pen tip and the two-barrel buttons by selecting the button name from the drop down menu and assign a command of a traditional three-button mouse to it. The programmable group includes: Click Group: Click, Scroll, Lock, etc.
- Page 6 ENGLISH 1. Pen Mode (Absolute mode): Use the pen to draw, point, click and sign as you wish. 2.3 Pen Sensitivity Adjustment: This tablet pen offers 1024 pressure levels sensitivity for all kinds of shapes and thickness. Move the slider in the sensitivity bar to adjust the levels. There is a test area to draw a line by pressing the pen tip on the tablet pad.
- Page 7 ENGLISH 3. Tablet 3.1 Re-define Express keys: All the available express keys are shown on the left side of the menu. Click on any of them to find out the icon and location. You may re-program any express key from the drop down menu below the tablet picture.
- Page 8 ENGLISH 3.3 Tablet working area: There are two modes available to define the working area, click “Apply” to activate it. 1. AlI (Full Area): Select the largest possible working area depends on the tablet size. 2. Part (Programmable Area): Allows you to define the dimensions for top, bottom, left and right. Define the size by inputting any numbers in the blank bars.
- Page 9 ENGLISH B. Switch the screen ratio by selecting 4:3 (Standard) or 16:9 (Wide). To avoid inadvertently touching of software shortcuts, you may disable the up/down/right/left four directions software keys by clicking the area modulate. After applying, the software shortcut functions will be closed, allows you to use maximum working area of your tablet.
-
Page 10: Storing The Digital Pen And Changing The Pen Battery & Tip
ENGLISH 1. Pen Mode (Absolute mode): Use the mouse to point, click as you wish. III. Storing the Digital pen and changing the Pen Battery & Tip 1. Storing the digital pen properly: To store the digital pen, make sure that the tip does not touch anything, especially, do not let the pen stand in a cup or penholder with the tip down. -
Page 11: Question And Answer
ENGLISH IV. Question & Answer Question 1: How can I get the latest update or uninstall the software？ ？ ？ ？ Answer: You can download the new driver from our website. 1. Uninstall your old driver: Click [Start] ► [All Programs] ► [io Tablet] ► [Uninstall]. 2.
