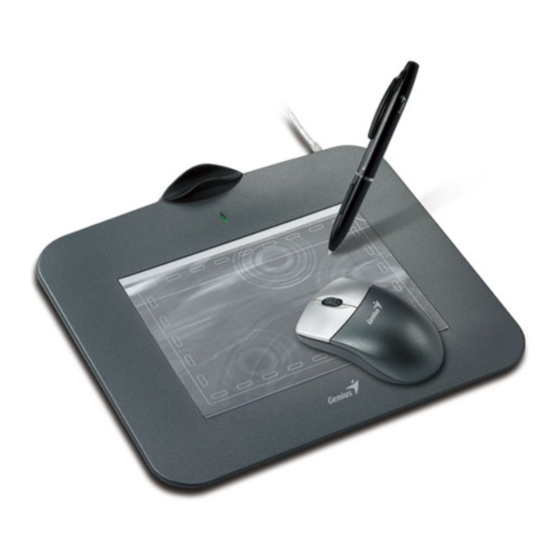

Genius G-Pen 4500 User Manual

Genius G-Pen 4500 User Manual

Pen tablet for windows 2000 / xp / vista

Advertisement

ENGLISH
Pen Tablet
User Manual
Windows 2000 / XP / Vista
PAGE 1/11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G-Pen 4500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Genius G-Pen 4500

  • Page 1 ENGLISH Pen Tablet User Manual Windows 2000 / XP / Vista PAGE 1/11...
  • Page 2 The function of the stylus pen lets you draw a line very thin, thick, light or dark (called “pressure sensitivity”). You also can write, sign, and annotate...
  • Page 3 This happens either when pen tip is hovering or placed within the working area above the tablet. 4. When you press a button on the pen barrel, or click on a mouse button, the LED will light up.
  • Page 4 For best results, when you double tap with the pen (equivalent to a double click with a mouse), try to keep the tip of the pen on the tablet’s surface, or at least try to lift the pen tip as fast as possible before the second tap.
  • Page 5 II. Pen tablet configuration You may configure the pen tablet by modifying the functions of the pen tip and the two barrel buttons, tap [Start] > [Settings] > [Control Panel], and double-tap the [Tablet Setting ] icon, or tap on the tablet icon ( ) in the system tray, usually located at the lower right corner of the screen.
  • Page 6 2.1.2 Mouse Command: According to the mouse function, you can select no action, left click, left double click, middle click, middle double click, right click, or right double click. 2.2 Double Click Time Move the Speed Slider toward “Slow”...
  • Page 7 ENGLISH Tap on the Full Area button to select the largest possibly working area. 3.2 Screen Ratio This sets the Pen Area to be the proportional screen size by reducing either the current width or height of the Pen Area. 3.3 Reserve Edges Tap on the Reserve Edges button to allocate space for the tablet’s hot cells.
  • Page 8 ENGLISH 4.1 Hot Pad Layout In Hot Pad Layout area, you can select any hot key to see the property by clicking the hot key in the blue map that appears in the digital tablet area. 4.2 Hot Edges There are four areas that you can setup up your hot key location around the tablet.
  • Page 9 ENGLISH Kind of Service – You can select some Internet service to start. For example, browsing website, newsgroup, send an E-mail, or using other Internet services. The exact program initiated (for example, the browser program) depends on system settings. Address – The URL address for the selected service. For example, the Website or e-mail addresses.
  • Page 10 Tap on the Clear button to clean the space up in the Pressure Test area. 5.3 Click Sensitivity By default, tapping with the pen tip is equivalent to a left click of a mouse. Move the slider in the sensitivity bar to adjust the response of the pen tip. Light means pen tip presses will be very quick with slight power, but the heavy function is opposite.
  • Page 11 3.2 Test your wireless stylus pen in the tablet working area, if it can work as a mouse, which means the hardware is OK. If it doesn't work, please change the battery with a new one.

This manual is also suitable for:

Mgp4500
