XL-PG31/XL-PG51/XL-PV310

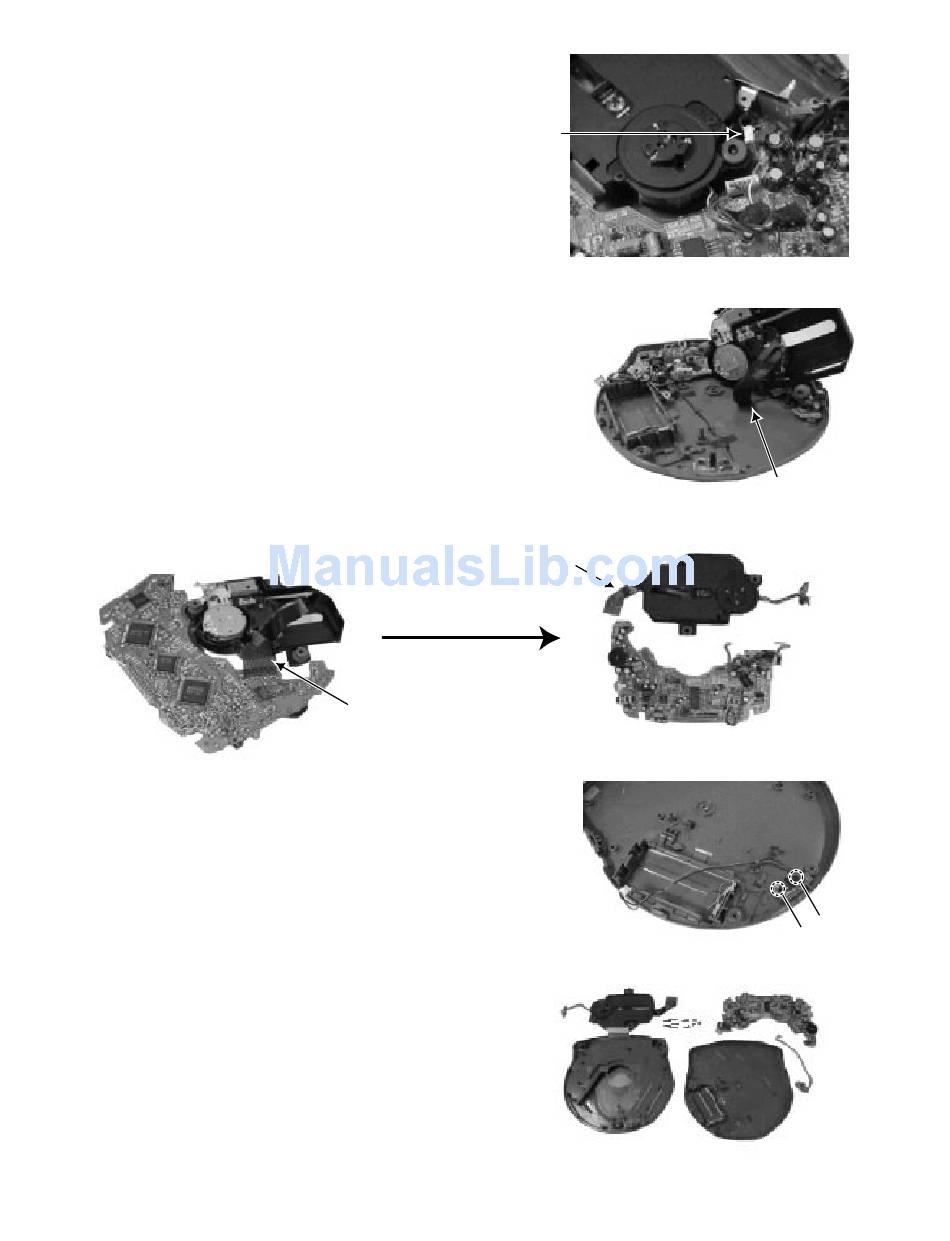

4). Disconnect the door switch G .
(See Fig. 6)
5). Diconnect the Header H of CD Mechanism.
(See Fig. 7)
6). Diconnect FCC cable H from PC board.
(See Fig. 8 & Fig.9)
Fig. 8
7). Remove 2 screws I on door swtich PC board.
(See Fig. 10)
8). Final disassembly condition.
(Fig. 11)
Caution: No serviceable parts are provided inside AC Adaptor. Do not open it.
1-6
H
G
Fig. 6
Fig. 7
H
Fig. 9
Fig. 10
Fig. 11
H
I
I
