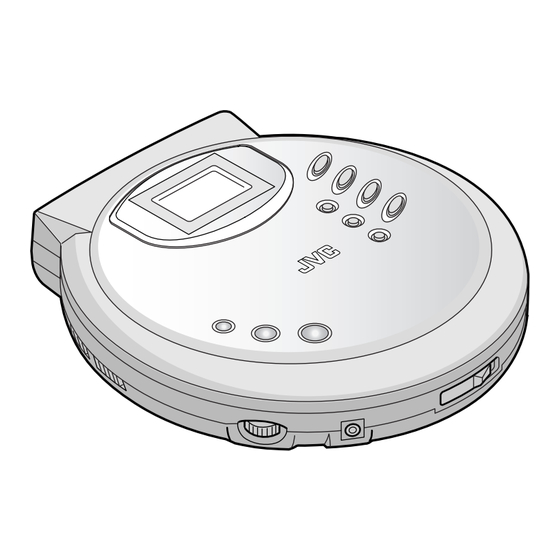

JVC XL-PG39BK Instructions

Using the Unit with Optional Accessories
Using the unit with a car audio system
XL-PV390SL comes with the car adaptor and car audio cassette adaptor.
• Car adaptor (CA-R456J or CA-R457J)
• Car audio cassette adaptor (CA-RC6)
To connect to a car audio system:
Connect the car audio cassette adaptor to the unit's headphones jack. (When doing this, keep the unit's
VOLUME control at a medium setting.)
Depending on the automobile used, noise may occur, and in that case, it is recommended that a KS-U32 noise filter (optional) be
used.
Note:
It may not be possible to use the unit with some types of car stereo owing to restrictions imposed by the construction of the car audio
cassette adaptor.
For further details, refer to the instructions of the part concerned.
Accidental Operation Prevention Function (Hold Mode)
This function causes the unit to ignore short, accidental button
presses.
The accidental operation prevention function
prevents the following:
• Powering on the unit accidentally (which can cause the batter-
HOLD ies to go dead).
OFF ON
• Play being cut off unexpectedly in the middle of a track.
To use the accidental operation prevention
function
• To prevent the unit from powering up accidentally, set the
HOLD switch to the ON position.
• To prevent the unit from unexpected operation during play,
set the HOLD switch to the ON position after you starts play-
ing the disc.
5
Maintenance Specifications
Maintaining the unit
Portable CD player
Wipe the unit with a soft cloth. Remove stubborn dirt using a Type : Compact disc player
cloth which has been dipped in water or soapy water and wrung Signal detection system : Non-contact optical pickup (semiconductor laser)
out, and then wipe dry.
Pickup system : 3 beam laser
• If you intend to use a chemically treated cleaning cloth, read Number of channels: : 2 channels (stereo)
its directions first.
Frequency response : 20 Hz to 20 000 Hz
• Do not use alcohol or paint thinners.
Wow & flutter : Unmeasurable
Output : Headphones (3.5 mm dia. stereo × 1)
Maintaining the lens 9 mW/ch at 10 % THD/16 Ω matching impedance (16 Ω to 1 kΩ)
Duration of battery : Approx. 3 hours when using two rechargeable batteries
Open the lid and clean the lens as shown in the figure.
Use a cotton swab to gently wipe off any finger-prints. (with Anti-Shock (BN-R1211J) charged for 10 hours,
Recommended product: Lens cleaner kit Protection EX OFF) Approx. 20 hours when using two alkaline batteries
(LR6)
: DC 3 V ("AA" size battery × 2)
Power requirements
DC 2.4 V (rechargeable battery × 2)
Lens
DC IN 4.5 V
Dimensions (W × H × D) : 134 mm × 30 mm × 144 mm (5-
(Excluding buttons and controls)
Air blower for
camera lens Mass : 237 g (0.53 lbs)
(without batteries)
AC adaptor
Input power source : AC 120 V, 60 Hz
Output voltage : DC 4.5 V, 600 mA
Design and specifications are subject to change without notice.
*
Lens
" "
When the unit is in the hold mode according to the HOLD
" lights up if the 6 is
switch setting in the main unit, "
Cautions
pressed.
To release the function
Move the HOLD switch back to OFF position.
Listening precautions
Note:
If the HOLD switch on the unit is set to the ON position, you
cannot turn on the unit.
EST. 1924
Do not play your headphones or earphones at a high volume.
Hearing experts advise against continuous extended play.
If you experience a ringing in your ears, reduce volume or discon-
tinue use.
Do not use while operating a motorized vehicle. It may create a
traffic hazard and is illegal in many areas.
You should use extreme caution or temporarily discontinue use
in potentially hazardous situations.
Even if your headphones or earphones are an open-air type de-
signed to let you hear outside sounds, don't turn up the volume
so high that you can't hear what's around you.
Sound can be deceiving. Over time your hearing "comfort level"
adapts to higher volumes of sound. So what sounds "normal" can
actually be loud and harmful to your hearing.
Guard against this by setting your equipment at a safe level BE-
FORE your hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and
clearly, and without distortion.
Once you have established a comfortable sound level:
• Set the dial and leave it there.
Rechargeable batteries
• Only the BN-R1211J battery can be recharged.
• If the power delivered by the batteries lasts for a very short
time after recharging, it means that the batteries' service life is
over. Do not use them any more.
• Recharging already charged batteries will shorten their service
life.
6
Troubleshooting Guide
Before requesting service for this unit, check the chart below for a possible cause of the problem
you are experiencing. Some simple checks or a minor adjustment on your part may eliminate the
problem and restore proper operation.
If you are in doubt about some of the check points, or if the remedies indicated in the chart do not
solve the problem, refer to the directory of Authorized Service Centers (enclosed with this unit) to
locate a convenient service center, or consult your dealer for instructions.
Check this
Problem
• Are the batteries charged?
Does not turn on.
• Is the AC adaptor (not included) securely connected?
• Is the HOLD switch set to HOLD position?
Cannot close cover.
Is the disc properly secured in place?
• Is the disc properly secured in place?
• Is there moisture condensation on the lens?
Cannot play discs.
5 / "× 1- 3 / "× 5- 11 / ")
16 16 16 (Wait for about an hour and then try again.)
Cannot hear music—too • Is the headphone plug inserted all the way?
noisy. • Is the plug dirty? (Wipe away dirt on the plug.)
Are you using the unit body too near a TV or tuner? (If the
TV picture is distorted.
Radio reception is noisy. TV or tuner is connected to a simple indoor antenna,
connect it to an outdoor antenna.)
"diSC" or "Er"is displayed • Is the disc damaged?
when a disc is in the • Is the disc playable on this player?
player. • Has the disc been inserted upside down?
• When recharging batteries for the first time or when they have
When purchasing rechargeable
not been used for a long period of time, the play time may be
batteries
shorter than usual. In a case like this, repeatedly recharge and
discharge the batteries. This will restore them to their regular
state.
As a safety precaution, the portable CD players made by JVC
• Do not allow any metal objects to touch the terminals of re-
have a construction designed to make it impossible to recharge or-
chargeable batteries since this may cause short-circuiting
dinary batteries.
which is dangerous.
To use rechargeable batteries, be absolutely sure to purchase the
• Do not peel off the plastic covering on the rechargeable batter-
rechargeable Ni-Cd batteries designed especially for this unit.
ies. Short-circuiting may occur which is dangerous.
Special rechargeable Ni-Cd batteries:
BN-R1211J (set of 2)
Dry cell batteries / rechargeable
For details, check with your dealer.
batteries
Special rechargeable
To prevent damage to the batteries and electrolyte leakage, heed batteries
the following points.
• Align the , and . polarities properly when inserting the bat-
teries.
• Do not mix different types or makers of batteries or old and
Ordinary dry cell
new batteries.
batteries/rechargeable
• Remove the batteries if you do not plan to use the unit for a
batteries
long period of time.
• Do not throw batteries into a fire, and do not short-circuit, dis-
assemble or subject them to excessive heat.
When purchasing AC adaptor
• Do not attempt to recharge dry cell batteries.
To use AC adaptor, be absolutely sure to purchase the AC adap-
Carrying dry cell batteries /
tor designed especially for this unit.
rechargeable batteries around
AC adaptor: AA-R4513
For details, check with your dealer.
When putting dry cell or rechargeable batteries in a pocket or
bag, ensure that no other metal objects such as a necklace are
When driving a car
placed together with them. Contact with metal may cause short-
circuiting which, in turn, may cause a fire.
In the interest of traffic safety, do not operate the unit while driv-
ing.
Concerning Compact Discs
PORTABLE CD PLAYER XL-PG39BK/XL-PG39RD/
Only compact discs bearing this mark can be used with this unit.
However, continued use of irregular shape CDs (heart-shape, octagonal, etc.) can damage
the unit.
CD-R and CD-RW discs recorded with the audio
For Customer Use:
CD format can be played back, though some may
Enter below the Model No. and Serial
not be played back because of the disc characteris-
No. which are located either on the rear,
tics or recording condition.
bottom or side of the player. Retain this
How to remove a disc from its case How to store the disc in
information for future reference.
its case
Model No.
Label side up
Serial No.
How to hold a disc
If the disk surface is dirty
Wipe it with a damp cloth and then wipe dry.
Wipe from the center toward the outer edge.
Play surface (shiny surface)
Supplied Accessories
Check the packing carton for these accessories.
Stereo headphones .......................................................................................................................... 1 pc.
If moisture has formed on a disc Handling precautions Car adaptor (CA-R456J or CA-R457J) (XL-PV390SL) .............................................................. 1 pc.
When moisture has formed because the • On the label side (the side with writing)
Car audio cassette adaptor (CA-RC6) (XL-PV390SL) .............................................................. 1 pc.
disc was brought suddenly into a warm Do not write anything using a pencil,
room from a cold environment, wipe off
ball-point pen, etc. Do not use adhesive
the moisture using a soft dry cloth.
paper or labels.
When storing discs • On the disc (shiny) side
Thank you for purchasing this JVC product. Please read these instructions carefully before starting
Avoid locations which are Handle this side carefully to keep it free
operation to be sure to obtain optimum performance and a longer service life from the unit.
from fingerprints or scratches. Do not
• Exposed to direct sunlight.
use record cleaners, solvents, etc.
• Susceptible to high levels of humidity or
• Do not attach labels or stickers to CDs.
dust.
• Directly exposed to heat from a heating Do not use CDs with exposed adhesive
appliance. from tape or left over peeled off stickers.
• Do not use scratch-proof protectors or
• On top of a car dashboard or near the
covers other than those specified for use
rear window.
with this unit.
Precautions
Before using this unit, be sure to read the applicable items of the
Maintenance
operating instructions and these safety-suggestions carefully.
Afterwards keep them handy for future reference. Take special
care to follow the warnings indicated on the unit itself as well as
(See page 5 for details.)
in the operating instructions.
Clean the cabinet, panel and controls with a soft cloth lightly
moistened with mild detergent solution.
Safety
Do not use any type of abrasive pad, scouring powder or solvent
such as alcohol or benzine.
1. Care of AC adaptor (not included) - The cord of the AC adap-
Service
tor should be routed so that they are not likely to be walked on
or pinched by items placed upon or against them. Never take
hold of the AC adaptor if your hand is wet, and always grasp
1. Damage Requiring Service - The unit should be serviced by
the plug when connecting or disconnecting it.
qualified service personnel when:
(a) The AC adaptor is damaged; or
2. Disconnect when not in use - When not in use, be sure to
(b) Objects have fallen or liquid has been spilled into the unit; or
disconnect the AC adaptor (not included) from the AC power
(c) The unit has been exposed to rain; or
outlet.
(d) The unit does not appear to operate normally or exhibits a
marked change in performance; or
3. Batteries - If the unit is not used for a long period of time or is
(e) The unit has been dropped, or the enclosure damaged.
used only from an AC power source, remove all the batteries to
prevent potential damage due to battery leakage. Do not mix
(old and new ) batteries or different types of batteries. WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
Installation
NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
I Environment
CAUTION!
1. Condensation - Moisture may form on the lens in the follow-
THIS PRODUCT UTILIZES A LASER.
ing conditions...
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE
• immediately after a heater has been turned on.
OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
• in a steamy or very humid room.
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
• when the unit is suddenly moved from a cold environment
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
to a warm one. If moisture forms inside this unit, it may not
REFER SERVICING TO QUALIFIED PERSONNEL.
operate properly. To correct this problem wait about one
hour for the moisture to evaporate.
1. CLASS 1 LASER PRODUCT
I Placement
2. DANGER: Invisible laser radiation when open and in-
1. Foreign Material - Care should be taken so that objects do not terlock failed or defeated. Avoid direct exposure to
fall into and liquids are not spilled into the unit. Do not subject
beam.
this unit to excessive smoke, dust, mechanical vibration, or
3. CAUTION: Do not open the top cover. There are no
shock.
user serviceable parts inside the unit; leave all servic-
2. Magnetism - The unit should be situated away from equip-
ing to qualitied service personnel.
ment or devices that generate strong magnetic fields.
3. Stacking - Do not place any objects on top of the unit.
0103SKMCREORI VICTOR COMPANY OF JAPAN, LIMITED
1 EN ©2003 VICTOR COMPANY OF JAPAN, LIMITED
XL-PV390SL
INSTRUCTIONS
Use numbers in parentheses when asking for replacement parts.
THE FOLLOWING NOTICES ARE APPLIED ONLY FOR U.S.A.:
POWERED BY NICKEL-CADMIUM BATTERY.
MUST BE RECYCLED OR DISPOSED OF PROPERLY.
ATTENTION:
The product that you have purchased is powered by a re-
chargeable battery. The battery is recyclable. At the end of
it's useful life, under various state and local laws, it may be
illegal to dispose of this battery into the municipal waste
stream.
Check with your local solid waste officials for details in
your area for recycling options or proper disposal.
Ni-Cd
CAUTION!
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio fre-
quency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to ra-
dio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or tele-
vision reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to cor-
rect the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and re-
ceiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
Any unauthorized changes or modifications to this equip-
ment would void the user's authority to operate this device.
LVT0978-008A [J]
