Disassembly Method
Removing the cabinet

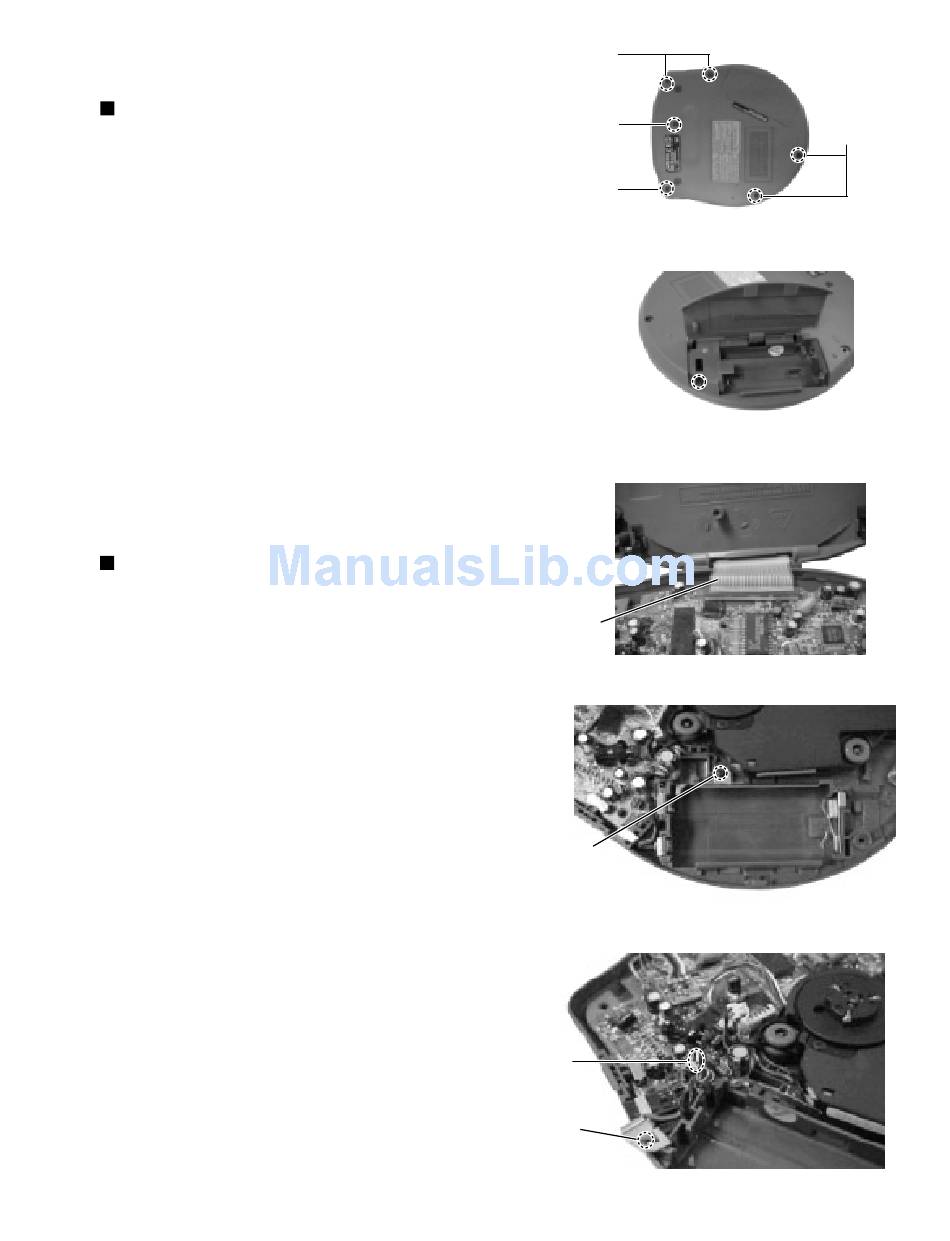

1). Remove 6 screws A from bottom cabinet.
(See Fig.1)
2). Remove 1 screw B from battery compartment.
(See Fig.2)
3). The bottom cabinet comes off.
Remove main parts
1). Disconnect the membrane C.
(See Fig.3)
Caution: Pay attention not damage the membrane C
during disconnection.
2). Remove the screw D on rechargeable battery plate.
(See Fig.4)
3). Remove "+" E battery plate and "-" F battery plate.
(See Fig.5)
XL-PG31/XL-PG51/XL-PV310
A
A
A
Fig.1
B
Fig.2
C
Fig.3
D
Fig.4
F
E
Fig.5
A
1-5
