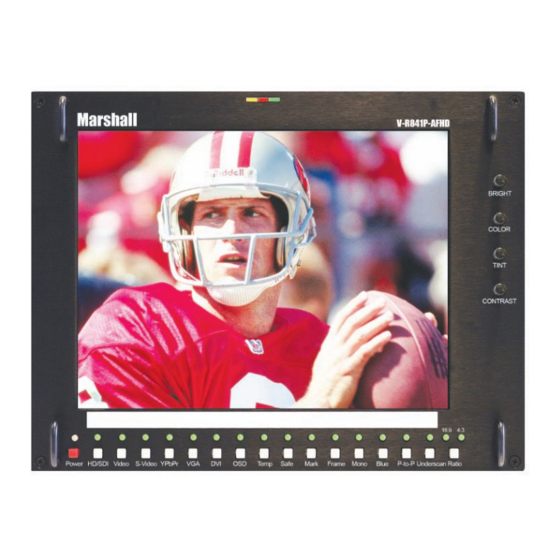

Marshall Amplification V-R841P-AFHD User Manual

Safe Area Overlay
A shaded border is placed onto the edge of image indicating a user selected area deemed to be safe for graphic and other
image placement. Safe Area overlays are available that indicate 80%, 88%, 90%, and 93% of the displayed image. The safe
area displays for the selected screen aspect.
Center Mark
A cross hair cursor is placed on the middle of the screen. The lines of the cross hair consist of a center white element that is
4 pixels wide, surrounded by a black border on each side that is 2 pixels wide. Use of black and white for the Center Mark
function allows the viewer to see screen center in all ranges of color for the screen image.
OSD
Use SELECT to enable the On Screen Display for input and function status.
When disabled, the OSD will remain on for 8 seconds.
Warranty
12
Marshall Electronics warranties to the first consumer, that this V-R841P-AFHD 8.4-inch LCD monitor mounted monitor set will, under
normal use, be free from defects in workmanship and materials, when received in its original container, for a period of one year from the
purchase date.
This warranty is extended to the purchasing end user only and proof of purchase is necessary to honor the warranty. If there is no proof
of purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above. Therefore,
labor and parts may be charged to you.
This warranty does not apply to product exterior and cosmetics. Misuse, abnormal service or handling, improper alterations or modifications
in design or construction, voids this warranty. No sales personnel of the seller, nor any other person is authorized to make any warranties
other than those described above, or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period
described above.
An extra note about LCD displays: It is considered normal for a minimal amount of pixels, not to exceed three, to fail on the periphery of
the display active viewing area. Marshall Electronics has the option to reserve service for display pixel failure if deemed unobtrusive to
effective use of the monitor by our technicians.
Due to constant effort to improve products and product features, specifications may change without notice.
8
Marshall Electronics
V-R841P-AFHD Users Guide V-R841P-AFHD

Users Guide

Video Screen Formats and Frame Rates
Switch Settings, Indicators and Controls
1910 East Maple Ave.
El Segundo, CA 90245
Tel.: 800-800-6608 • 310-333-0606
Fax: 310-333-0688
www.LCDRacks.com
Email: sales@lcdracks.com
1
Product Overview
Features 2
3
Specifications 4
Mechanical Specifications 5
Operational Setup
6
Connectors
7
Faceplate Cleaning 8
9
Optional Accessories
10
11
Menu Functions
12
Warranty
