Marshall Amplification V-R70DP User Manual

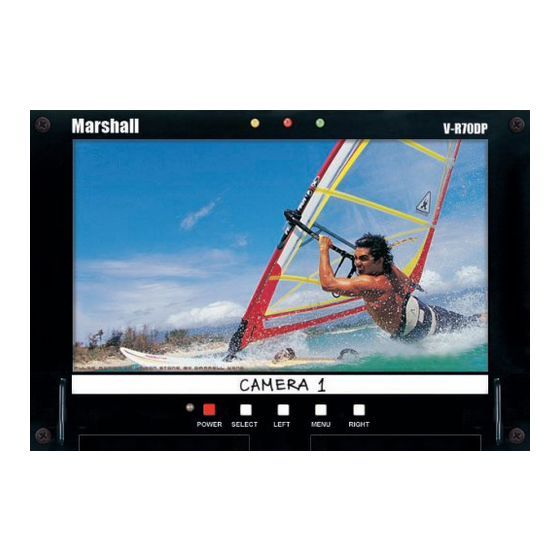

Switch Settings, Adjustments and Indicators

10
Power On/Off switch
To activate - hold down for 3 seconds
Illuminates red when system power is present
Illuminates Green when monitor is ON
Select Button. Use to select active input source.
This function will search until an active input is found.
Selected source and system format will be displayed on screen
for 3 seconds
Menu Selections
Note: Menu will automatically exit 3 seconds after any selection
Note: Menu activation requires a video signal on any of the inputs
Use left and right buttons to adjust on screen image brightness
Use left and right buttons to adjust on screen image contrast
Use left and right buttons to adjust on screen image color intensity
Use left and right buttons to adjust on screen image color phase/tint
Use left and right buttons to adjust display backlight intensity
16:9 Aspect
Use left and right buttons to activate blue screen
for adjustment using SMPTE color bars
Use right button to reset to factory conditions

Warranty

11
Marshall Electronics warranties to the first consumer, that this V-R70DP portable monitor will, under normal use, be free from defects in
workmanship and materials, when received in its original container, for a period of one year from the purchase date.
This warranty is extended to the first consumer only and proof of purchase is necessary to honor the warranty. If there is no proof of pur-
chase provided with a warranty claim, Marshall Electronics reserves the right, not to honor the warranty set forth above. Therefore, labor and
parts may be charged to you.
This warranty does not apply to product exterior and cosmetics. Misuse, abnormal service or handling, improper alterations or modifications
in design or construction, voids this warranty. No sales personnel of the seller, nor any other person is authorized to make any warranties
other than those described above, or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period
described above.
Due to constant effort to improve products and product features, specifications may change without notice.
Tally Indicators
Illuminate when active
Dry Erase Label
Menu and Navigation Buttons
Use to step though and select
screen adjustments/settings
Use left and right buttons
to adjust screen aspect
4:3 Aspect
Marshall Electronics
1910 East Maple Ave.
El Segundo, CA 90245
Tel.: 800-800-6608 • 310-333-0606
Fax: 310-333-0688
www.LCDRacks.com
Email: sales@lcdracks.com
V-R70DP V-R70DP Users Guide Users Guide
1
Product Overview
2
Features
3
Standard Accessories
4
Optional Accessories
5
Electrical Specifications
Mechanical Specifications 6
7
Faceplate Cleaning
Operational Setup 8
Input Connectors 9
Switch Settings, Adjustments and Indicators 10
Warranty 11
