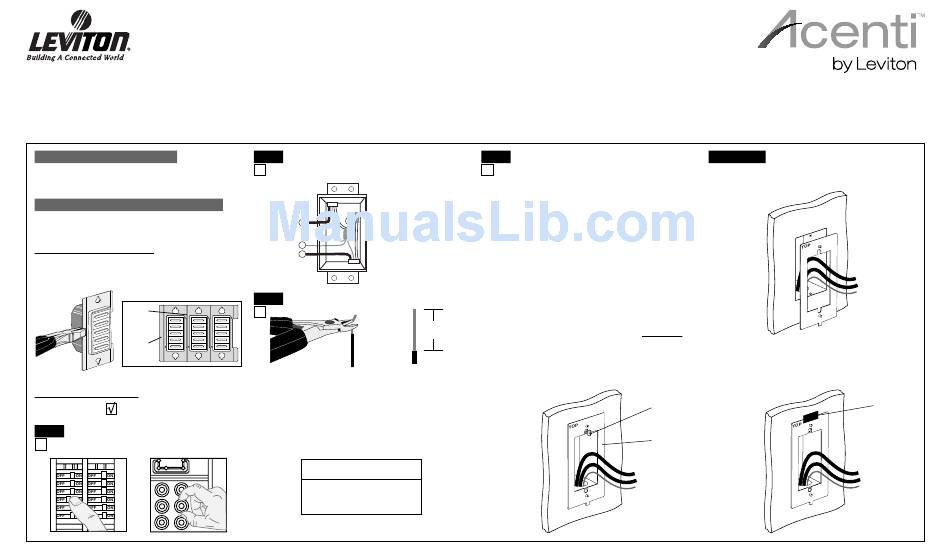

Leviton ACT60 Installation Instructions

DI-000-ACT60-00A-X0

WARNINGS AND CAUTIONS:

• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult a qualifi ed electrician.
• Use this device only with copper or copper clad wire. With aluminum wire use only devices marked CO/ALR or CU/AL.

Tools needed to install your Timer:

Slotted/Phillips Screwdriver Electrical Tape
Pliers Pencil
Cutters Ruler
Installing Timer by itself or with other devices:
If installing Timer in a single device application, proceed with the
INSTALLING YOUR TIMER section. If installing Timer in a multi-device
application, proceed as follows:

MULTI-DEVICE APPLICATION:

NOTE: You only need to remove side sections if installing with other
timers/dimmers or if it does not fi t in wall box – not when installing with
mechanical switches.
Remove
all inner
side
sections
Do not
remove
outer
side
sections
Bend back and
forth to remove
side section

INSTALLING YOUR TIMER

NOTE: Use check boxes when Steps are completed.
WARNING:
TO AVOID FIRE, SHOCK, OR DEATH; TURN
Step 1
OFF POWER at circuit breaker or fuse and test that power is
off before wiring!
Electronic Timer
(
10, 20, 30, 60 minutes)
Cat No. ACT6Ø (Lighted)
1000W Incandescent – 20A-120VAC, 60Hz Inductive
1 hp-120VAC, 60Hz-UL – 3/4 hp-120VAC, 60Hz-CSA

INSTALLATION INSTRUCTIONS

Identifying your wiring application (most common):

Step 2
NOTE: If wiring in the wall box does not resemble this
confi guration, consult a qualifi ed electrician.
Single Pole
2
1
1. Line (Hot)
2. Neutral
3. Ground
3
4. Load
4

Preparing and connecting wires:

Step 3
5/8"
(1.6 cm)
Cut
(if necessary)
Strip Gage
(measure bare wire here)
• Pull off pre-cut insulation from timer leads.
• Make sure the ends of the wires from the wall box are
straight (cut if necessary).
• Remove 5/8" (1.6 cm) of insulation from each wire in the
wall box as shown.
For non-standard wiring applications, refer
to Wire Nut and Conductor Size Chart
WIRE NUT / # OF COND.
COMBINATION CHART
1 - #12 w/ 1 to 3 #14, #16 or #18
2 - #12 w/ 1 or 2 #16 or #18
1 - #14 w/ 1 to 4 #16 or #18
2 - #14 w/ 1 to 3 #16 or #18

Installing your Alignment Plate:

Step 4

Important Notice for Installer

To achieve proper aesthetic installation of the Acenti products,
the wall surface surrounding the wall box opening must be fairly
fl at and free of irregularities. The wall box must be level and
recessed or fl ush to the wall surface. The Acenti installation
system allows for adjustments that will correct minor fl aws that
may be present in the installation area.
This device must be installed with the Acenti TM Alignment Plate.
The Alignment Plate is packaged with the Acenti TM Wallplate,
which is sold separately from this device.
The Alignment Plate will function properly only if it is mounted to
a fl at wall surface as described above.
• Leviton recommends to temporarily position the Alignment
Plate prior to wiring the device. If the wall box wires extend at
least 6 inches out of the wall box, it is also possible to install
the Alignment Plate after the device has been wired (refer to
Wallplate instruction sheet).
• The Alignment Plate must be installed with the tab towards
the bottom.
• Leviton recommends the following methods to temporarily
hold the Alignment Plate – use of device mounting screw,
use of wall box wires, or use of electrical tape (refer to the
following fi gures):
Alignment Plate Held
By Mounting Screw
A
Mounting
Screw
Alignment
Plate
Step 4 cont'd
Alignment Plate Held
By Wires
B
Alignment Plate Held
By Tape
C
Electrical
Tape
