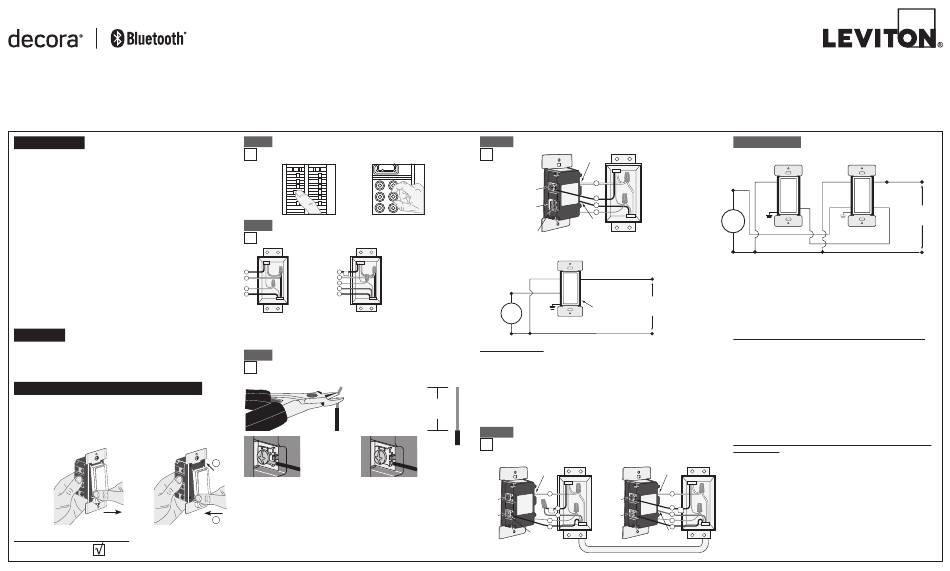

Leviton decora Installation Instructions

WARNINGS AND CAUTIONS
• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER at circuit breaker or fuse and test that power is off before wiring!
• TO AVOID FIRE, PERSONAL INJURY OR PROPERTY DAMAGE, DO NOT install to control a receptacle.
• To be installed and/or used in accordance with electrical codes and regulations.
• If you are unsure about any part of these instructions, consult an electrician.
• The Decora DDS15 is not compatible with standard 3-way or 4-way switches. It must be used with the Decora
®
multi-location dimming.
INTRODUCTION
The next generation of lighting control technology is here with
the new Decora ® Digital Switch with Bluetooth ® Technology. This
innovative device works using the Leviton Decora ® Digital Dimmer &
Timer app that can be easily downloaded to smartphones or tablets
and paired to the Leviton Switch using Bluetooth technology.
®
Decora ® Digital Devices give users point-to-point local control to
automate lighting, bridging the gap between standard switches and
whole-house automation systems.
Enjoy the combined functions of a standard wall switch and
a countdown or programmable timer switch in one attractive
device. Use of the app allows greater flexibility for accurate timer
functionality and makes pushing buttons for timed events a tedious
chore of the past.
The Leviton Decora ® Digital Dimmer & Timer app can be easily
downloaded to mobile devices and is compatible with Android and
iOS smartphones or tablets. The app is easy to use with simple,
intuitive on-screen menu options to independently control Decora
Digital dimmers and switches throughout the home.
Decora ® Digital Devices are ideal for living rooms, bedrooms,
kitchens, dining rooms, home offices, outdoor lighting or anywhere
full control of lighting is desired.
FEATURES
• Switch ON/OFF
• ON/OFF LED Indicator
• Three way communication
• Ease of installation – No new wiring
TOOLS NEEDED TO INSTALL YOUR SWITCH
Slotted/Phillips Screwdriver Electrical Tape Pliers
Pencil Cutters Ruler
Changing the color of your Switch:
Your switch includes three color options. The switch ships with the White
frame attached. To change color of frame, proceed as follows:
Push in Insert top
sides at tabs and
bottom tabs press in
and pull bottom
outward to tabs to
release attach
INSTALLING YOUR SWITCH
NOTE: Use check boxes when Steps are completed.
Single Pole (One location) or 3-Way (Multi-location)
Universal Electronic Switch and Program Timer
Cat. No. DDS15-BD, (Lighted) - 120/277VAC, 60Hz
1800W Incandescent (120V) – 15A Fluorescent (120V) – 6A Fluorescent (277V)
5A, 600W LED/CFL (120V) – 15A Resistive (120V) – 1/2 HP Motor (120V)

INSTALLATION INSTRUCTIONS

Digital DD0SR-DL or DD0SR-10 remote for
®
WARNING: TO AVOID FIRE SHOCK OR DEATH; TURN
Step 1
OFF POWER at circuit breaker or fuse and test that power is off
before wiring!
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
Identifying your wiring application (most common):
Step 2
NOTE: If the wiring in your wall box does not resemble any of
these configurations, consult an electrician.
Single Pole 3-Way
1. Line (Hot) 1. Line or Load (see
2. Neutral
1 1
3. Ground 2. Neutral
2
2
3
4. Load 3. Ground
®
3 4
4. First Traveler – note color
5
4
5. Second Traveler – note
IMPORTANT : For 3-Way applications, note that one of the screw terminals
from the old switch being removed will usually be a different color (Black)
or labeled Common. Tag that wire with electrical tape and identify as the
common (Line or Load) in both the switch wall box and remote wall box.
Preparing and connecting wires:
Step 3
This switch can be wired using side wire terminal screws or
through backwire openings. Choose appropriate wire stripping
specifications accordingly.
Strip Gage
Cut (measure bare
wire here)
(if necessary)
1
Side Wire Connection Back Wire Connection
Side wire terminals accept #14-12 Back wire openings accept #14-12
AWG solid copper wire only. AWG solid copper wire only.
• Make sure that the ends of the wires from the wall box are
2 straight (cut if necessary).
• Remove insulation from each wire in the wall box as shown.
• For Single-Pole Application, go to Step 4a.
• For 3-Way Coordinating Remote (no LED) Application, go to Step 4b.
• For 3-Way Matching Remote (with LED) Application, go to Step 4c.
WARNINGS AND CAUTIONS
• Use only (1) Decora Digital DDS15 Switch in a multi-location circuit with up to 9 coordinating remote switches (DD0SR-10)
or up to 4 matching remote switches (DD0SR-DL)
• Maximum wire length from dimmer to all installed remotes cannot exceed 300 ft (90m).
• Recommended minimum wall box depth is 2-3/4".
• Use this device with copper or copper clad wire only.
Single Pole Wiring Application:
Step 4a
Screw marked
White (WH)
Terminal
Screw marked
WH
BK
Black (BK)
RD
YL/ RD
Terminal
Screw marked
Yellow/Red
(YL/RD)
Screw marked
Terminal Label:
Use terminal for 3-way or more applications only.
For single-pole applications, DO NOT remove label.
Switch
important instruction)
WH
RD
Black
color
Green
Load
Ground
White
WIRING SWITCH:
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot wall box wire to terminal screw marked "BK".
• Load wall box wire to terminal screw marked "RD".
• Line Neutral wall box wire to terminal screw marked "WH".
• Switch terminal screw marked "YL/RD" should have Red insulation label affixed.
NOTE: If insulating label is not affixed to terminal screw marked "YL/RD", use
5/8"
electrical tape to cover.
(1.6 cm)
• Proceed to Step 5.
3-Way Wiring with DD0SR-10 Coordinating Remote
Step 4b
(no LED) Application:
Coordinating Remote (no LED)
Neutral to Terminal
Screw marked
White (WH)
Terminal
Screw
2
marked
WH
Black (BK) BK
1
RD
YL/ RD
Terminal 4
Screw
3
marked
5
Yellow/Red
(YL/RD) Terminal
Screw marked
Yellow/Red (YL/RD)
Step 4b cont'd
Terminal
Coordinating Remote (no LED)
2
1
Black
4
(unused)
3
Load
Terminal
Ground
Red (RD)
White
NOTE: The switch must be installed in a wall box that has a Line
Hot (Black)
BK
Hot connection. The coordinating remote must be installed in a wall
box with a Load connection and a Neutral connection. A Neutral
wire to the coordinating remote needs to be added as shown. If
YL/RD
Line
you are unsure about any part of these instructions, consult an
120/277VAC,
Use terminal for
electrician.
60Hz
3-way or more
applications only. NOTE: Maximum wire length from switch to all installed remotes
For single-pole
applications, cannot exceed 300 ft (90 m).
DO NOT remove label.
WIRING SWITCH (wall box with line hot connection):
Neutral (White)
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot (common) wall box wire identified (tagged) when
removing old switch to terminal screw marked "BK".
• First Traveler wall box wire to terminal screw marked "RD"
(note wire color).
• Remove Red insulating label from terminal screw marked
"YL/RD".
• Second Traveler wall box wire to terminal screw marked
"YL/RD" (note wire color). This traveler from the switch must go
to the terminal screw on the remote marked "YL/RD".
• Line Neutral wall box wire to terminal screw marked "WH".
WIRING COORDINATING REMOTE (wall box with load
connection):
Switch
Connect wires per WIRING DIAGRAM as follows:
Terminal
NOTE: "BK" and "RD" terminals on coordinating remote are
Screw marked
White (WH)
unused. Tighten both screws.
• Green or bare copper wire in wall box to Green terminal screw.
Terminal
• Load wall box wire identified (tagged) when removing old switch
Screw
2
marked
to First Traveler (note color as above).
WH
Black (BK) BK
• Second Traveler wall box wire (note color as above) to terminal
1
screw marked "YL/RD". This traveler from the remote must go to
RD
YL/ RD 4
Terminal
the terminal screw on the switch marked "YL/RD".
Screw
3
marked
5 • Remove White insulating label from terminal screw marked
Yellow/Red
Terminal
(YL/RD) "WH".
Screw marked
Red (RD) • Line Neutral wall box wire to terminal screw marked "WH".
• Proceed to Step 5.
DI-000-DDS15-02A
Switch
Hot (Black)
WH BK WH BK
(unused)
RD
RD YL/RD
YL/RD
Line
120/277VAC
60Hz
Green Green
Ground
Neutral (White)
